12. Stereoscopic multichannel setup
12.4 Synchronous f rame sequential
About this mode

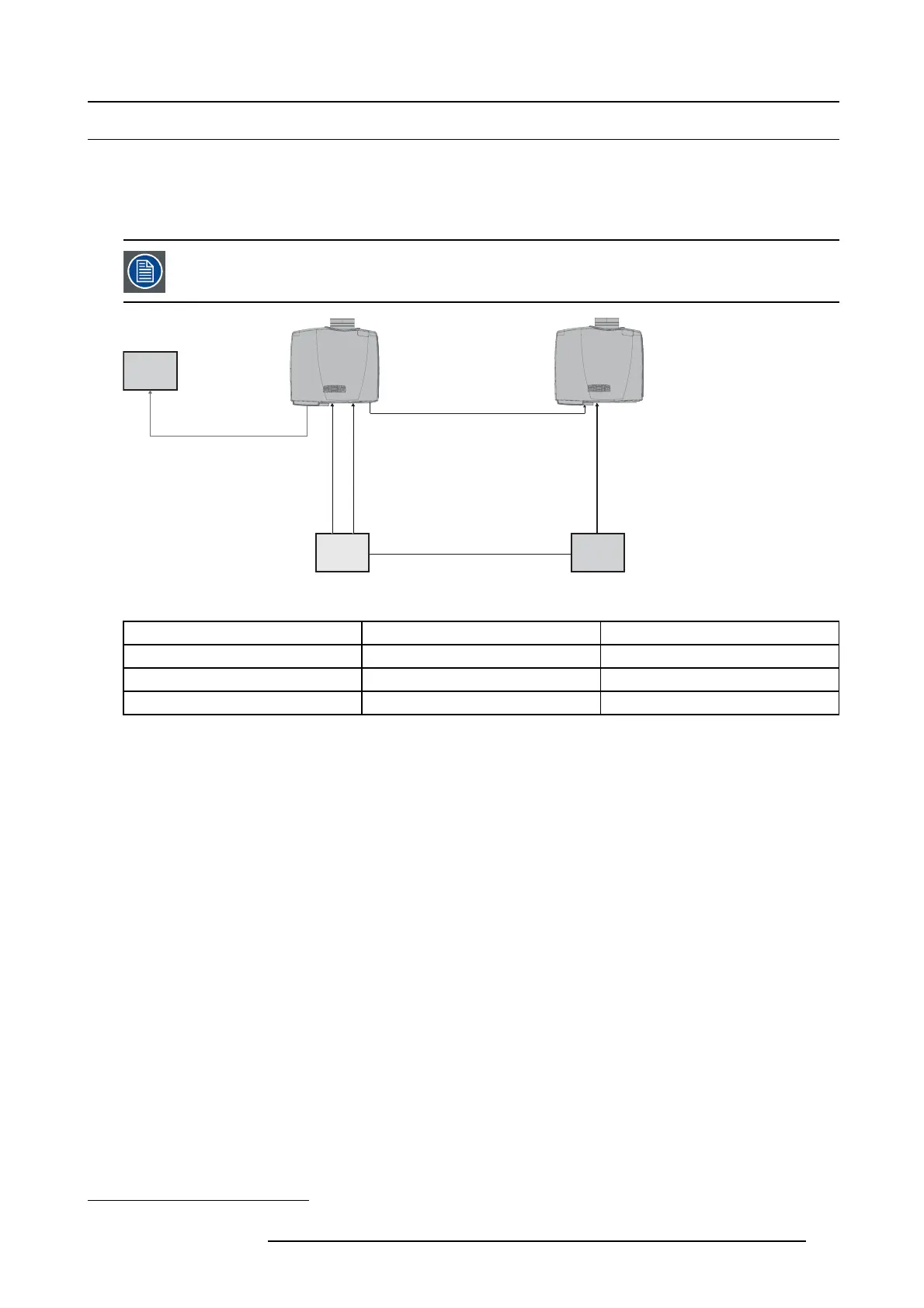

In this setup, the IG are synchronized and the 3D sync from the source is connected from the DIN connector on the IG to the SYNC
1 connec tor. This signal is then sent to the next projector in the setup out on the SYN C 2 connector. A t ypical synchronous fram e
sequential 3D setup is illustrated in image 12-2.
For this setup, any SYNC co nnector on the projector can be u sed for connections from the DIN connector on
the IG .
IG
IR
DP1
3D sync DP1
IG
sync
BNC
Image 12-2
The table below shows the recom m ended settings for synchronous fram e sequential 3D.
Setting Projector 1 Projector 2
3D Frame sequential Frame se quential
3D L/R sync sync Sync 1 Sync 1
Sync 2 Sync 1 Sync 1
7
7. The choice of SYNC 1 over SYNC 2 on the last projector in the sync chain is irrelevant, but setting it so is the recommended best practice.
601–0307–00 F50 25/02/2016 109
