Barco F50 - Asynchronous Side by Side

12. Stereoscopic multichannel setup
12.7 Asynchronous side by side
About
In asynchronous s ide-by-side 3D (single and dual head), the projector utilizes the SYNC connectors to distribute a system wide
display sync. This dis play sync is used by all projectors to perform frame rate conversion on the input signals if necessary. An extra

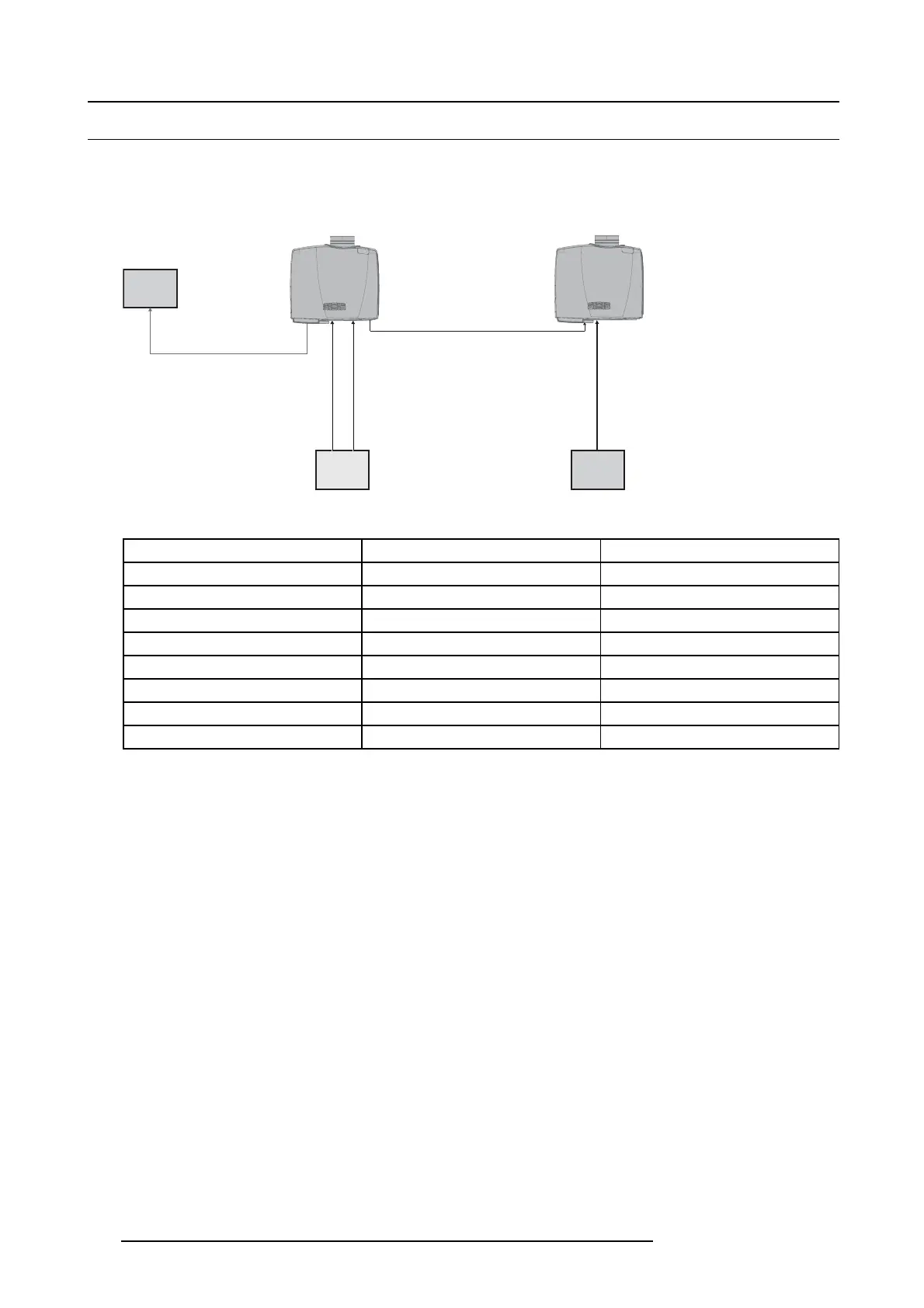

cable is connected between a SYNC connector on pro jector 1 and a S YNC connector on projector 2, as illustrated in image 12 -5 .
IG
IR
DP1
DP2 DP1
IG
BNC
DP2
Image 12-5
In this setup the projectors need the following settings to send/utilize the d isplay sync correctly:
Setting
Projector 1 Projector 2
3D Dual Head stereo Dual Head stereo
3D Dual head source 1 DP 1 DP 1
3D Dual head source 2 DP 2 DP 2
3D L/R sync N/A N/A
3D display syn c
Source Sync 1
Sync 1
Display sync Input
Sync 2 N/A Sync 1
Sync 3 Glass sync N/A
112 601–0307–00 F50 25/02/2016
