6. Input and communication
6.1 Local keypad
Keypad functions
7. Status Indicator
8. Up Arrow
6. Power
4. Down arrow
5. Right arrow
3. Left arrow
1. Back
2. Menu
9. OK

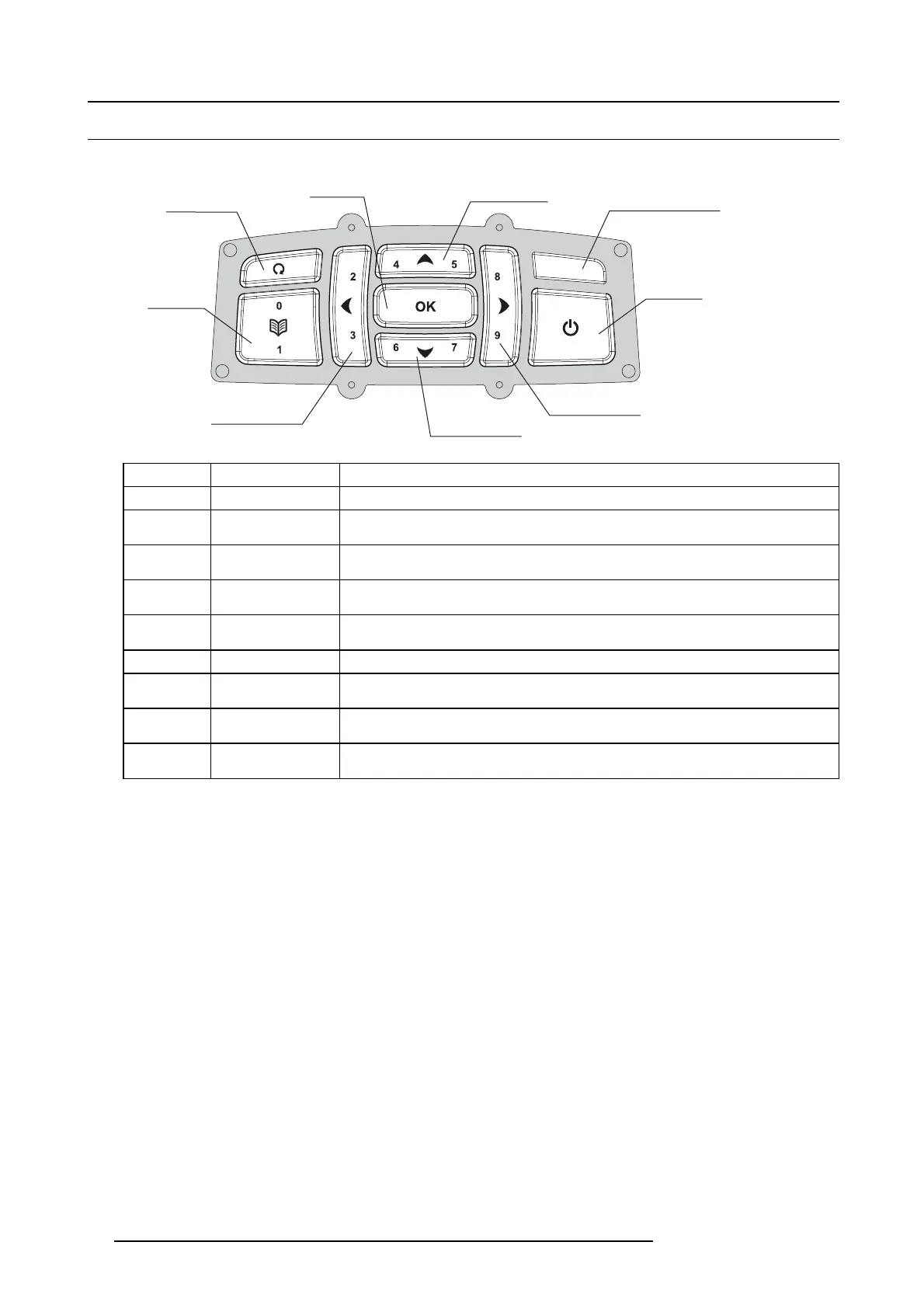

Image 6-1
Item No. Name Description
1 Back Return to previous menu alternative
2 Menu
Multi-use key. P ress to display or hide OSD . Can also be used for PIN numeric entry
(0, 1).
3
Left arrow Multi-use key. W ith Lens S hift active, used to m ove the lens to the left. With OSD active,
used to navigate selection left. Can also be used for PIN numeric entry (2, 3 ).
4 Down arrow
Multi-use key. W ith Lens Shift active, used to mov e the lens d own. W ith OSD ac tive,
used to navigate selection down. Ca n also be used for P IN num eric entry (6 , 7).
5
Right arrow
Multi-use key. W ith Lens Shift active, used to move the lens to the right. With OSD
active, used to navigate selection right. Can also be used for PIN numeric entry (8, 9).
6 Power
Press once to turn projector ON. Press twice to put projector in STANDBY mode.
7
Status indicator LED color bar that displays current projector s tatus. See "Status indicator light", page
47 for more information.
8 U p arrow
Multi-use key. With Lens Shift active, us ed to move the lens up. With OS D active, used
to navigate selection up. Can also be used for PIN num eric en try (4, 5).
9
OK Multi-use key. With OSD active, c onfirm s a selection. W ith OSD not a ctive, activates
Lens Shift function.
46 601–0307–00 F50 25/02/2016
