7. Advanced
The Edit mode is selected

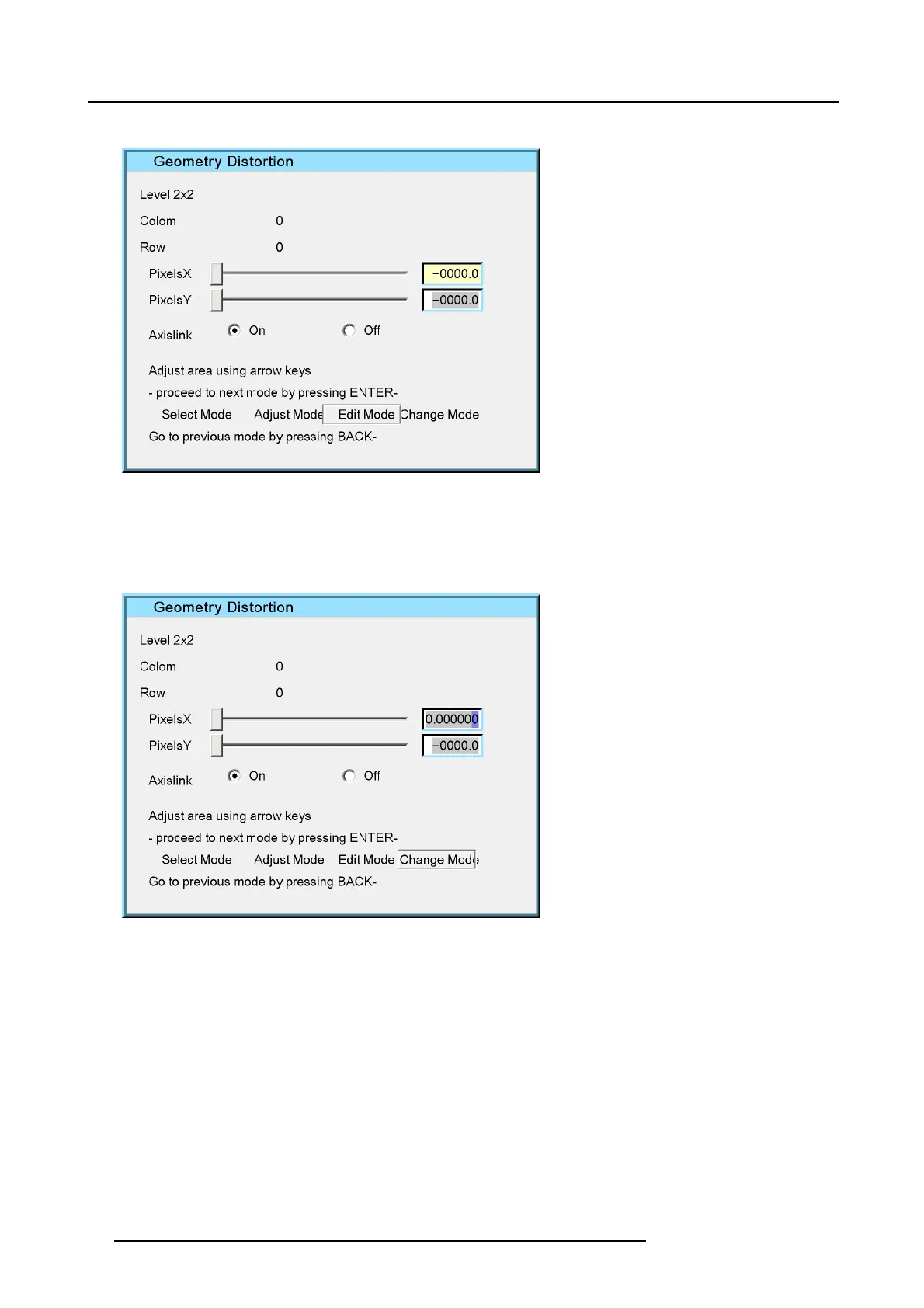

Image 7-76
2. Use ↑ and ↓ to select the PixelsX edit box
The PixelsX edit box is focused
3. Press ENTER
The PixelsX edit box is put in edit mode
Image 7-77
4. Use ← and → to select the digit and use ↑ and ↓ to increment/decrement the digit
Tip: One can also use the numeric digits to
fill in the desired value ?
The image is distorted along the X axis. Notice the unaffected regions.
7.6.6.5 Axis link
What is AxisLink ?
When AxisLink is set to On,thea
djustment coordinate system will coincide with the edges of the distorted image.
