7. Advanced
How to select an Edit Mode ?
1. When the Edit dialog box is displayed, the Select mode is selected by default.
2. To go to the next mode press ENTER.
3. To return to a previous mode use BACK
7.9.7.4.3 Creating/editing a soft edge
Description
In this example we will create an internal soft edge where we will adjust the left side zone ( displace one point along the x axis).
How to start up the edit dialog box ?

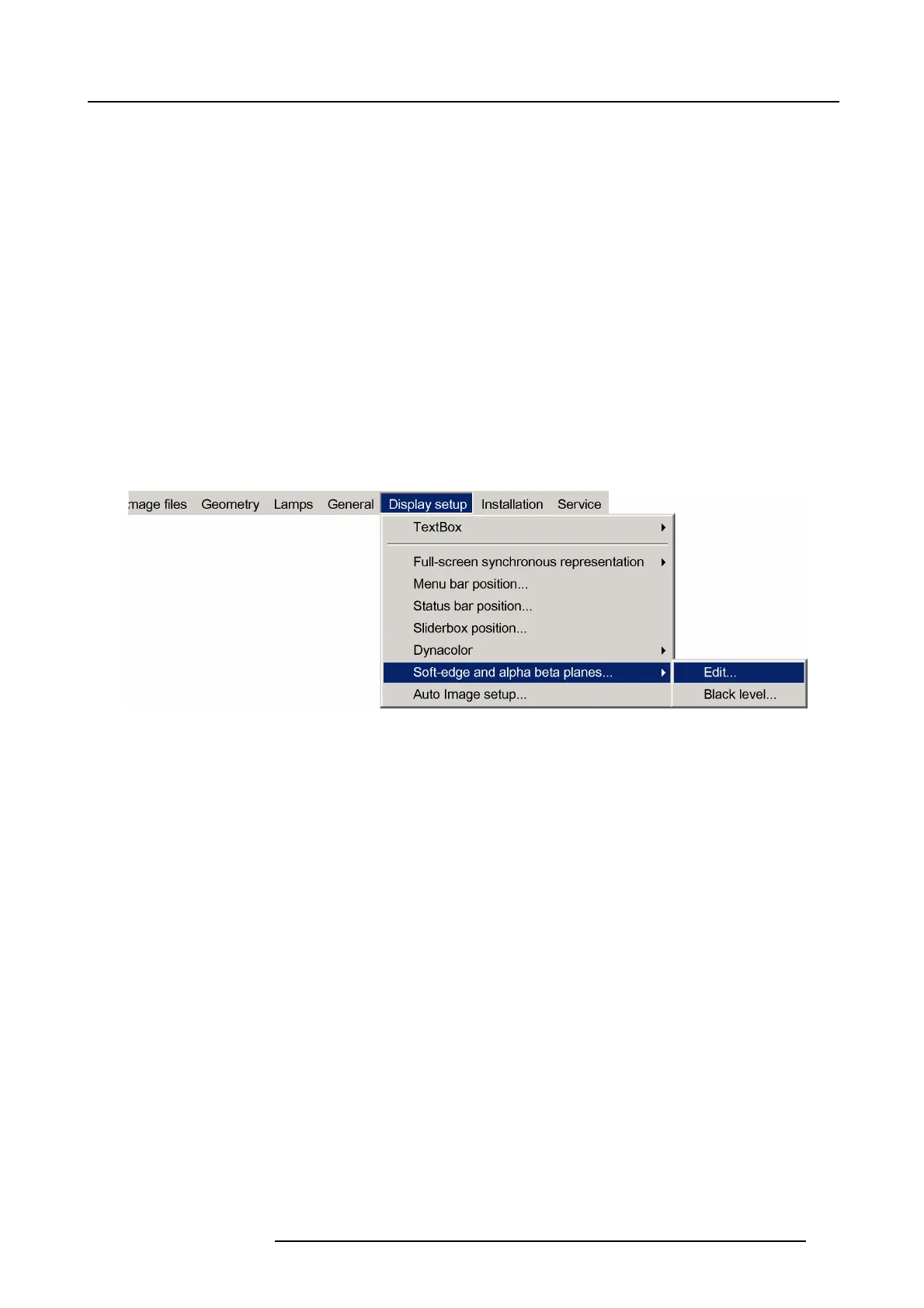

1. Press the MENU key to activate the Tool bar.
2. Push the cursor key ← or → to highlight Display setup
3. Push the ↓ key to pull down the menu.
4. Push ↓or ↑ to select Soft edge an d alpha beta planes
5. Push the → key to pull down the menu.
6. Push the cursor key ← or → to highlight Edit...
Image 7-151
7. Press ENTER
The soft edge dialog box will be displayed.
How to select the soft edge type ?
The internal soft edge type is selected by default
1. Push ↓or ↑ to select the Internal check box
R59770286 NW-12 07/09/2009
139
