Operation and Features
BASLER L304
kc 3-35
Draft

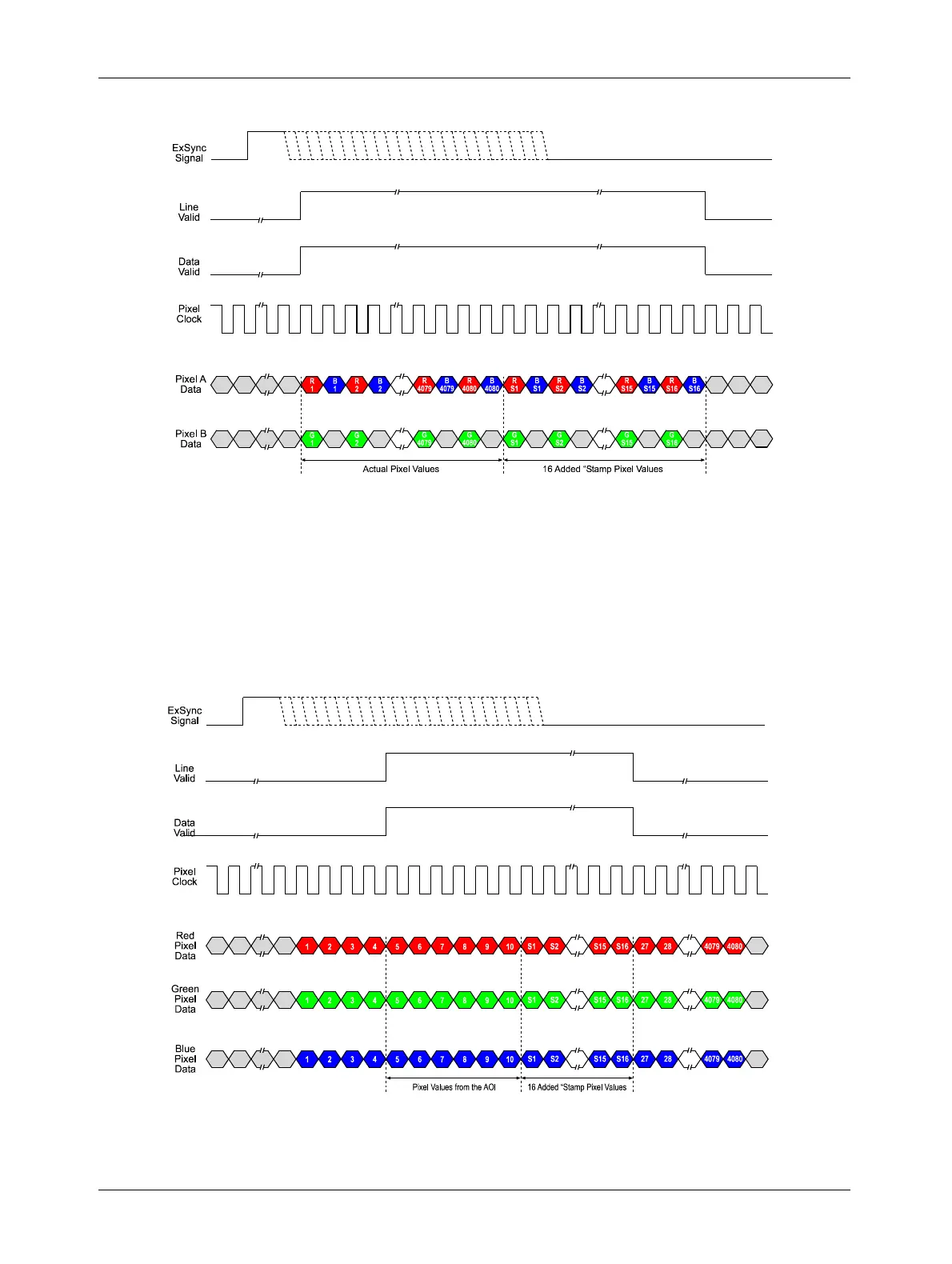

Figure 3-25: Stamp Pixel Transmission with 2 Tap 8 Bit or 2 Tap 10 Bit Output
If the stamp feature is used together with the AOI feature (see Section 3.7), the stamp pixels are
transmitted immediately after the last pixel in the AOI. The line valid and data valid signals will be
high while the pixels in the AOI and the stamp pixels are transmitted. Figure 3-26 illustrates how
the stamp pixels are transmitted when the AOI is set for a starting pixel of 5 and a length in pixels
of 6 and the camera is set for 3 tap 8 bit output mode. Figure 3-27 illustrates what you would see
if the camera is set for the same AOI and for 2 tap 8 bit or 2 tap 10 bit output mode.
Figure 3-26: Stamp Pixel Transmission with 3 Tap Output and an AOI
