Components
Operator Manual for the Baxter ExactaMix 2400 Compounder
53007410 Rev. C Page 3
The main module contains the moving parts of the compounder, including these parts:
• The valve actuators open and close as needed to allow the delivery of individual
ingredients. When the pump is paused, the valve actuators automatically close.
• The occlusion detector detects occlusions (blockages) in the tube between the source
containers and the detector.
• The bubble detector detects air bubbles as they pass through the tube over the
detector.
• The pump door allows access to the pump rotor.
• The pump rotor moves the fluid from the valve set to the destination bag.

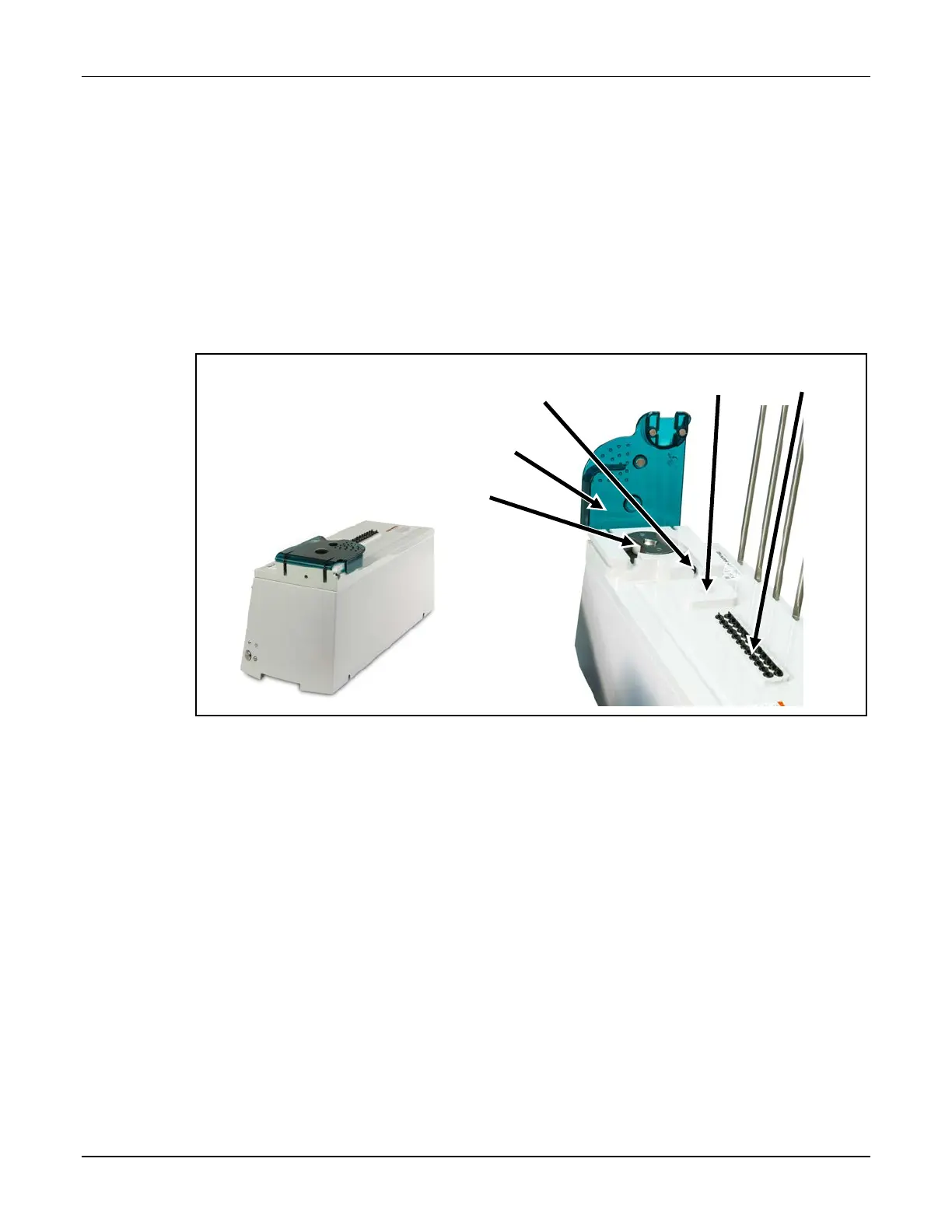

Main module, with close-up view of the top
Pump rotor
Bubble detector
Occlusion detector
Pump door
Valve actuators
To Next Page
