Description
22
7990087_030_03 – 2080492 – 2023-01-19
– two horizontally rotating and vertically adjustable light
heads [14]

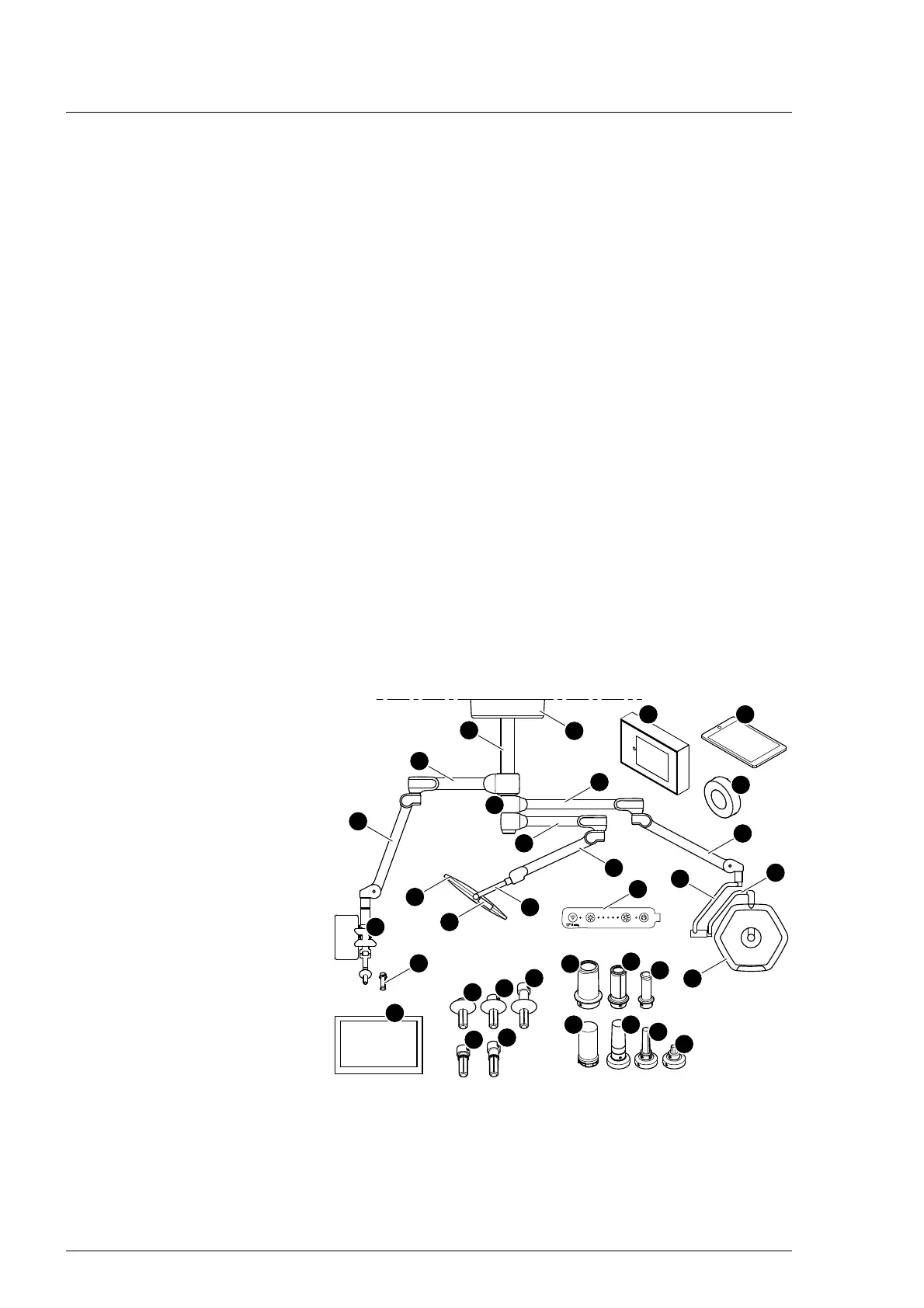

In the example, the iLED 7 Ceiling Trio surgical light system is
equipped with the following additional accessories of Baxter and
the following third-party products:
– an SLC handle adapter [17] or handle adapter [16]
– a TruVidia Wireless camera [18] or a handle adapter [16]
– a sterilizable handle [22] for the monitor mount [10]
– a Handle sleeve [34] handle adapter and a sterile disposable
handle/disposable sleeve for the monitor mount [10] (after
prior conversion by a qualified service technician)
– a sterilizable handle [22] for the TruVidia camera system [18] or
the handle adapter [16]
– a Handle sleeve [34] handle adapter and a sterile disposable
handle/disposable sleeve for the Adaption disposable handle
[16] handle adapter on the light head mount
– a sterilizable handle [22] for the SLC handle adapter [17] or the
handle adapter [16]
– a Handle sleeve [34] handle adapter and a sterile disposable
handle/disposable sleeve for the Adaption disposable handle
[16] handle adapter on the light head mount
– a medical flat screen [11] (product from a third-party
manufacturer)
– a Wall Control Panel [20]
–an RS232 interface [21]
– a Mobile Control 7,9 control module [19] (product from a
third-party manufacturer)
[1] Canopy
[2] Ceiling conduit
[3] Central axis
[4] Upper C boom
[5] Upper S boom
10
1
11
18
16
20
19
22
2
3
4
5
6
7
9
8
12
13
15
14
14
15
13
16
17
21
22
22
22
34
34
34
34
34
