baxter iLED 7 User Manual

Use
7990087_030_03 – 2080492 – 2023-01-19 43

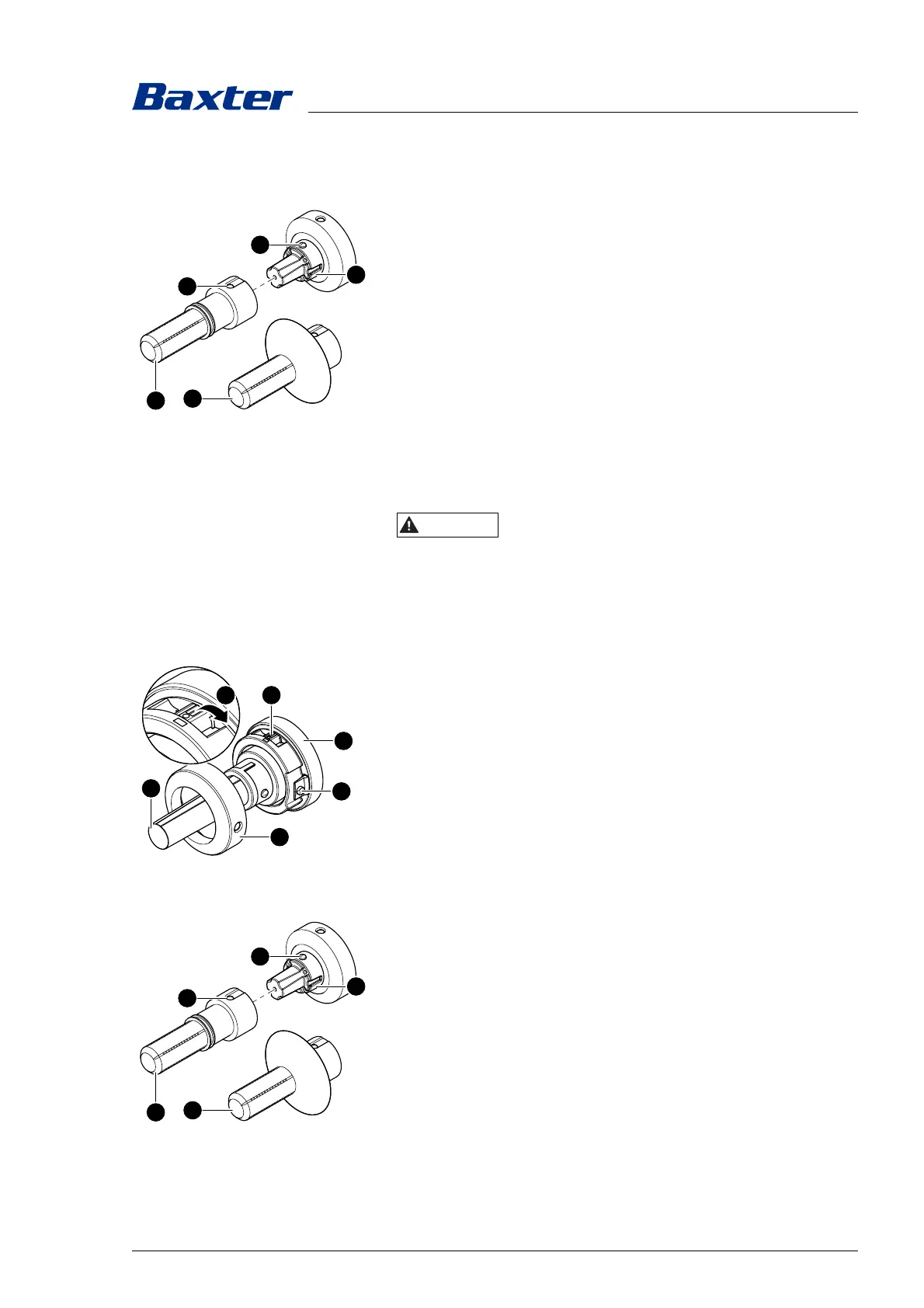

5.4.2 Handle sleeve flange/Handle sleeve ring
1. Attach the Adaption disposable handle handle adapter to the
mount (see Chapter 5.4.1).
2. Push the Handle sleeve flange or Handle sleeve ring [34]
handle adapter onto the Adaption disposable handle [16]
handle adapter. Ensure that the plastic catch [A] of the
Adaption disposable handle [16] handle adapter is correctly
engaged in the locking hole [B] on the Handle sleeve [34]
handle adapter.
5.5 Removing the handle adapter
5.5.1 Adaption disposable handle/Adaption Standard handle
CAUTION
Danger of short circuit
Liquid spilled onto the mount of the light head can cause a short
circuit and interrupt the power supply for the surgical light system.
• The mount of the light head must always be covered by a
camera or a handle adapter.
1. Remove the sterilizable handle from the handle adapter [16].
2. Press in the plastic catch [A] of the mount [B] and remove the
cover [C] from the handle adapter [16].
3. Support the lamp head.
4. Slide the locking device of the bayonet lock [D] downwards
into position [E] so that the three shut-off openings of the
base plate are released.
5. Pull the handle adapter [16] off the mount [B] of the lamp
head.
5.5.2 Handle sleeve flange/Handle sleeve ring
1. Remove the disposable handle/disposable sleeve from the
Handle sleeve [34] handle adapter.
2. Press in the plastic catch [A] on the Adaption disposable
handle [16] handle adapter and remove the Handle sleeve [34]
handle adapter from the Adaption disposable handle
handle adapter.
34
34
A
16
B
E
A
B
C
D
16
34
34
A
16
B
