baxter iLED 7 User Manual

Technical data
7990087_030_03 – 2080492 – 2023-01-19 79

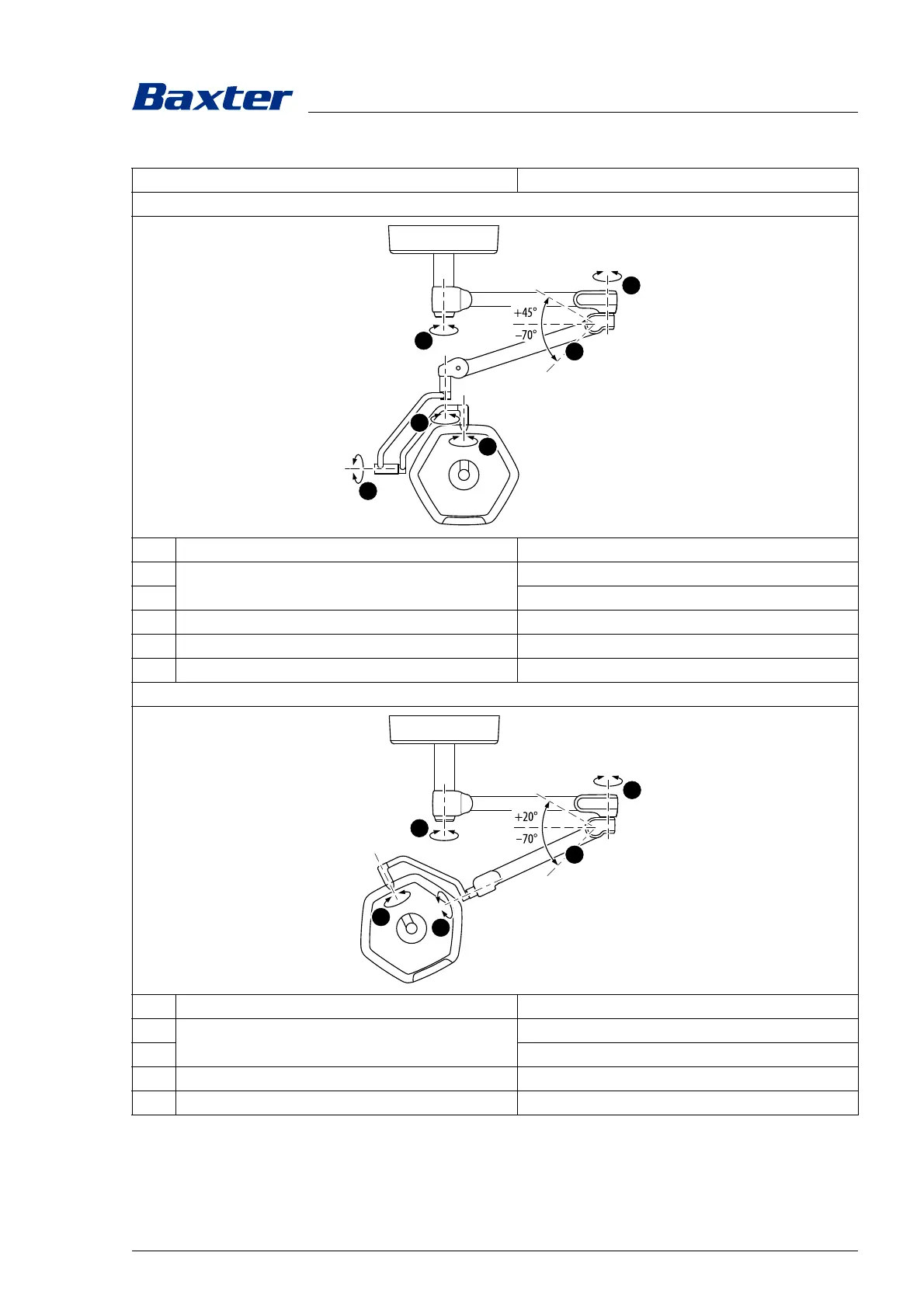

12.2.1 Support arm system swivel ranges
Joint Swivel range
Ceiling-mounted version with L21 spring arm
[A] Ceiling conduit – Boom Horizontal: > 360° (without stop)
[B] Boom – Spring arm L21 Horizontal: > 360° (without stop)
[C] Vertical: +45° to -70°
[D] Spring arm L21 – iLED 7 comfort bracket Horizontal: > 360° (without stop)
[E] iLED 7 comfort bracket – 1/4 bracket iLED 7 Vertical: > 360° (without stop)
[F] 1/4 bracket iLED 7 – Lamp head Vertical: > 360° (without stop)
Ceiling-mounted version with LCH19 spring arm (Version: Low room height)
[A] Ceiling conduit – Boom Horizontal: > 360° (without stop)
[B] Boom – Spring arm LCH19 Horizontal: > 360° (without stop)
[C] Vertical: +20° to -70°
[D] Spring arm LCH19 – 1/4 bracket iLED 7 Vertical: > 360° (without stop)
[E] 1/4 bracket iLED 7 – Lamp head Vertical: > 360° (without stop)
A
D
E
F
B
C
B
A
E
D
C
