baxter iLED 7 User Manual

Technical data
80
7990087_030_03 – 2080492 – 2023-01-19

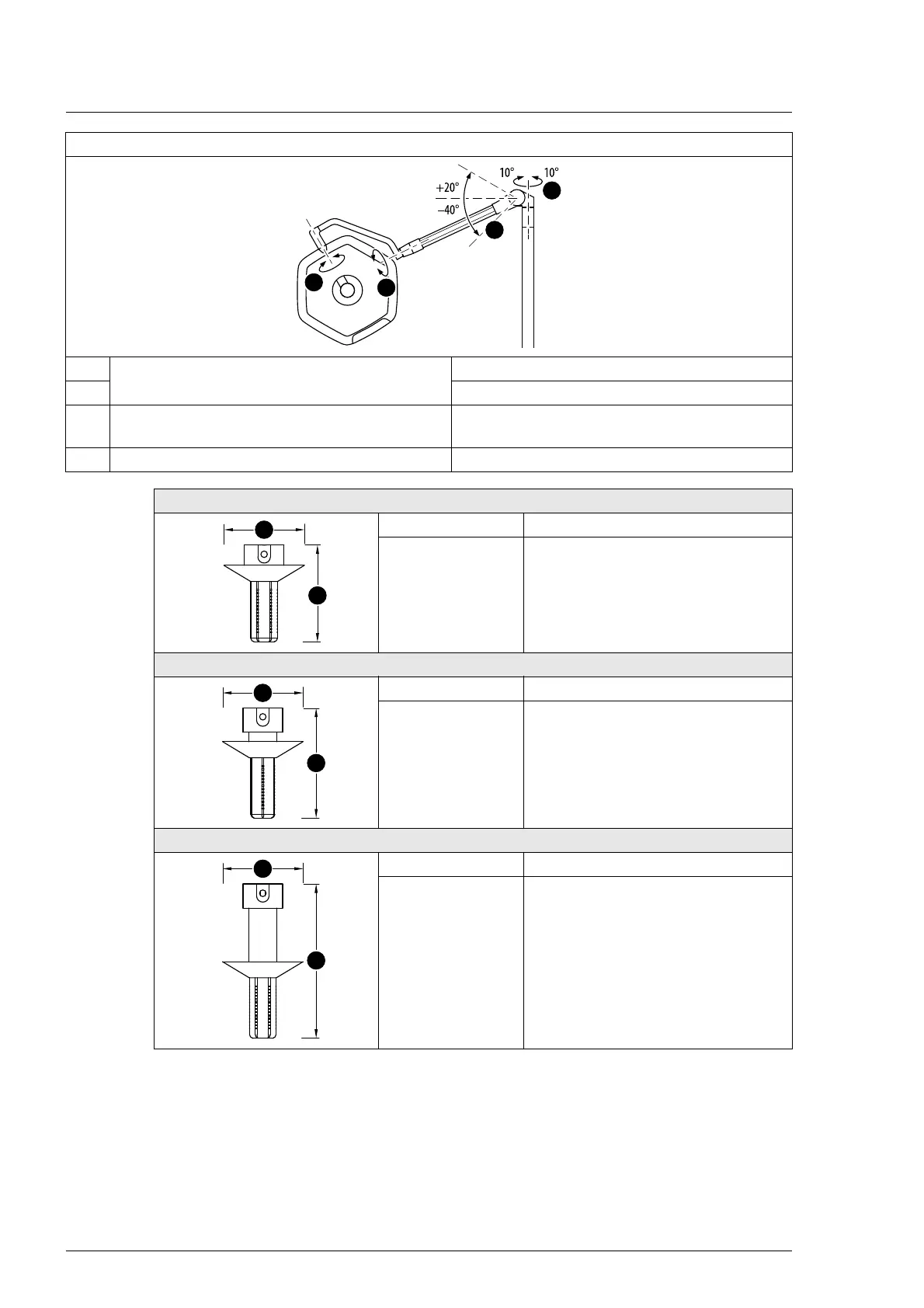

Mobile pedestal version
[A] Pedestal rod – Spring arm AC 2000 NRH mobil Horizontal: +10° to -10°
[B] Vertical: +20° to -40°
[C] Spring arm AC 2000 NRH mobil –
1/4 bracket iLED 7
Vertical: > 360° (without stop)
[D] 1/4 bracket iLED 7 – Lamp head Vertical: > 360° (without stop)
C
D
A
B
Handle sleeve flange type short handle adapter
Diameter [A] 101.6 mm / 4.00 inch
Length [B] 122.3 mm / 4.81 inches
Handle sleeve flange type middle handle adapter
Diameter [A] 101.6 mm / 4.00 inch
Length [B] 138.8 mm / 5.46 inches
Handle sleeve flange type long handle adapter
Diameter [A] 101.6 mm / 4.00 inch
Length [B] 194.6 mm / 7.66 inches
B
A
B
A
B
A
