Description
7990087_030_03 – 2080492 – 2023-01-19 37
Diagram of the
surgical light
The surgical light diagram gives an immediate visual overview of
the changes made to the settings of the surgical light.
Functions of the
surgical light
The function area is used to select the functions of the surgical
light (lighting intensity, color temperature, light field and ALC Plus).
Setting range for the
functions
The desired settings option is exercised for the selected function
in the settings range.
Information area The information area shows the current settings for lighting
intensity, the color temperature and the light field of the surgical
light, as well as the status of the ALC Plus function.
Action bar The action bar is used to select the functions that affect all surgical
lights of the lighting system (switching off the surgical lights,
Endo lighting intensity, switching on the surgical lights, shadow
management, synchronization) and for switching the surgical light
on or off.

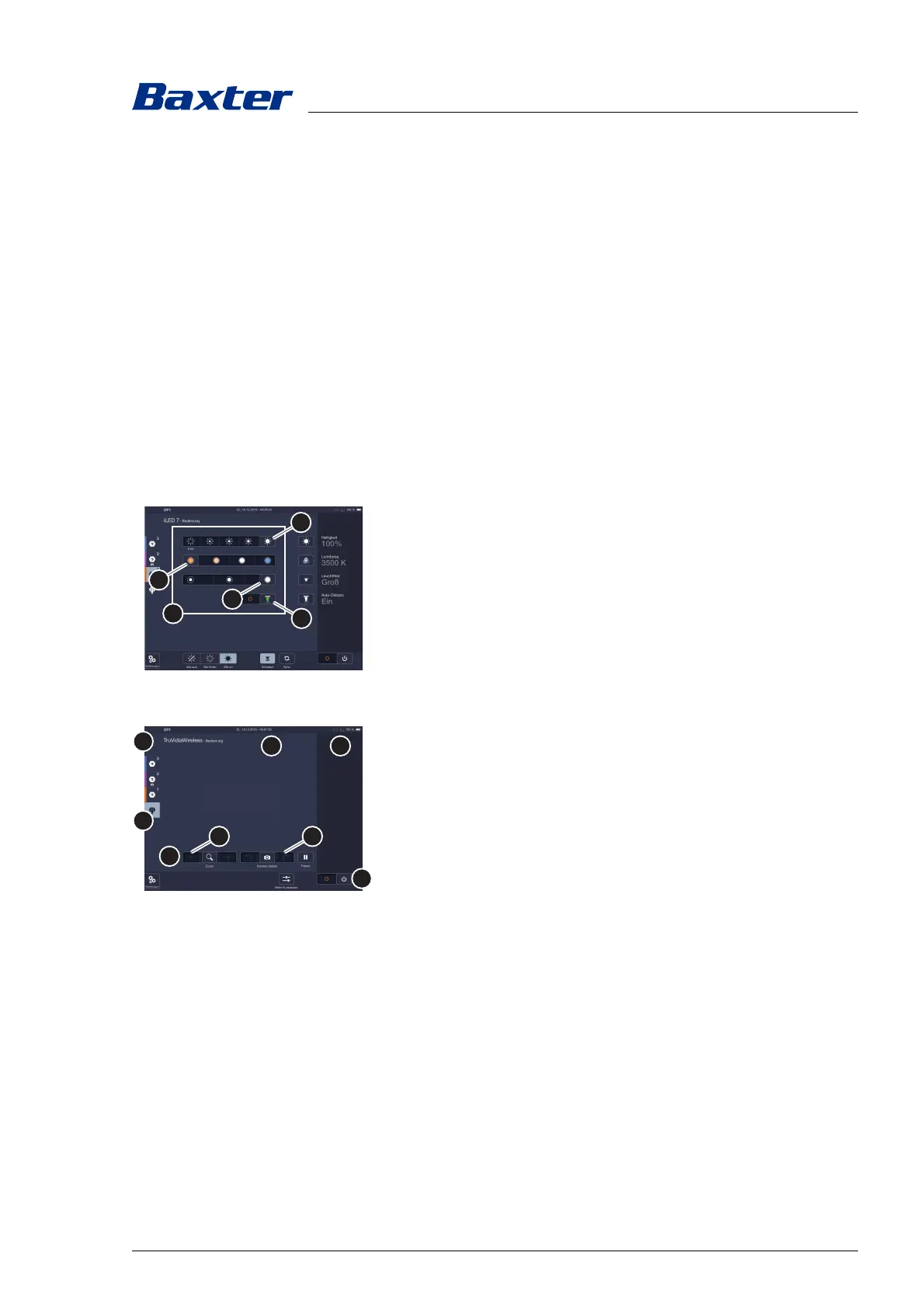

4.8.4 One-Click page structure
The one-click page has a similar structure to the surgical light
control screen. The difference lies in the operating range. Instead
of the surgical light diagram, all functions and the setting ranges
[A] for a surgical light are shown simultaneously and can be
directly adjusted. The highlighted icons [B] show the current
settings option for each function.
4.8.5 Page configuration of TruVidia Wireless control screen
The TruVidia Wireless light control screen is divided up into the
following areas:
– [A] Quick access bar
– [B] Header line with the name of the camera
– [C] Operating range with
– [D] Functions of the camera
– [E] Setting ranges for the functions
– [F] Information area
– [G] Action bar
Camera functions Camera functions are selected in the Functions area.
– Image rotation
– Scaling
– Storing a still image
Setting range for the
functions
The desired settings option is exercised for the selected function
in the settings range.
Action bar The action bar is used to switch the camera on or off and to show
other camera functions.
–Focusing
– Select exposure metering
–White Balance
B
B
A
B
B
A
B
C
D
G
E E
F
