5.13.2 AC 2000 NRH mobil spring arm

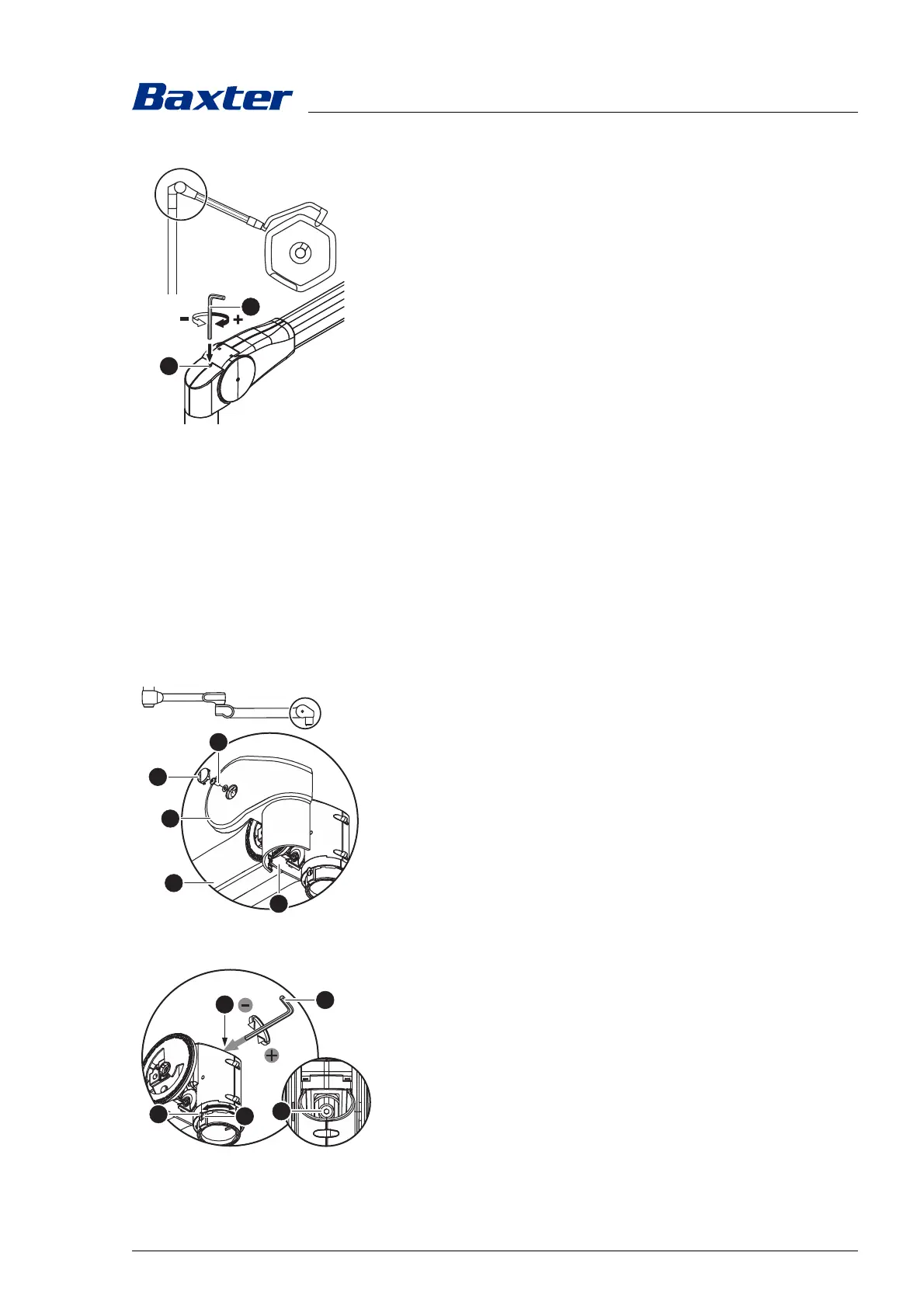

1. Switch off the surgical light at a control module and
disconnect it from the mains power (see Chapter 5.7).
2. Swivel the spring arm approx. 10 degrees upwards.
The adjustment screw of the spring arm is relieved.
3. Insert a Size 5 Allen key [A] into the adjustment opening [B].
4. Adjust the spring force.
– If the spring arm drops, increase the spring force:
Turn the Allen key clockwise.
– If the spring arm rises, decrease the spring force:
Turn the Allen key in an anticlockwise direction.
5. Test the spring strength. The support arm must remain stable
in the set height position.
5.14 Adjusting the swivel range of the spring arm upwards and downwards
The swivel range should only be set by personnel who have been
trained by Baxter for this work.
Set the swivel range in such a way that collision with the ceiling or
adjacent objects is not possible.
During adjustment work, make sure that any electrical cables in
the spring arm remain routed in the center of the spring arm and
do not slip underneath other components.
5.14.1 Spring arm L21
1. Switch off the surgical light at a control module and
disconnect it from the mains power (see Chapter 5.7).
2. Pull the spring arm [7] down to relieve the setting screw.
3. Remove the front cover [A] from the spring arm [7].
a) Press and remove the PUSH button [B] from the right and
left front spring arm cover respectively.
b) Using a Torx T10 screwdriver, remove 1 MLF screw and its
washer [C] from each of the right and left front spring arm
covers.
c) Carefully unlock all catches at the joint between the two
cover panels.
d) Remove the front spring arm covers from the spring arm.
4. Manually push the upper and lower faceplates [D] into the
side cover of the spring arm.
5. Insert a Size 5 Allen key [E] into the adjustment opening [F].
6. Adjust the swivel range.
– Reducing the swivel range:
Turn the Allen key in an anticlockwise direction.
– Increasing the swivel range:
Turn the Allen key clockwise.
7. Test the swivel range.
B
A
D
A
C
7
B
E
F
F
G
H
