Use
7990087_030_03 – 2080492 – 2023-01-19 47

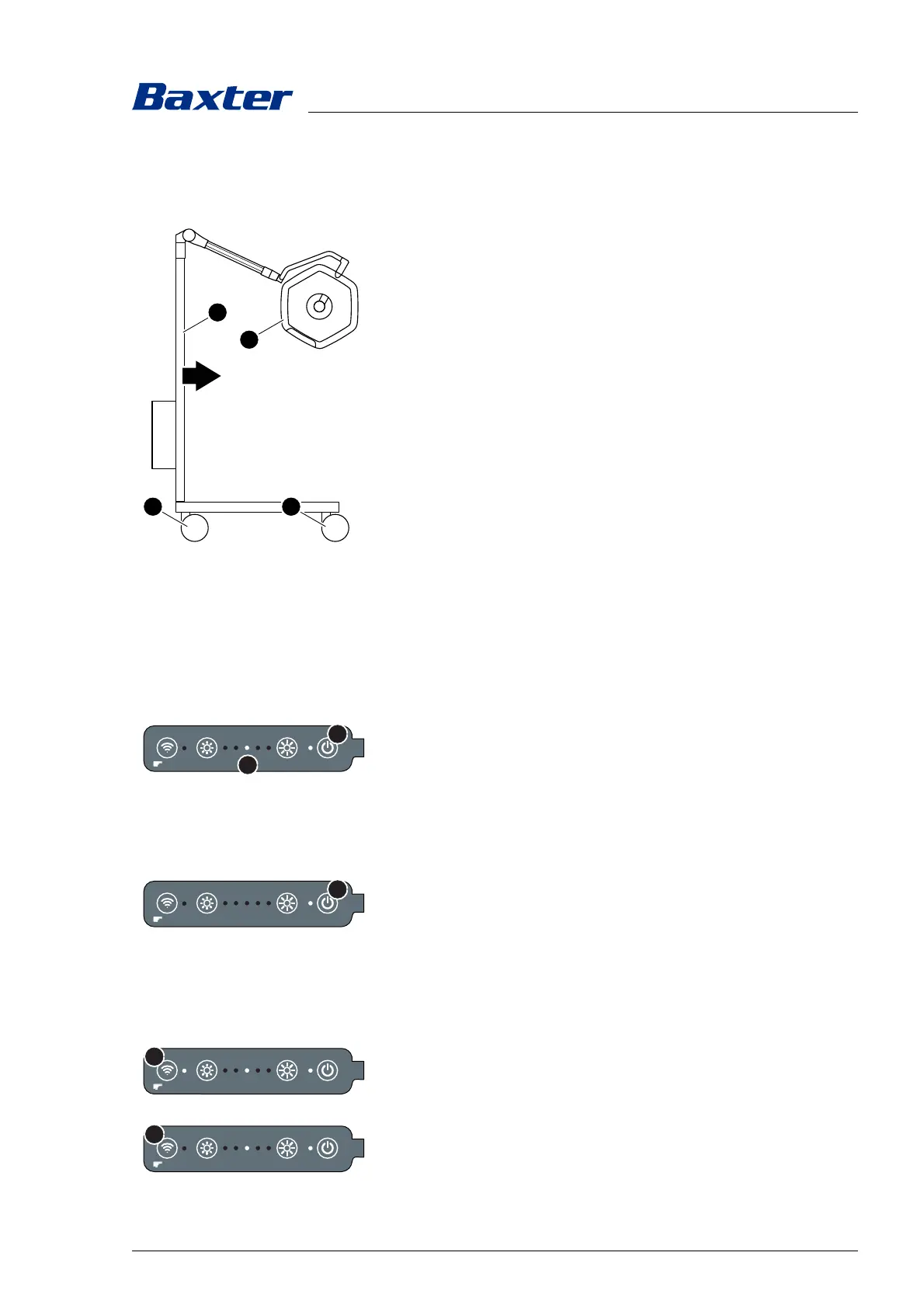

5.9 Moving the mobile surgical light
Do not exert excessive force onto the spring arm or the lamp head
in the braked state, as this may cause the surgical light to tilt. Do
not attach any additional loads to the spring arm.
1. Switch off the surgical light at a control module and
disconnect it from the mains power (see Chapter 5.7). The
power supply only needs to be disconnected when the
surgical light is to be moved outside of its operating range.
The operating range is determined by the length of the mains
power cable.
2. Release the parking brake at all 4 wheels [32]. Push the
latching mechanism upwards for this purpose.
3. Hold the surgical light at the stand pole [27] and push in the
direction of travel together with the lamp head [14].
Tightly hold the surgical light at steps or on uneven ground
and carefully move it past the obstacle.
4. Park the surgical light at the place of operation or the parking
place in its braked state. To do this, release the locking
mechanism at all 4 wheels [32].
5.10 Operating the surgical light with the control module and SLC handle
adapter
5.10.1 Switching the surgical light on/off
The function is set on the controls of the surgical light.
Switching on:
– Press the [i1] key.
The surgical light starts with the standard setting or with the
last parameters set. The desired option can be set by a service
technician.
The indicator next to the [i1] key and the indicator for lighting
intensity [a1] light up.
Switching off:
– Press the [i1] key.
5.10.2 Establishing/disconnecting the radio connection
The function is set on the controls of the surgical light.
Establishing:
– Press the [i4] key.
The indicator next to the [i4] key lights up.
Disconnecting:
– Press the [i4] key for 3 seconds.
The indicator next to the [i4] key goes off.
