– a Handle sleeve [34] handle adapter and a sterile disposable
handle/disposable sleeve for the Adaption disposable handle
[16] handle adapter on the light head mount
– a medical flat screen [11] (product from a third-party
manufacturer)
– a Wall Control Panel [20]
–an RS232 interface [21]
– a Mobile Control 7,9 control module [19] (product from a
third-party manufacturer)

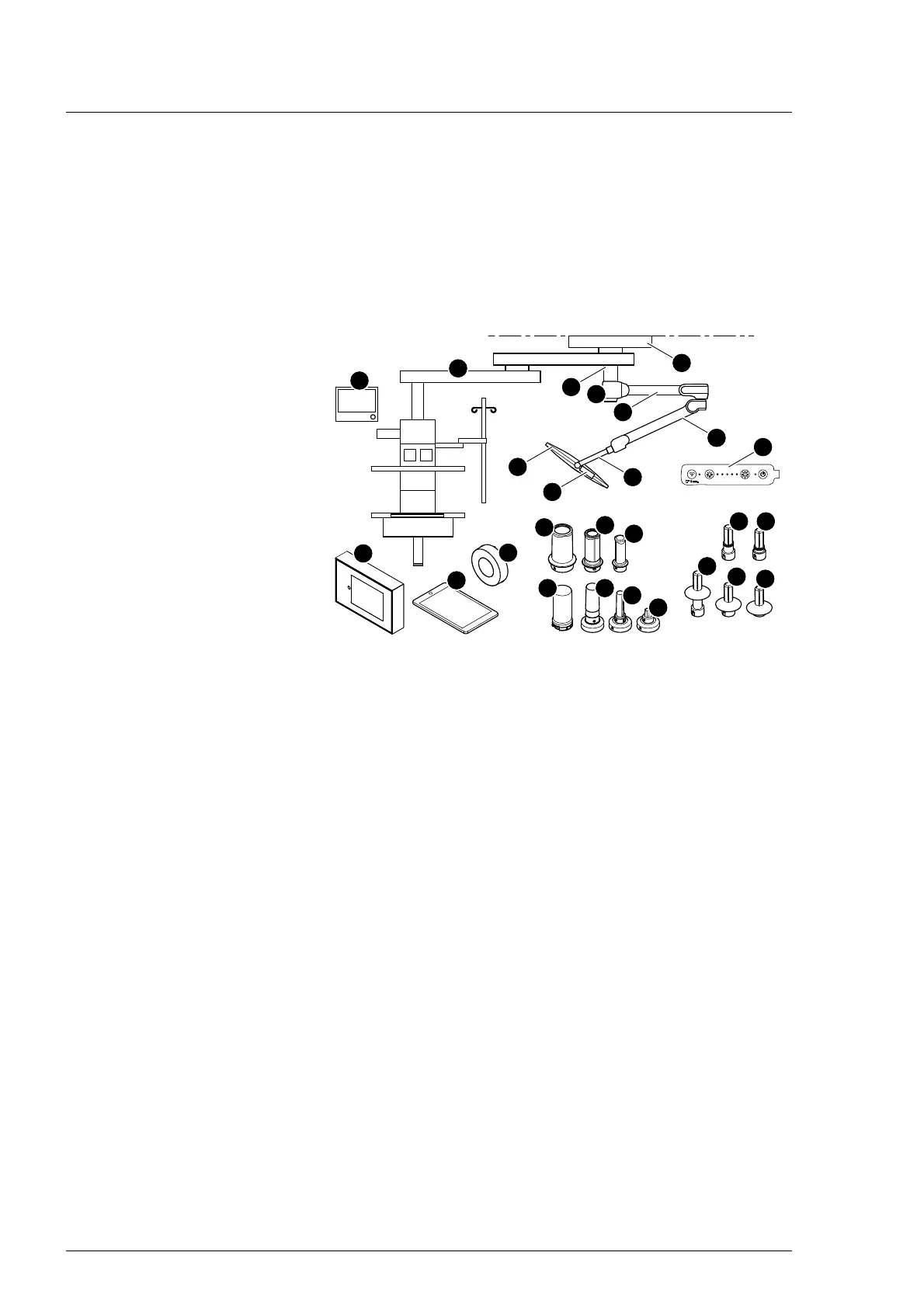

[1] Canopy
[3] Central axis
[9] Low room height spring arm
(LCH19)
[11] Flat screen
[13] 1/4 bracket iLED 7
[14] Lamp head
[15] Control element
The functions available on the control are limited.
[16] Handle adapter
(Adaption Standard handle/Adaption disposable handle)
[17] SLC Handle Adapter
[18] TruVidia wireless camera
[19] Mobile Control 7,9
[20] Wall Control Panel
[21] RS232 interface
[22] Sterilizable handle
(Sterilizable ALC Handle, 3 pcs/Sterilizable Central Handle,
3 pcs/Sterilizable Camera Handle, 3 pcs)
[24] FCS 700 Ceiling Supply Unit ceiling-mounted supply unit /
TruPort Ceiling Mounted Support System
[25] Pendant Adapter
(Light adaptation on the ceiling-mounted supply unit)
[26] Boom
[34] Disposable handle adapters
(Handle sleeve flange type short/Handle sleeve flange type
middle/Handle sleeve flange type long/Handle sleeve ring
type short/Handle sleeve ring type long)
