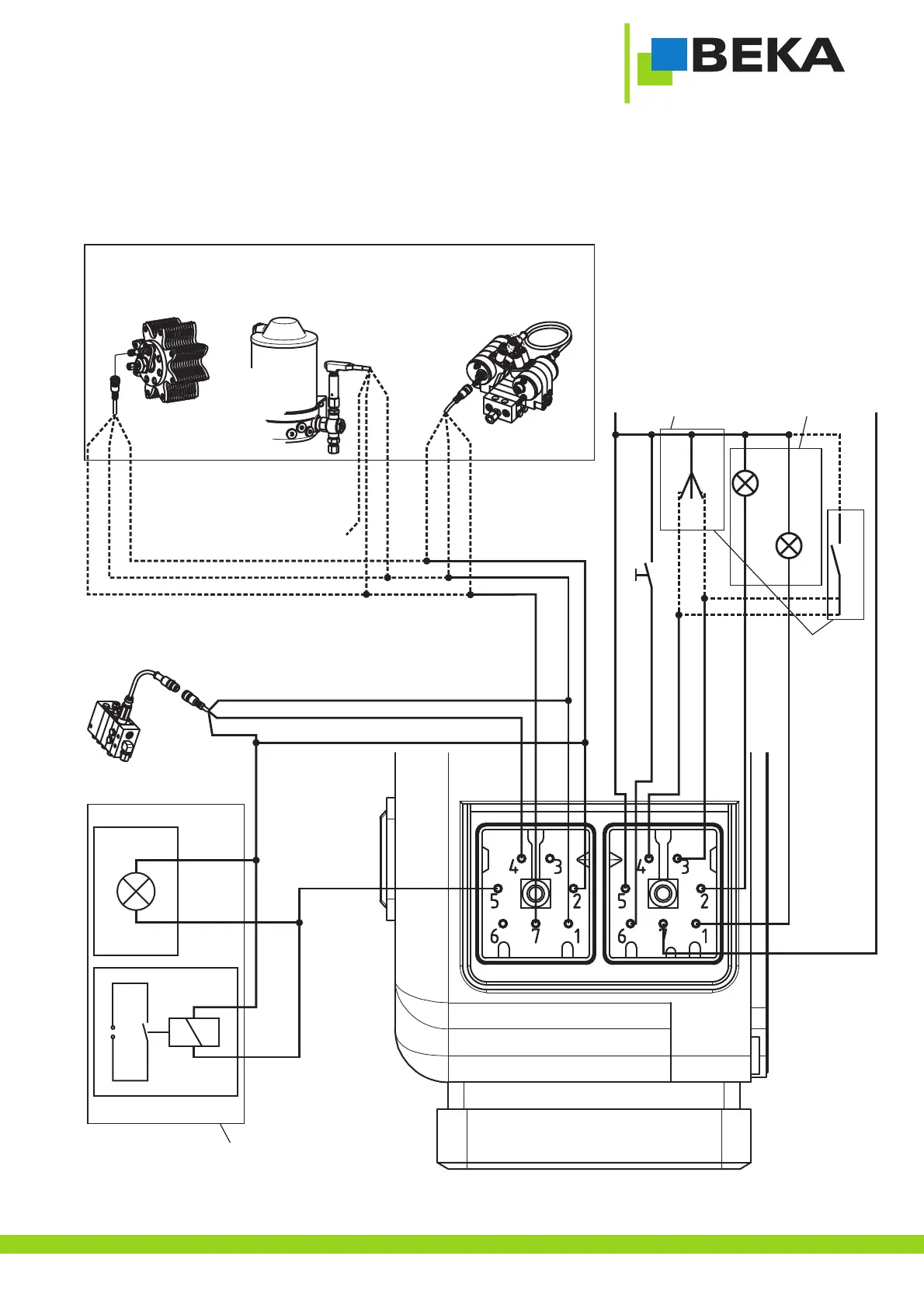

6.2.3 Connectiondiagram fordevices withPICO-tronic
Fig.3:
brown green
Lamp green
red
Lamp red
-
+
-
+
white grey
min.
max.
Cycle locked
orange
black
Push-button for intermediate
lubrication
+Ub
Mass
3-notch switch for
adjustment to operating
conditions
External
signal
lamp
optional
black brown blue black grey
brown
free
black
brown
blue
Operational mode of
pulse-dependent cycle
duration (e.g. proximity
switch at lubrication pinion)
Operational mode of pulse-dependent
lubrication duration (e.g. proximity switch
at progressive distributor)
System pressure monitoring
(Micro switch at pressure
limiting valve)
Line break monitoring
(at progressive distributor)
brown
black
blue
Status signal
External lamp
Operational release relay
optional
optional
