8.5.2 Pressurelimiting valveswith microswitch
The maximum operating pressure in the lubrication system can be electronically monitored by a micro switch which is
attachedat thepressure limitingvalve.
The micro switch is operated when the pressure in the lubrication system exceeds the value set at the pressure limiting
valve (see fig. 30). The emitted signal of the micro switch can be used customer specifically, e.g. for switching off the
device, or it is evaluated by the integrated control unit PICO-tronic (see chapter 9.2.8 „Function System pressure
monitoring“).

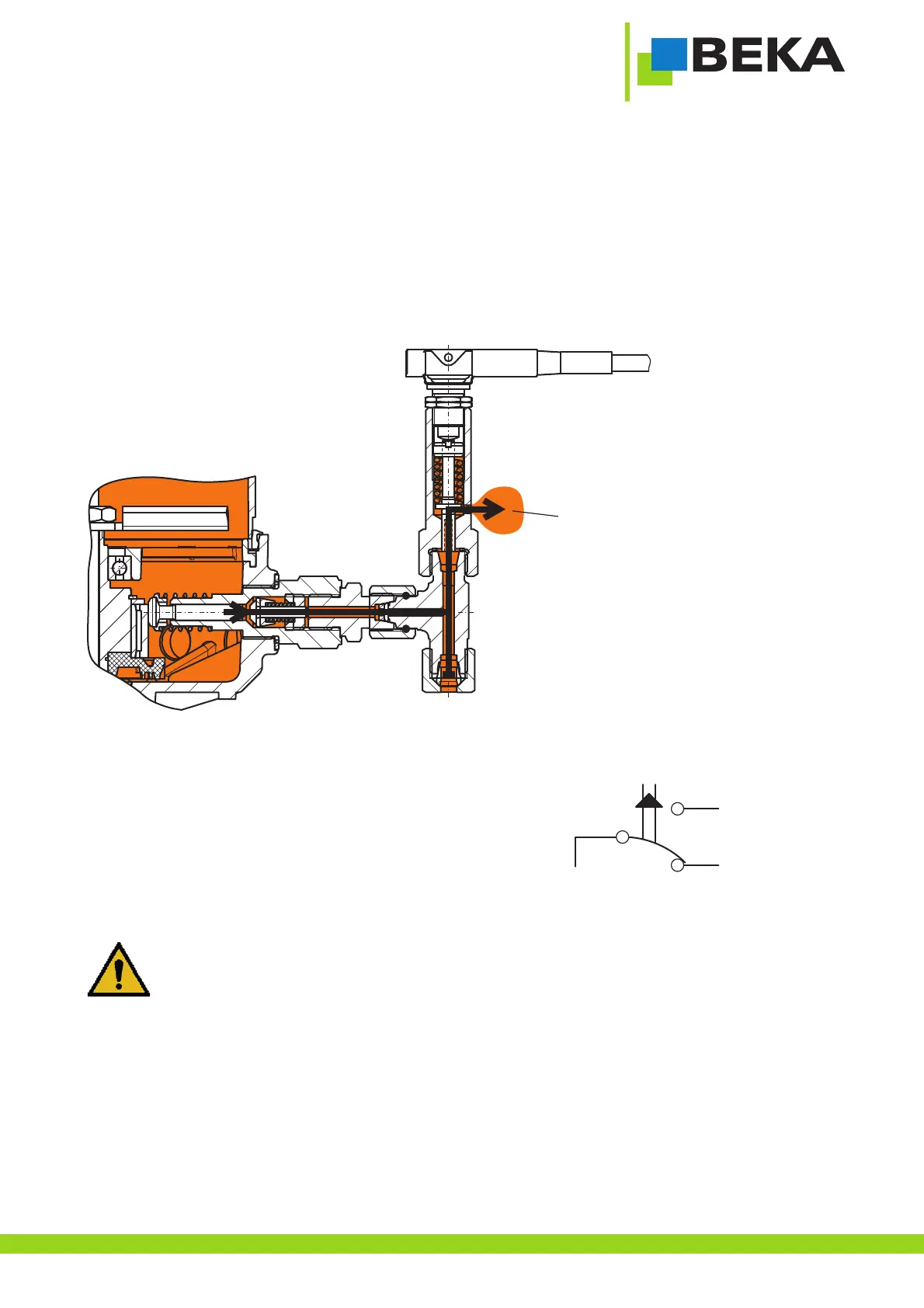

Fig.30:
Technical dataof themicro switch Connectiondiagram
Supplyvoltage: 10to 60V DC
Currentload max.: I=1,7A
Contacttype: changeovercontact
Temperature range: -25°Cto +85°C
Degreeof protection: IP 67
Connection: cable 0,5m long,welded (standard)
Lubricantcan leakout atthe pressurelimiting valveunder highpressure(290 bar)!
Wear corresponding personal protective equipment (e.g. safety goggles) and keep out of the direct area of
thepressure limitingvalve whenthere isa malfunctionat thedevice.
Onlywork atthe devicewhen itis ina disconnectedandpressureless state!
Lubricant
leakage
black
brown
blue
