Settingrange of thetime-dependentcycle duration:s
· 0,5to 8h (16notches à0.5 h)
· 1to 16min (16notches à1 min)
· 2to 32min (16notches à2 min)
· 2to 32h (16notches à2 h)
The cycle duration can be set (within a setting range) using the right grid switch in the inspection window of the protective
housing(see fig.36).
9.1.4 Operationalmode oftime-dependent lubricationduration
At theoperational mode oftime-dependent lubrication duration,the lubrication duration canbe set inminutes or seconds,
depending on the selected setting range. The setting range can be changed using the diagnosis software BEKA-DiSys
(withthe currentversion availableat ).www.beka-lube.de
Fig.38:
Settingranges ofthe time-dependentlubrication duration:
· 1to 16min (16notches à1 min)
· 2to 32min (16notches à2 min)
· 2to 32s (16notches à2 s)
The time-dependent lubrication duration can be set (within a setting range) using the left grid switch in the inspection
windowof theprotective housing(see fig.36).
9.1.5 Operationalmode ofrevolution-dependent lubricationduration
At the operational mode of revolution-dependent lubrication duration, the lubrication duration is determined by the
number of the counted pump revolutions. A sensor is installed into the device for this, which sends a signal to the control
unit at each revolution of the pump. If the control unit receives no signal within the adjustable monitoring time of
revolutions (standard setting 30 s), it sends an error (see chapter 13.1 „Signal indicators of the integrated control unit
PICO-troniX1").
When the cause of error has been eliminated, the error has to be reset by pushing the push-button for intermediate
lubrication(see fig.36).
The settingrange andthe monitoringtime of revolutions can bechanged usingthe diagnosissoftware (withBEKA-DiSys
thecurrent versionavailable at ).www.beka-lube.de

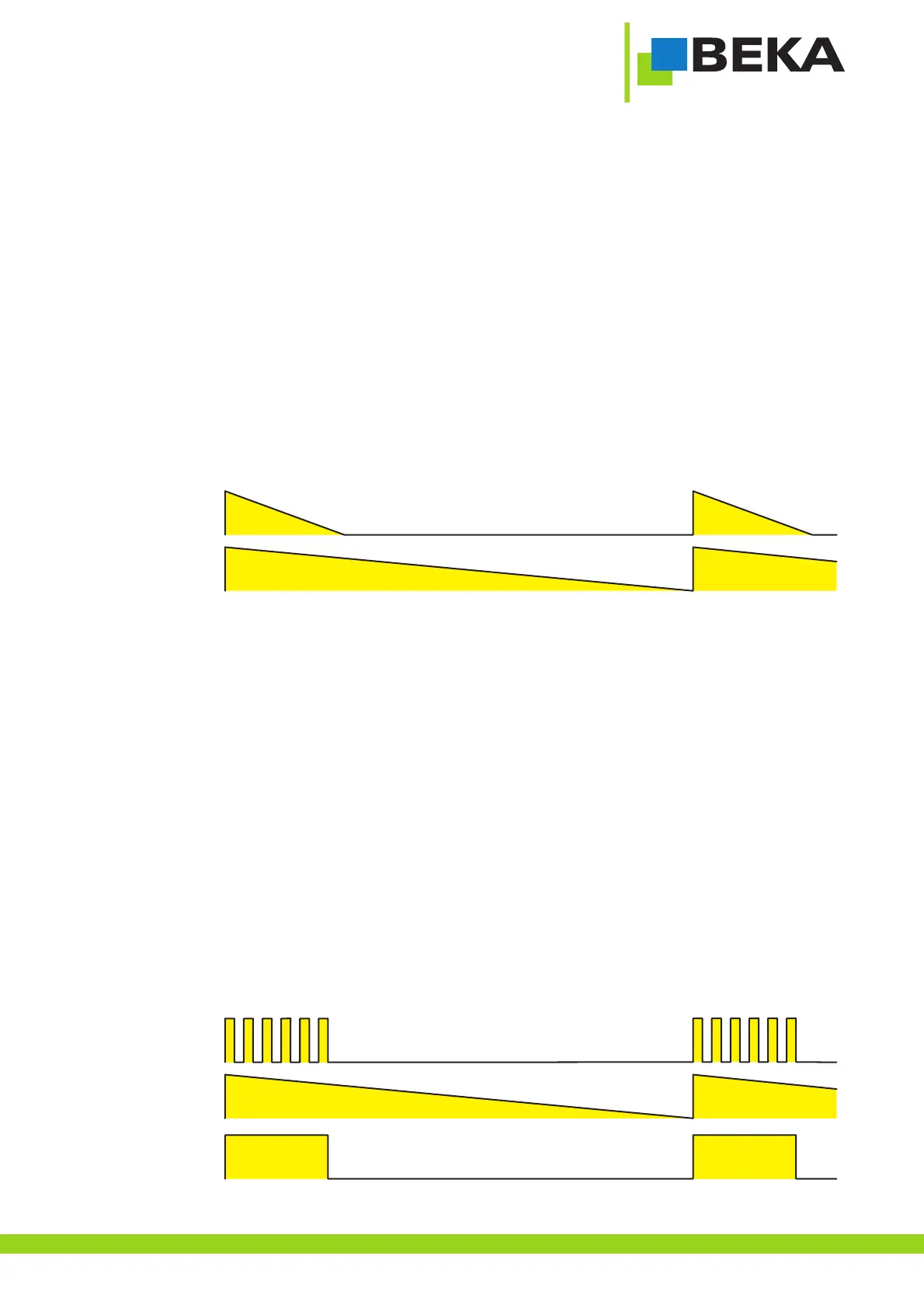

Fig.39:
Time-dependent
lubrication duration
Cycle duration
Revolutions
Cycle duration
Revolution-
dependent
lubrication duration
