9.2.7 Operationalmode ofrevolution-dependent lubricationduration
At the operational mode of revolution-dependent lubrication duration, the lubrication duration is determined by the
number of the counted pump revolutions. Asensor is installed into the device for this, which sends a signal to the control
unit at each revolution of the pump. If the control unit receives no signal within the adjustable monitoring time of
revolutions (standard setting 30 s), it sends an error (see chapter 13.2 „Signal indicators of the integrated control unit
PICO-tronic").
When the cause of error has been eliminated, the error has to be reset by pushing the push-button for intermediate
lubrication(see fig.40).
The settingrange andthe monitoringtime of revolutionscan bechanged using thediagnosis software (withBEKA-DiSys
thecurrent versionavailable at ).www.beka-lube.de

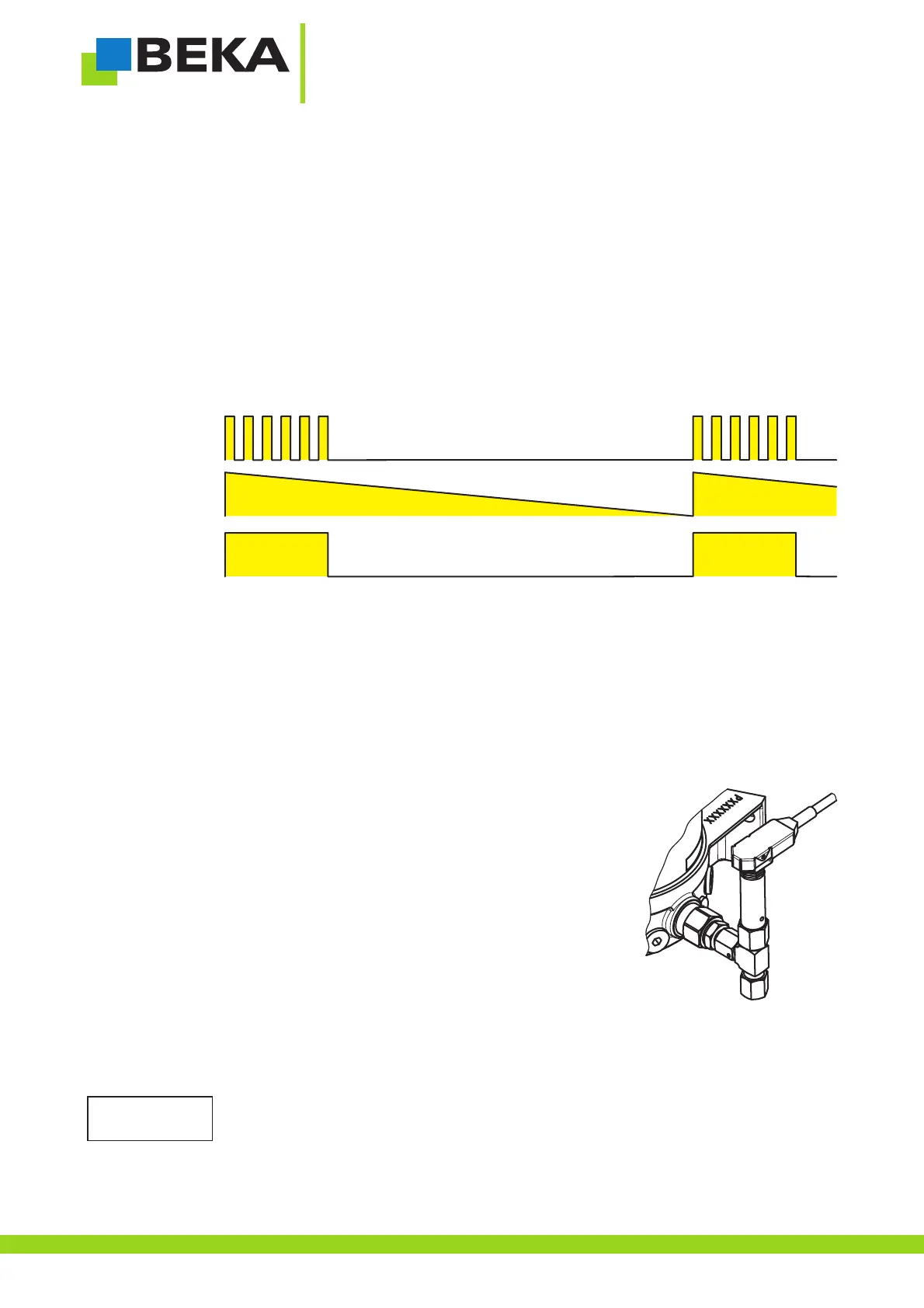

Fig.47:
Settingranges ofthe revolution-dependentlubrication duration:
· 1to 16revolutions (16notches à1 revolution)
· 10to 160revolutions (16notches à10 revolutions)
· 170to 320revolutions (16notches à10 revolutions)
The revolution-dependent lubrication duration can be set (within a setting range) using the left grid switch in the
inspectionwindow ofthe protectivehousing (seefig. 40).
9.2.8 FunctionSystem pressure monitoring
The operating pressure in the lubrication system can be monitored by a micro switch
which is attached at the pressure limiting valve (see chapter 8.5.2. „Pressure limiting
valveswith microswitch“).
If the pressure in the lubrication system exceeds the set value, the pressure limiting
valveopens andthe microswitch isoperated.
The micro switch sends a signal to the integrated control unit, which switches the
device off and displays an error (see 13.2 „Signal indicators of the integrated control
unitPICO-tronic").
When the cause of error has been eliminated, the error has to be reset by pushing the
push-buttonfor intermediatelubrication (seefig. 40).
The micro switch can be connected to the integrated control unit at the left Hirschmann plug-type connection on the
protectivehousing (GO610WF, seefig. 40).
Thefunction is alwaysactive; amicroswitch canbe attachedat anytime.System pressure monitoring
The function cannot be selected in the operational mode ofSystem pressure monitoring pulse-
dependentcycle durationor togetherwith thefunction .Line break monitoring
9.2.9 FunctionLevel monitoring
Seechapter 8.6„Level monitoring“.
Notice!
Fig. 48:
Revolutions
Cycle duration
Revolution-
dependent
lubrication duration
