Settingranges ofthe time-dependentcycle duration:
· 0,5to 8h (16notches à0,5 h)
· 1to 16min (16notches à1 min)
· 2to 32min (16notches à2 min)
· 2to 32h (16notches à2 h)
The time-dependent cycle duration can be set (within a setting range) using the right grid switch in the inspection window
ofthe protectivehousing (seefig. 40).
9.2.4 Operationalmode ofpulse-dependent cycleduration
At the operational mode of pulse-dependent cycle duration, the cycle duration is
determined by the number of incoming pulses of a sensor (e.g. proximity switch
at the lubrication pinion, see fig. 42). If the integrated control unit receives no
pulse signal within the adjustable pulse monitoring time of cycle duration
(standard setting7 days), it displaysan error (seechapter 13.2 „Signal indicators
ofthe integratedcontrol unitPICO-tronic").
When the integrated control unit receives a pulse signal again, the error is
automaticallyreset andthe cyclecontinues normally.
The sensorcan be connectedto the integrated control unit at theleft Hirschmann
plug-typeconnection onthe protectivehousing (GO610WF, seefig. 40).
The setting range and the pulse monitoring time of the cycle duration can be changed using the diagnosis software
BEKA-DiSys www.beka-lube.de(withthe currentversion availableat ).
Fig.43:
Settingranges ofthe pulse-dependentcycle duration:
· 1to 16pulses (16notches à1 pulse)
· 10to 160pulses (16notches à10 pulses)
· 20to 320pulses (16notches à20 pulses)
· 100to 1600pulses (16notches à100 pulses)
· 500to 8000pulses (16notches à500 pulses)
The pulse-dependentcycle durationcan beset (withina setting range)using theright gridswitch inthe inspection window
ofthe protectivehousing (seefig. 36).
The functions and cannot be selected inSLystem pressure monitoring ine break monitoring
theoperational modeof .pulse-dependentcycle duration

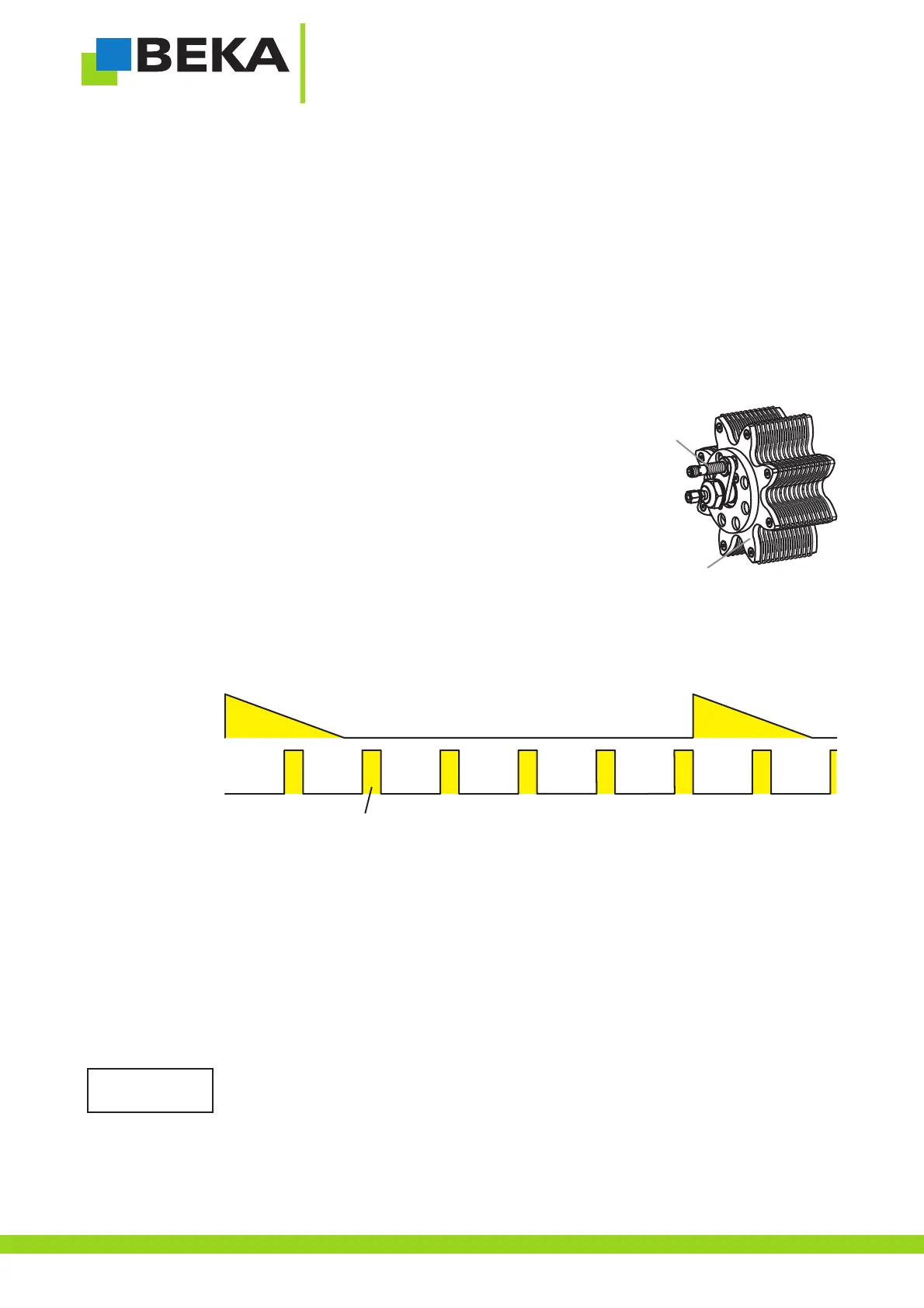

Fig. 42:
Proximity
switch
Lubrication
pinion
Notice!
Lubrication duration
Pulse-dependent
cycle duration
Pulse
