9.2.1 Functionaldescription

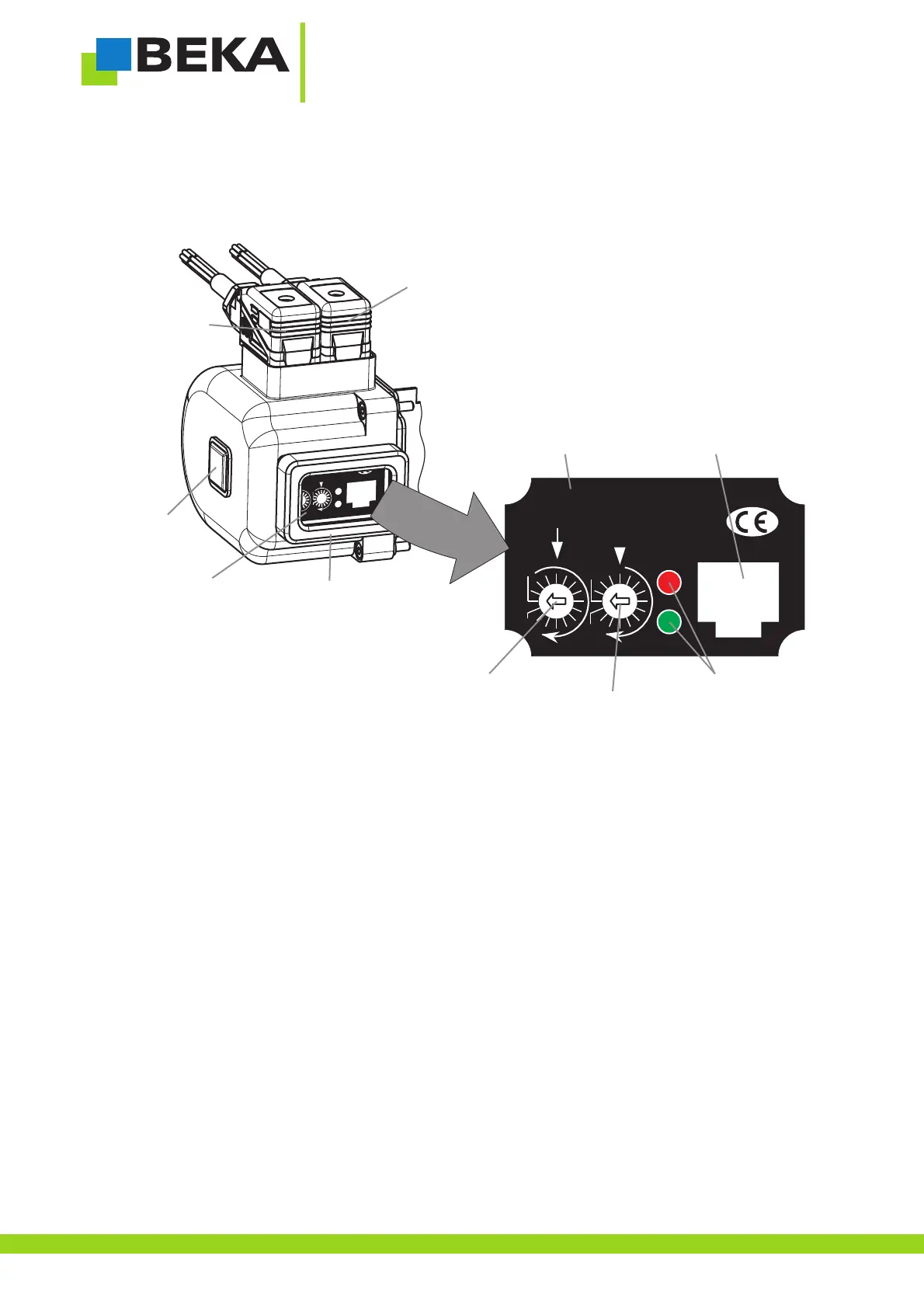

Fig.40:
Alubricationstarts atinitial connectionof theintegrated controlunit.
Each time after the voltage (ignition) is switched on, the red and the green LED glow for approx. 1.5 seconds in the
inspectionwindow ofthe protectivehousing anddisplay theoperational capabilityofthe integratedcontrol unit.
If the voltage is interrupted (ignition switched off) during a cycle sequence or during the lubrication duration, the data is
stored in the operational database of the integrated control unit. When the voltage (ignition) is switched on again, the
cyclesequence startswhere i was interruptedbefore.t
When the voltage is switched on, an intermediate lubrication can be triggered at any time by pushing the push-button for
intermediatelubrication. Thecurrentdata ofthe cycleis deletedand anew lubricationcycle starts immediately.
Some errors have to be reset after the troubleshooting by pushing the push-button for intermediate lubrication (see
chapter13. „Troubleshooting“).
Then,the deviceimmediately startswith alubrication cycle.
8
0,5
Zykluszeit / Cycle time (h)
Service
Push-button for
intermediate
lubrication
Inspection window
of the protective
housing
Voltage connection
Hirschmann plug
7-poles
GO070WF
Connection for
additional equipment
Hirschmann plug
7-poles
GO610WF
8
1
16
Service
PICO-tronic
0,5
Schmierzeit
Lubrication time (min)
Zykluszeit / Cycle time (h)
Connect bushing foror
the diagnosis software
BEKA-DiSys
LEDs for indicating
the functional state
Grid switch for
setting the
lubrication
duration
Grid switch for
setting the
cycle duration
Adhesive label in inspection
window (example)
Frame of the
inspection window
