© BEKA 201 !9 All rights reserved
BAL2185_Grease_lubrication_pump_PICO_with_PICO-troniX1_-tronic_0519EN 10158410
...a product of
25
8.4.1 Pumpelements PE-120FV
The pump element PE-120 FV is intended for the use in progressive lubrication systems. The delivery rate of this pump
element can be set in the range from 0,04 cm³/stroke to 0,12 cm³/stroke. The pump element is deliverable with different
pipeconnections andwith orwithout pressurelimiting valve(see fig.23).

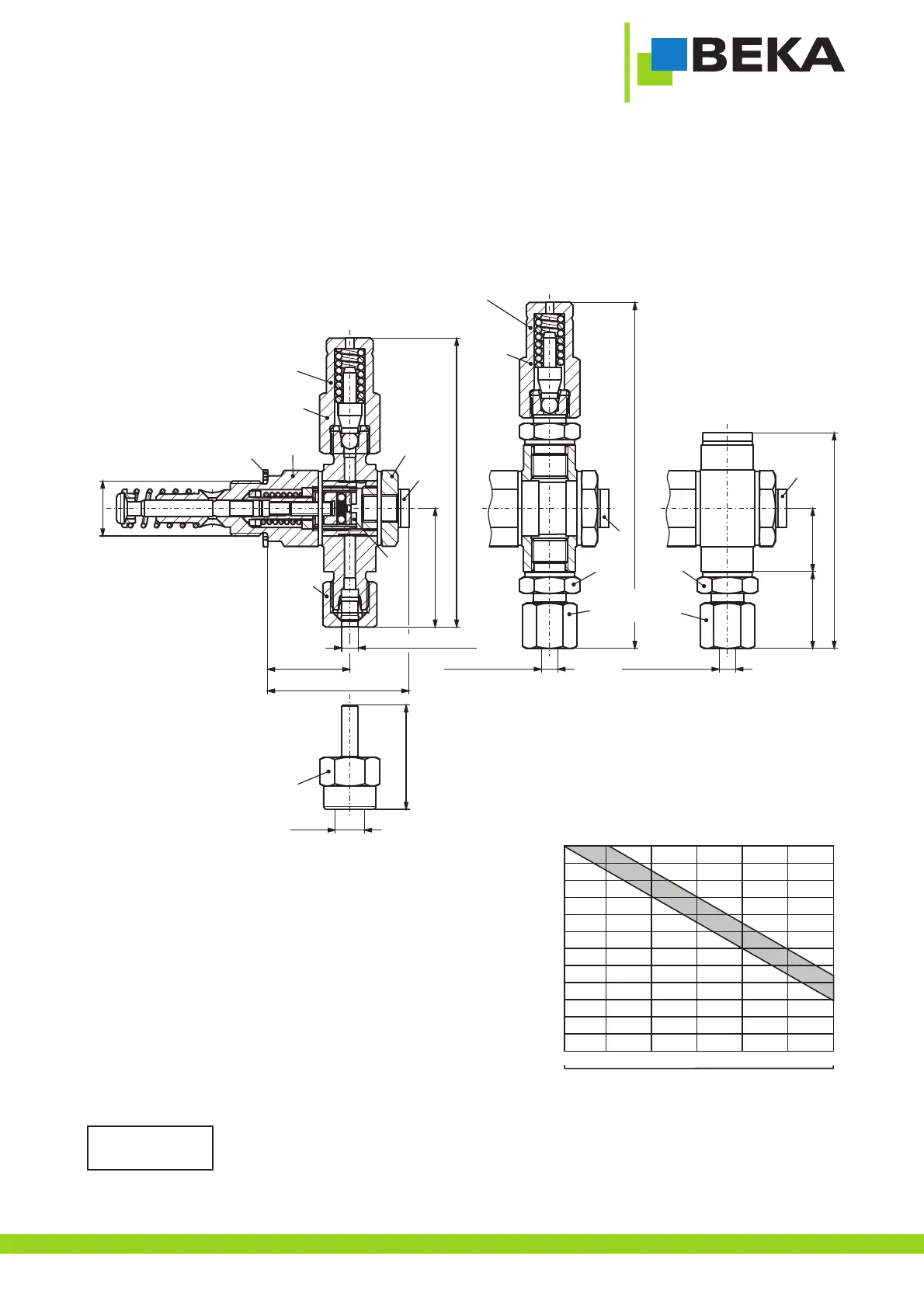

Fig.23:
Settingthe deliveryrate
· Remove the screw plug (1, see fig. 23) with an Allen key
AF5.
· Adjust the set screw (2, see fig. 23) with a screwdriver up
tothe requireddelivery rate.
· Turning clockwise reduces the delivery rate; turning
counterclockwiseincreases thedelivery rate.
· A revolution of the set screw corresponds to 2 detents.
The set screw can be adjusted by a maximum of 6 detents
(3revolutions, seefig. 24).
· Retighten the set screw (1) incl. sealing ring with a
tightening torqueof 15 Nm ±10% after settingthe delivery
rate.
Thepump elementPE-120 FVis setto fullstrokeex works.
Notice!
Pipe connection Ø6
approx. 43,5
approx. 105,5
approx. 30
approx. 51,5
M20x1,5
AF 19
G 1/4
38
Connecting socket for
pressure gauge
Pipe Ø6 - G 1/4
Order no.: 04014816006
AF 24
AF 19
Pressure limiting valve
(set to 290 bar)
AF 24
AF 17
USIT ring U 28x20,7x1,5
1
2
Pipe connection
Ø6, Ø8, Ø10
approx. 126
Pressure limiting valve with screw fitting
(set to 290 bar)
AF 19
AF 19
Ø6 / Ø8 = AF 17
Ø10 = AF 19
1
Ø6 = 28
Ø8 = 25
Ø10 = 26
23
Pipe connection
Ø6, Ø8, Ø10
50,5
AF 19
1
without
pressure limiting valve
Fig. 24:
0,12
0,11
0,10
0,09
0,08
0,07
0,06
0,05
0,04
0,03
0,02
0,01
0
0
0
1
0,5
2
1
3
1,5
4
2
5
2,5
6
3
Delivery rate (cm³)
Detents
Rev.
