BEKA BEKA-MAX PICO-troniX1 User Manual

BAL2185_Grease_lubrication_pump_PICO_with_PICO-troniX1_-tronic_0519EN 10158410
...a product of
© BEKA 201 All !9 rights reserved
28
8.4.4 Pumpelements PE-5,PE-10, PE-15,PE-25 andPE-50
The pump elementsPE-5, PE-10, PE-15, PE-25and PE-50 are intendedfor the use inmulti-line lubrication systems.The
delivery rate of these pump elements is set to 5 mm³/stroke (PE-5), 10 mm³/stroke (PE-10), 15 mm³/stroke (PE-15),
25mm³/stroke (PE-25) or 50 mm³/stroke (PE-50) and cannot be adjusted. The pump elements are deliverable with
differentpipe connections(seefig. 27).

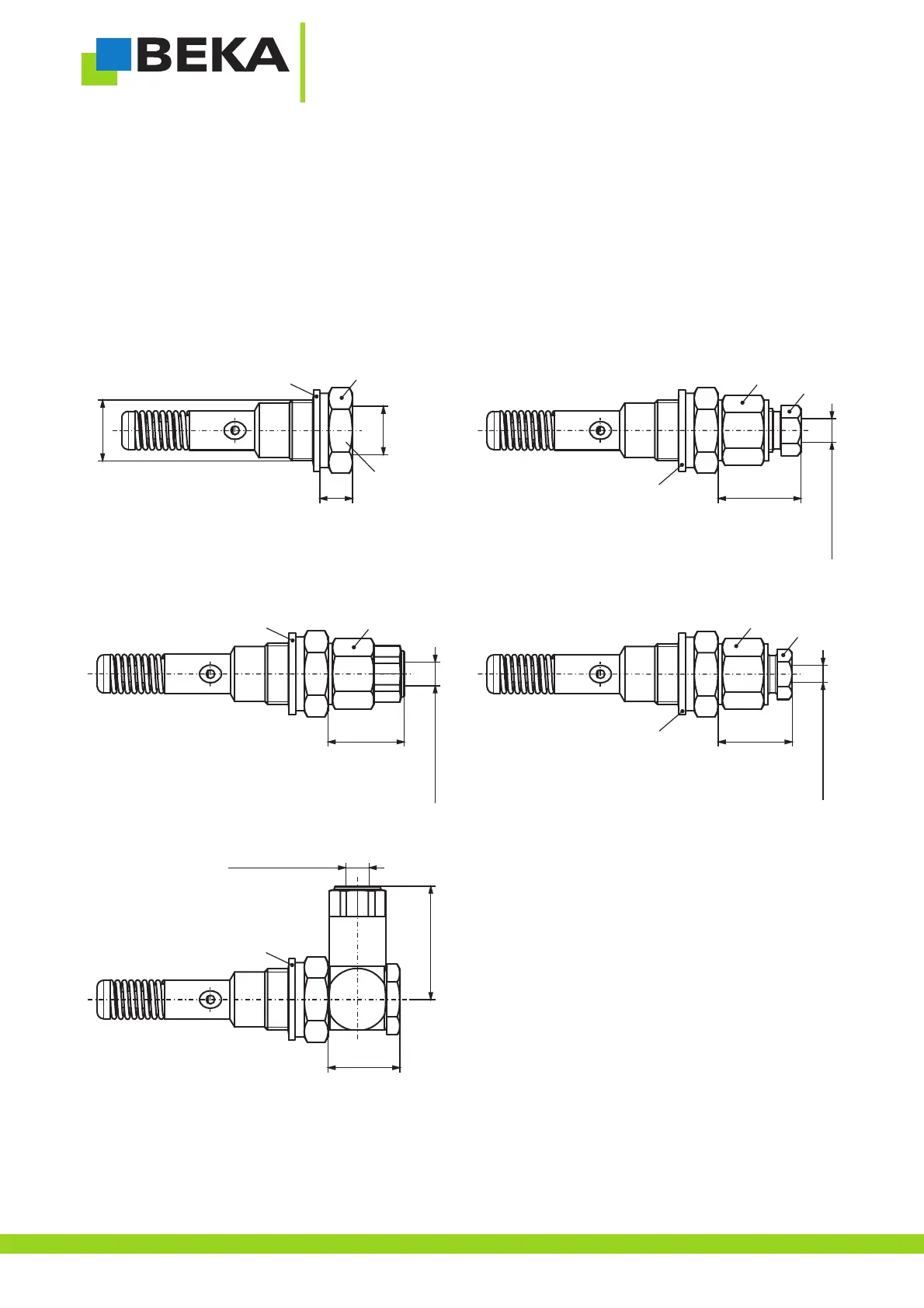

Fig.27:
Threadconnection M10x1 Pipeconnection Ø6with ÜS6(union screw)
andDKR6 (doubleconical ring)
Straightplug-type connectionØ6 Pipeconnection Ø4with ÜS4(union screw)
andDKR4 (doubleconical ring)
Plug-typeconnection 90°for pipeØ6
M14x1 M10x1
XX
7,5
AF 17
Metering volume
stamped at
hexagonal
USIT ring
U 18,7x14x1,5
Pipe connection Ø6
AF 14
17,5
USIT ring
U 18,7x14x1,5
XX
Pipe connection Ø6
19
AF 10
AF 14
USIT ring
U 18,7x14x1,5
XX
Pipe connection Ø4
17
AF 10
AF 14
USIT ring
U 18,7x14x1,5
XX
16,5
26
Pipe connection Ø6
USIT ring
U 18,7x14x1,5
XX
