17

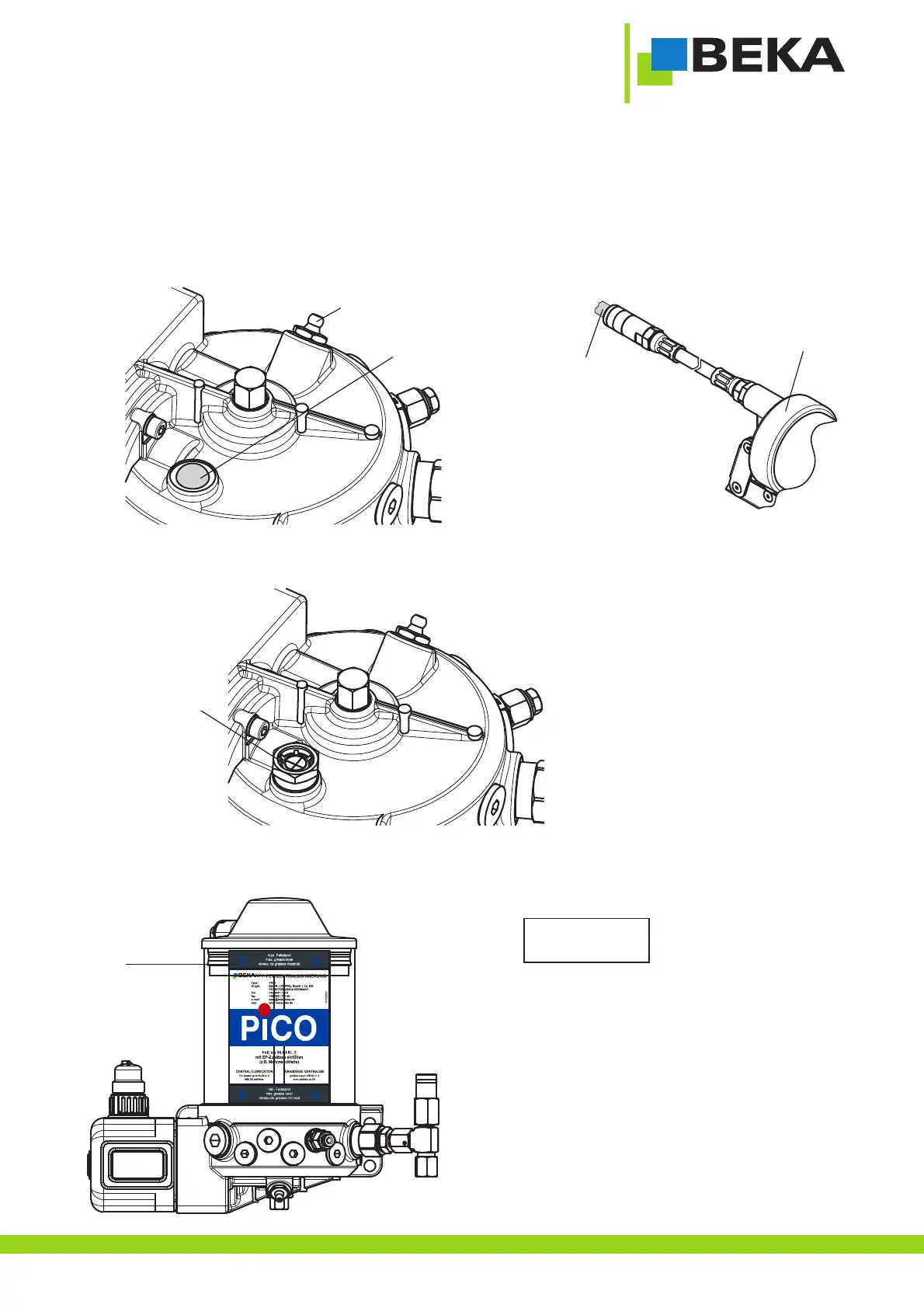

C) Take thedevice intooperation.
Operatethe fillinggun untillubricant leaksout visiblyat theoutlet(see fig.12).
Connect thefilling gun tothe cone-typezerk and fillthe device untillubricant leaks outat theopening of theoverfill
protection(see fig.11).
Fig.11: Fig.12:
D) Screwthe overfillprotection backin andtighten itwith atighteningtorque of15 Nm±10%.
Fig.13:
E) Turn the device around again and fill it up to the maximum level (see fig. 15). Put the protective cap back on the
cone-typezerk afterfinishing thefilling process.
Fig.14:
Avoid overfilling the device; otherwise lubricant
might leak out which can cause environmental
damage!
Caution!
Level max.
Overfill protection
Cone-type zerk
Lubricant leakage
at the opening of
the overfill protection
Lubricant
Filling gun
