7.5.9 Removing the Handle

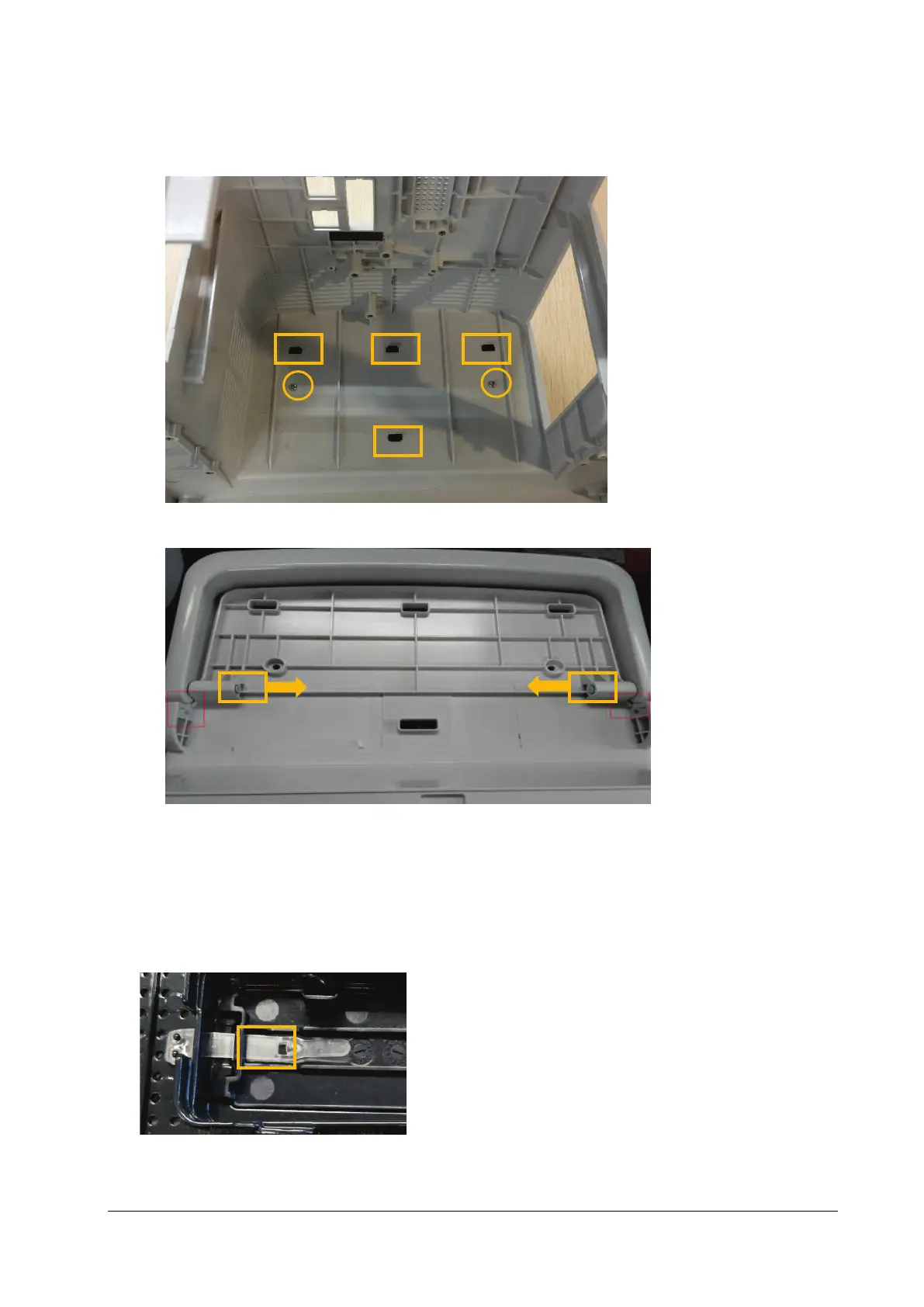

1. Place the face of the rear case handle down, loosen and remove the two PT 3X8 screws, forcibly release the four
clips on the top cover of rear case, and push down to take out the top cover of rear case.
2. Pry open the two handle positioning pins to the middle direction, and take out the handle.
7.6 Further Disassembly of the Base Assembly
N12/M12
Take out the battery door connecting belt from the through hole, and remove the battery door.
