8.9 N15/M15 Internal Module Rack Assembly

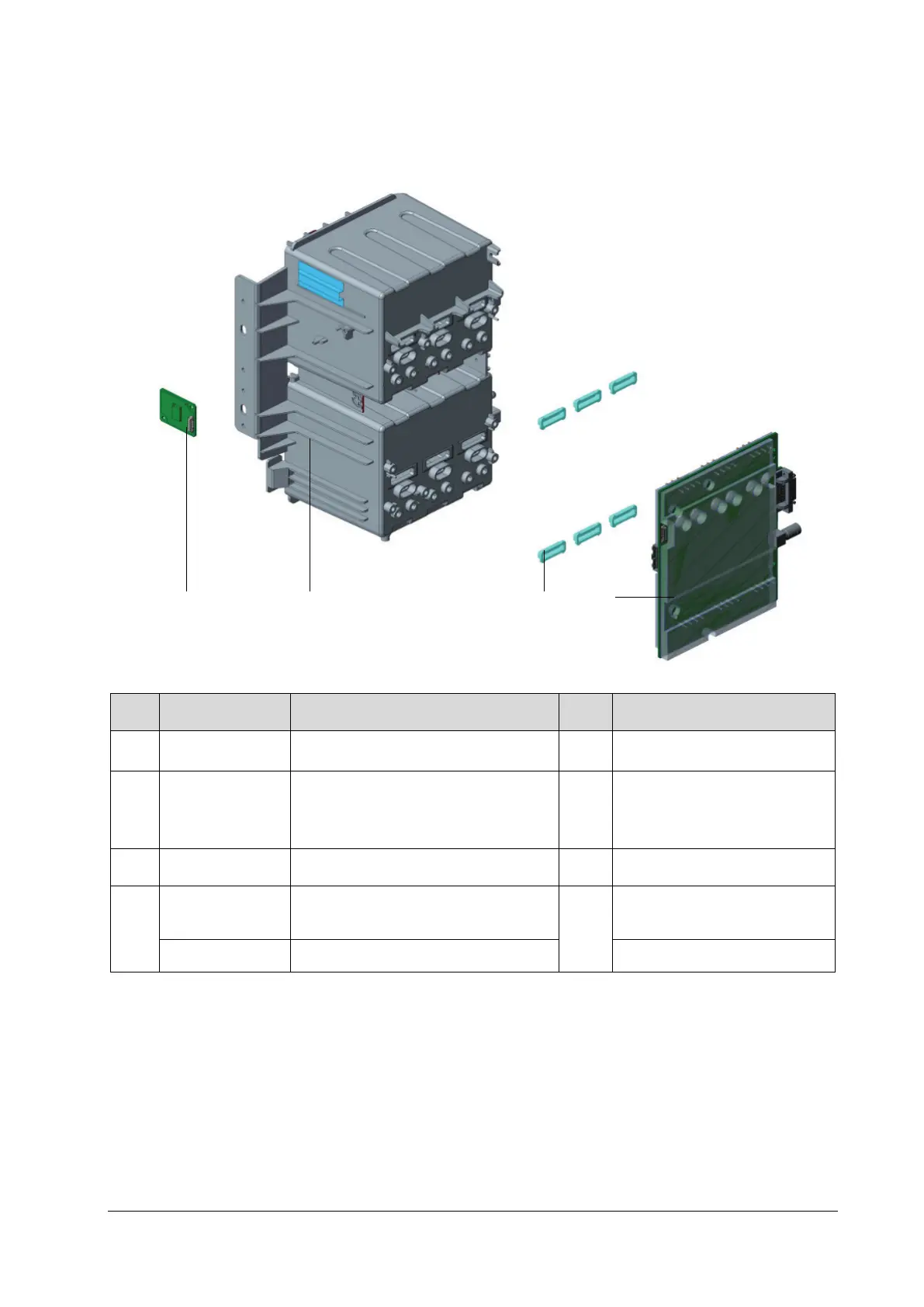

8.9.1 Exploded View
8.9.2 Parts List
No. Order Number Part Description Qty Remark
1 051-002738-00-00 MPAN carrier Board (FRU) 1 /
2 115-044546-00 N15N17 Service kit of Module Rack(FRU) 1
Infrared liens and contact screw
parts number please refer to 1.19
Others
3 049-001230-00 pogo pin cover 6 /
4
051-002734-01-00
6-Slot modular rack (FRU/3Pin_No
TDS&BNC)
1
/
051-002735-01-00 6-Slot modular rack (FRU/3Pin_TDS&BNC) /
②
①
④
③
