Method 2:
Tools required:
 Tubing
 Pressure gauge (Accuracy not less than 0.1cmH
2
O)
 Air Pump (-95~400 kPa)

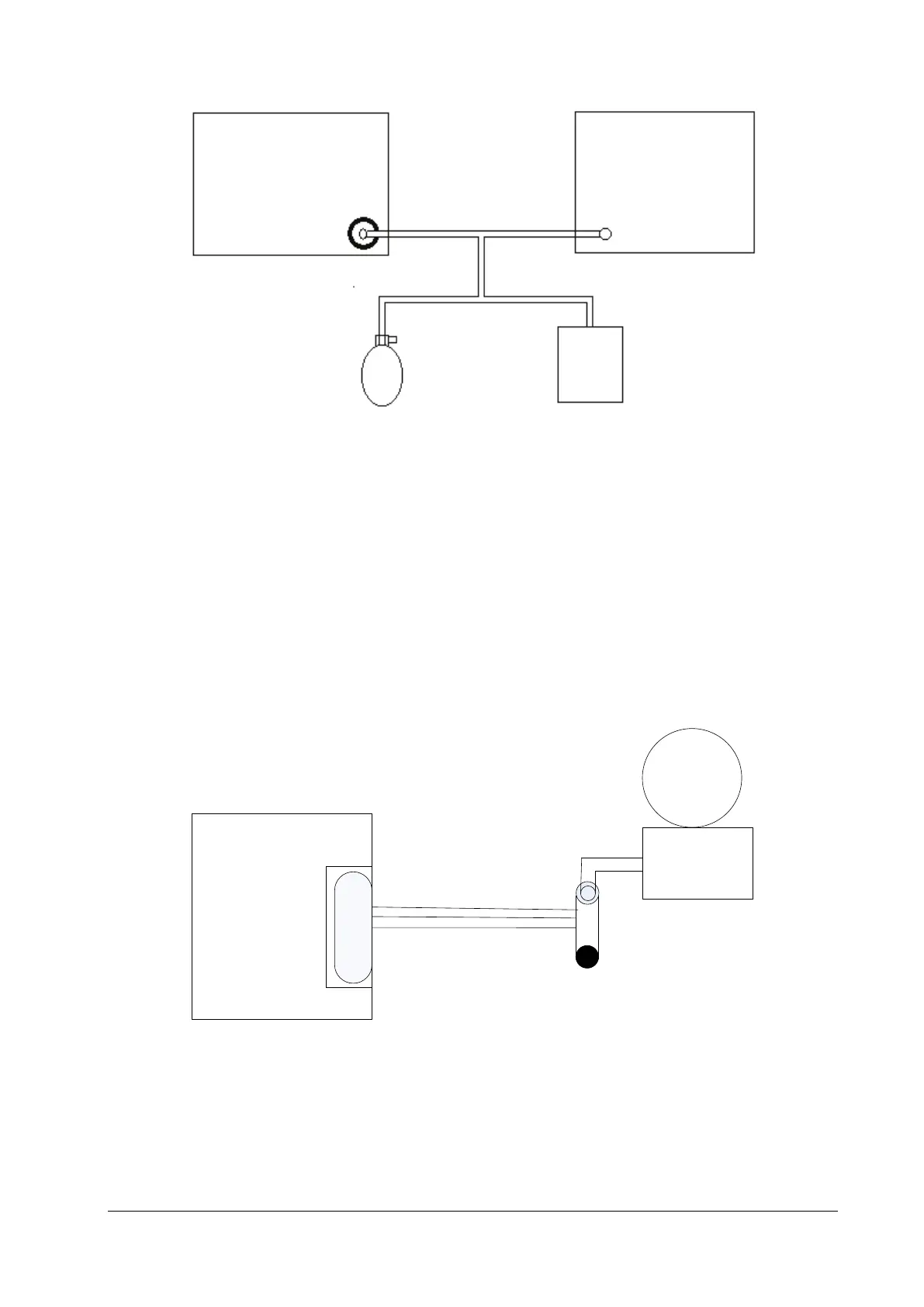

1. Connect the module, RM sensor, air pump and pressure gauge according to picture below.
2. Select monitor as mechanical ventilation mode.
3. Use air pump to inflate to -20, 0, 10, 60, 120cmH
2
O pressure, verify RM module measured airway pressure accuracy
is ±3% of reading.
Monitor
R
M
M
o
d
u
l
e
Air Pump
Pressure
gauge
RM Sensor
Gas
tubing
4.4.14 CCO/SvO
2
Tests
Interconnecting Function
Tools required:
 None.
Monitor
RM connector
Reference
manometer
RM sensor
Squeeze bulb
Rigid vessel
