8.4 N12/M12 Internal Module Rack Assembly

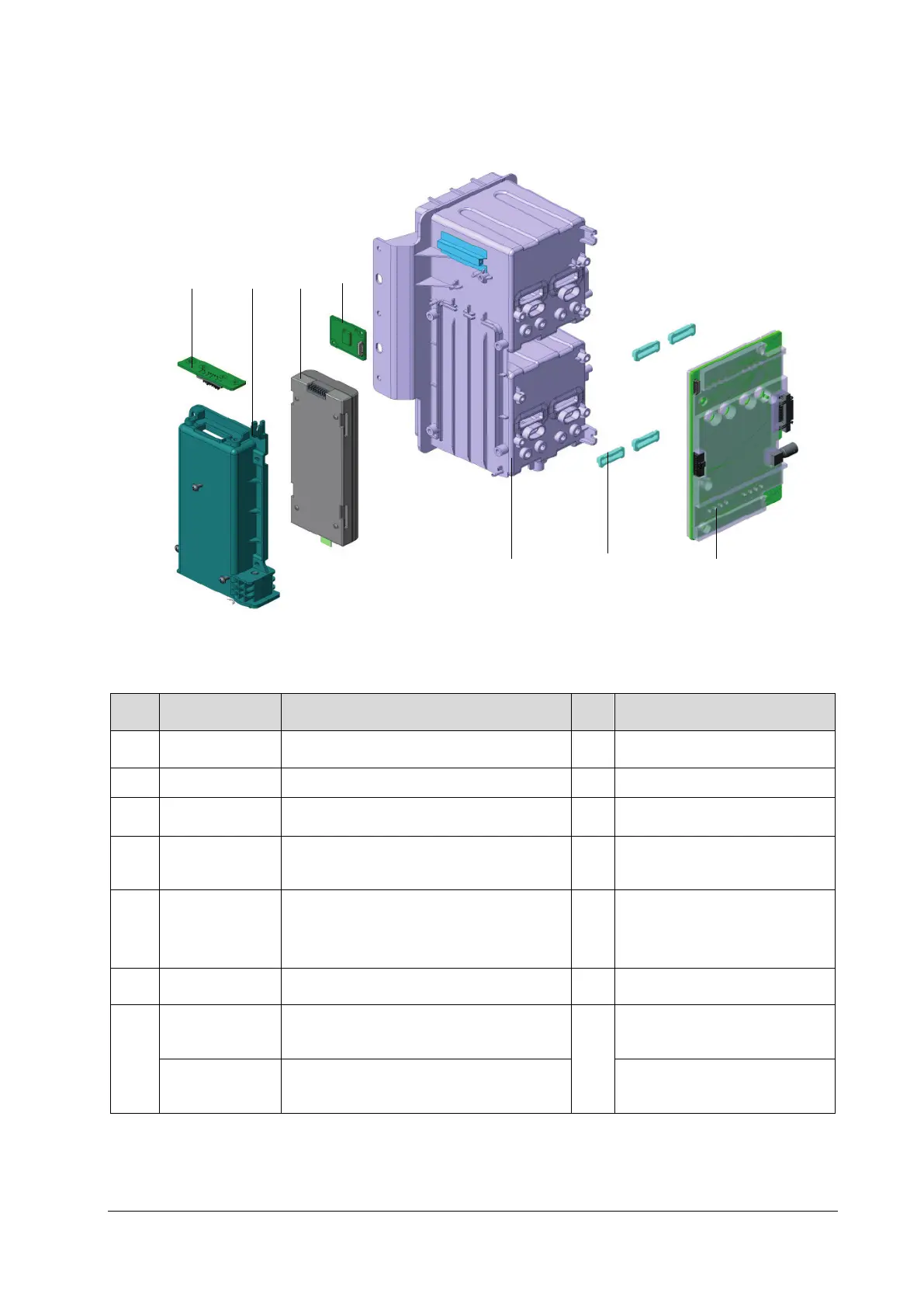

8.4.1 Exploded View
8.4.2 Parts List
No. Order Number Part Description Qty Remark
1 051-002723-00 Battery Interface Board PCBA 1 /
2 115-044504-00 N12 battery chamber assembly(FRU) 1 /
3 115-065140-00 Li-ion Bat Pack (11.1V4500mAh LI23S002A) 1 /
4
051-002738-00-
00
MPAN carrier Board(FRU) 1 /
5 115-044507-00 N12 Module rack shell assembly 1
Infrared liens and contact screw
parts number please refer to 1.19
Others
6 049-001230-00 pogo pin cover 4 /
7
051-002737-01-
00
4Slot modular rack PCBA (FRU/TDS&BNC)
1
/
051-002736-01-
00
4Slot modular rack PCBA (without TDS&BNC) /
②
①
④
③
⑤
⑥
⑦
