7.5 Further Disassembly of the Rear Case Assembly
7.5.1 Removing the Recorder

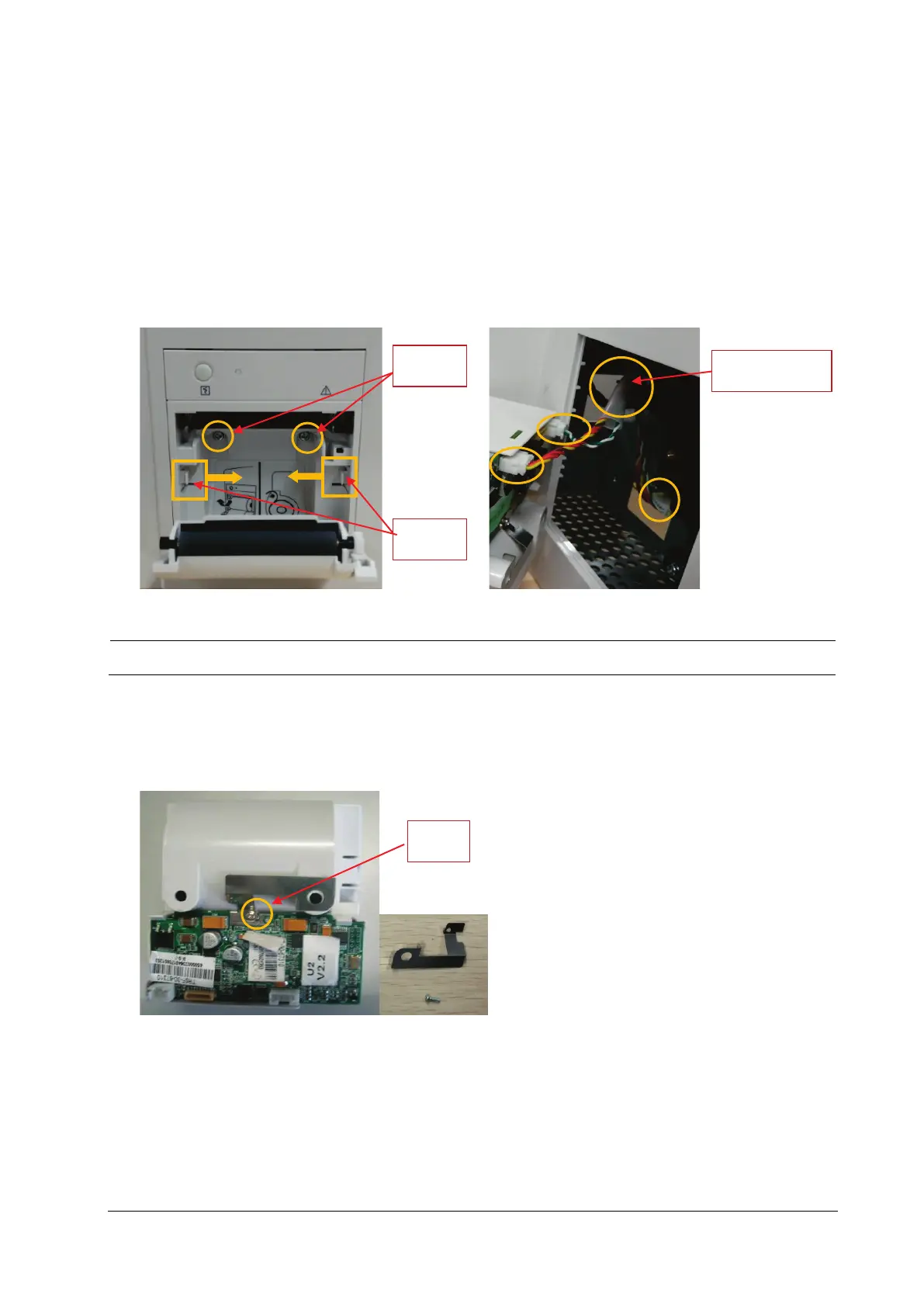

1. First open the recorder door on the right of the machine, and then unscrew the two M3×6 screws.
2. Pull the two clips in as indicated in the figure below to separate it from the rear case, and pull out the recorder at
the same time.
3. After the recorder is pulled out, take down the recorder connection line from the positioning rib, and pull out the
socket respectively. Then, the recorder can be removed.
Use proper force to remove the cable carefully lest it would be broken.
7.5.2 Further Disassembly of the Recorder
1. First remove one PT2X6 screw, and take down the grounding piece at the same time.
M3X6
Clips
Positioning rib
M2X6
