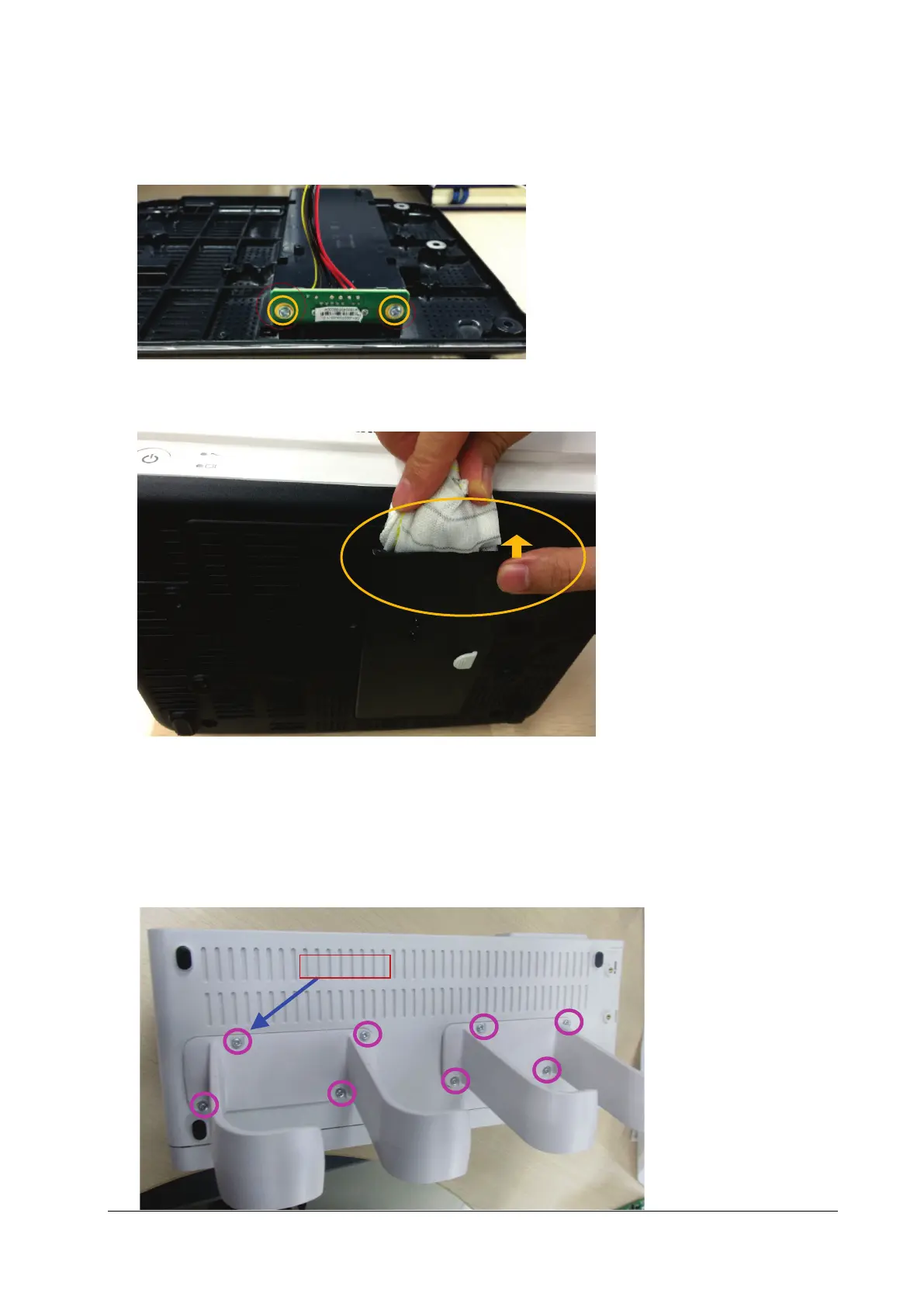

1. Loosen and remove the two M3X6 screws, and remove the battery interface board.
2. As shown below, open the battery door, insert a piece of cloth into the gap between the battery door and the base,
and forcedly press down to take out the battery door.
7.7 Disassembling the Module Rack
1. Removing the handle and hooks
As shown in the following figure, loosen and remove the eight M3X10 cross recessed countersunk head
screws, and remove the hooks.
