BeneVision N17 - N17;M17 Rear Housing View; Exploded View; Parts List

8-13

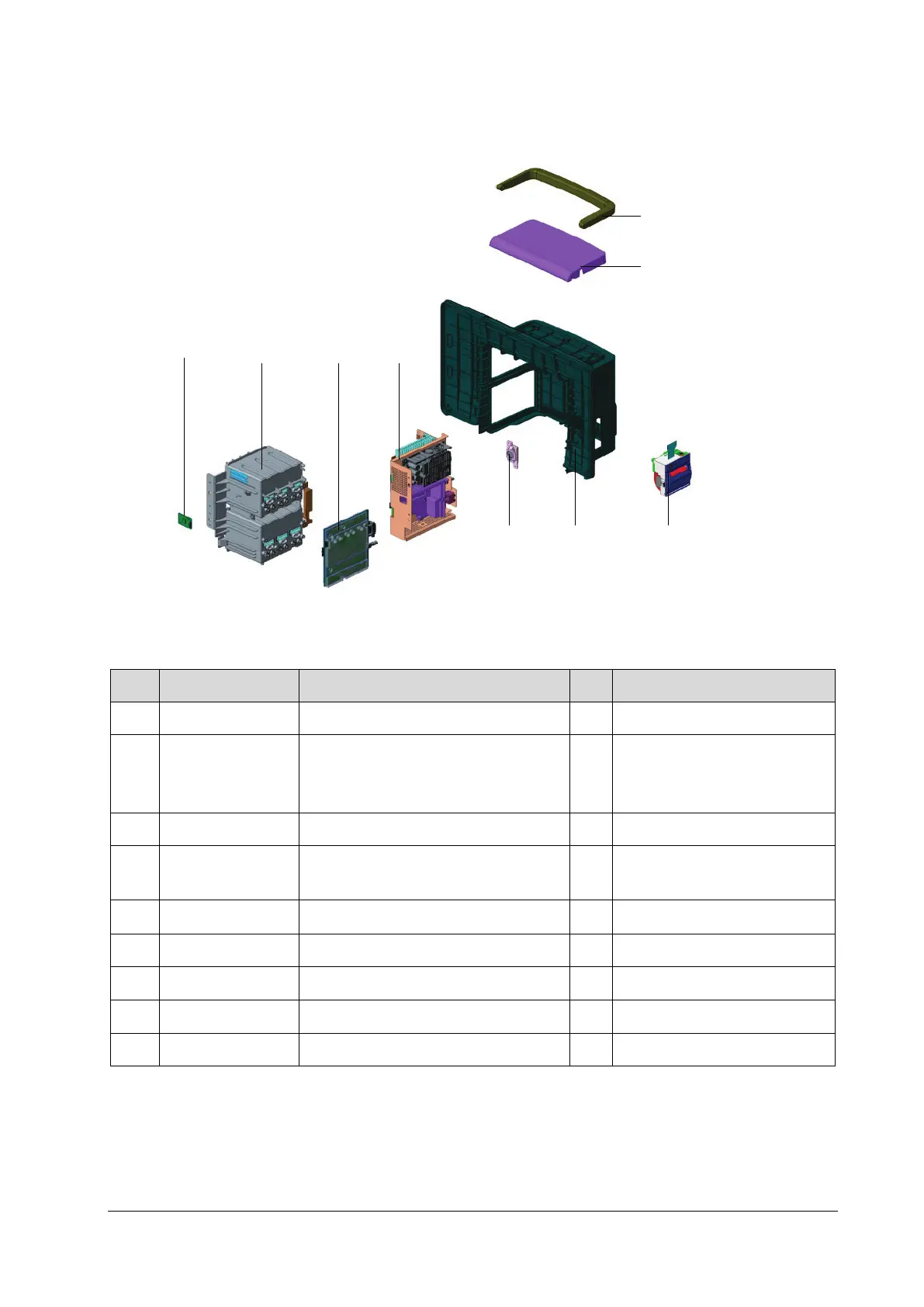

8.13 N17/M17 Rear Housing View
8.13.1 Exploded View
8.13.2 Parts List
No. Order Number Part Description Qty Remark
1 051-002738-00-00 MPAN carrier Board(FRU) 1 /
2 115-044546-00 N15N17 Service kit of Module Rack(FRU) 1
Infrared liens and contact screw
parts number please refer to 1.19
Others
3 051-002735-01-00 6-Slot modular rack (FRU/3Pin_TDS&BNC)
1
/
4 / N17 main bracket assembly 1
Refer to 1.14 N17/M17 Main
Bracket Assembly
5 115-044547-00 N15N17 Speaker assembly(FRU) 1 /
6 115-044548-00 N17 rear housing assembly(FRU) 1 /
7 115-044523-00 Recorder upgrade package 1 Include with 6800-20-50301
8 043-007661-01 N17 Top cover-ESM 1 /
9 115-044549-00 N17 handle assembly(FRU) 1 /
⑧
②
①
④
③
⑤
⑥
⑦
⑨
