7-26

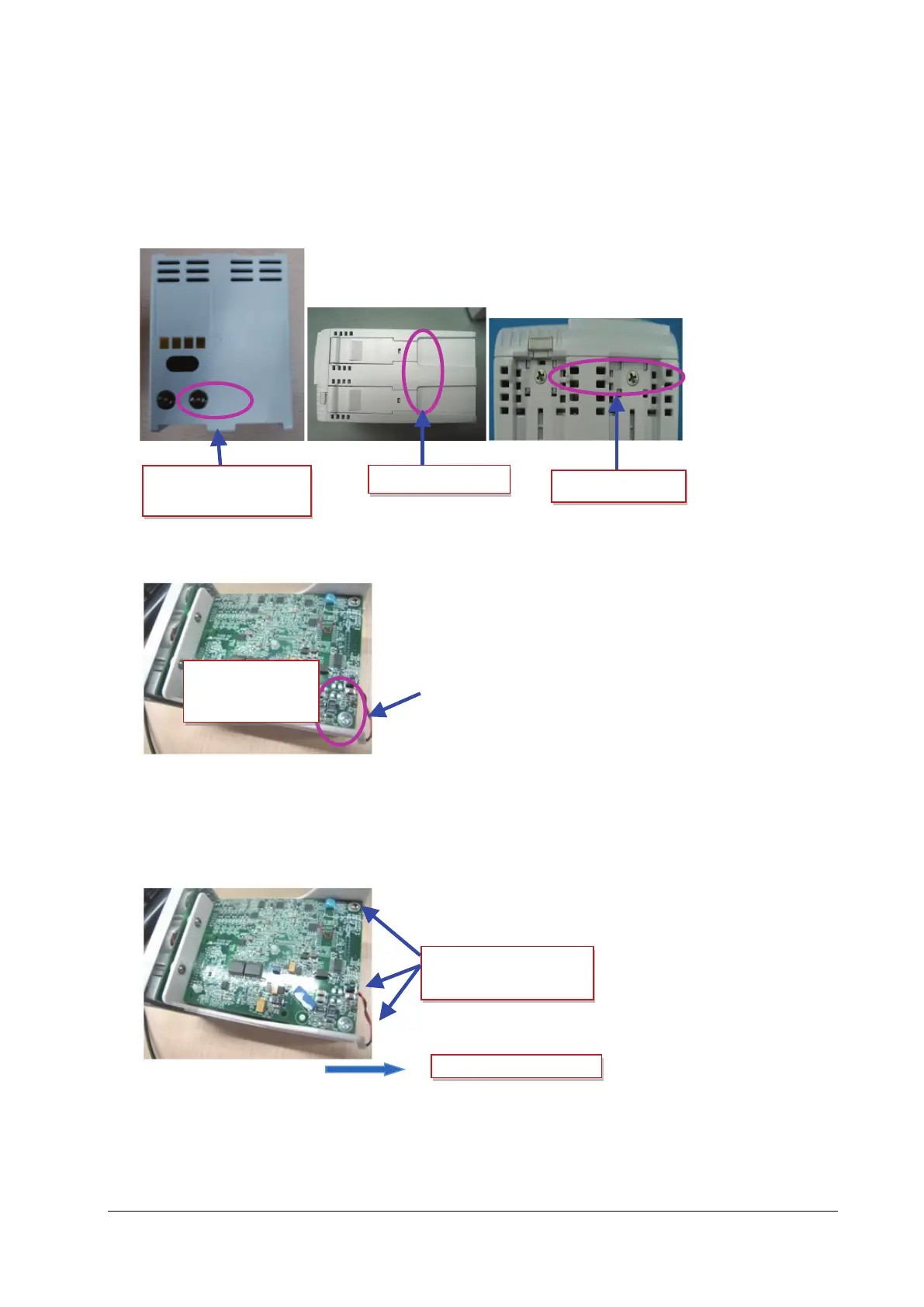

7.8 Disassembling the M51C Module
1. Removing the front panel assembly
As shown in the figure, use a tweezers to remove the screw for the back end terminal of the module; use a
small flat-bladed screwdriver to remove the wrench; use a Phillips screwdriver to remove the front panel
screw. Then, the front panel of module can be pulled out.
As shown in the following figure, loosen and remove the screw between the front panel and the bracket, and
unplug the air tube at the air nozzle. Then the front panel can be removed.
2. Remove the parameter board
As shown in the following figure, loosen and remove the board screws, pull out the pump and valve connection
line and NIBP air tube. Then, the parameter board can be removed.
3. Removing the blood oxygen board
As shown in the following figure, remove the blood oxygen board screws, and then pull out the blood oxygen board.
tweezers to remove the
Parameter board screws and
connection line
Pull out along this direction
