7.5.6 Removing the Main Support Assembly
N12/M12

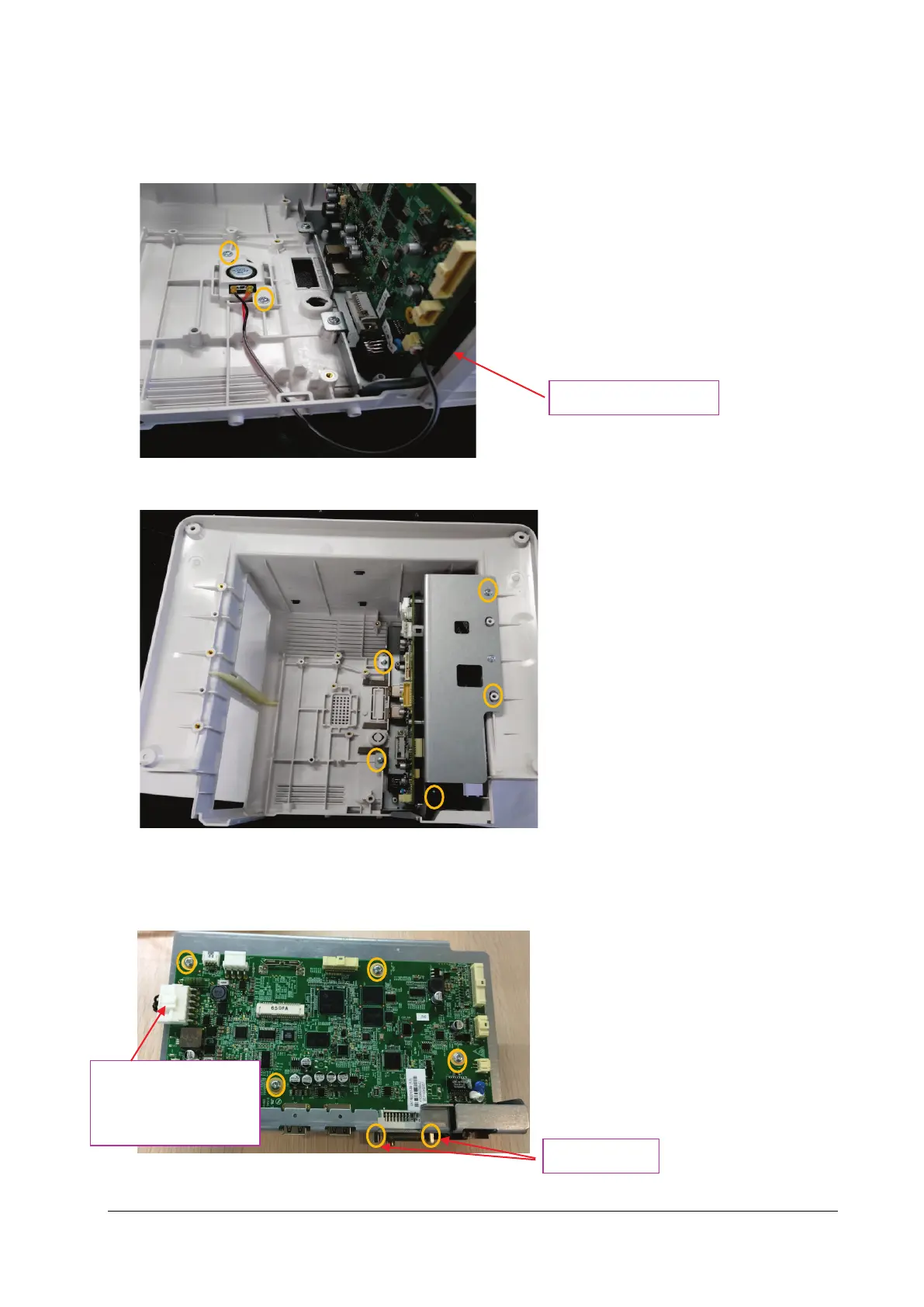

1. Pull out the speaker connection line, unscrew the two M3X6 screws, and take down the speaker assembly.
2. Loosen and remove the five M3X6 screws, and vertically take out the main support assembly.
3. As shown in the figure below, place the face of the removed main board of main support up, pull out the
connection line from the main control board to the ACDC and insert it in the main board end, unscrew the two DVI
stud screws and four M3X6 screws, and then take out the main control board.
Speaker connection line
Connection line from the
main control board to
the ACDC
