7-17

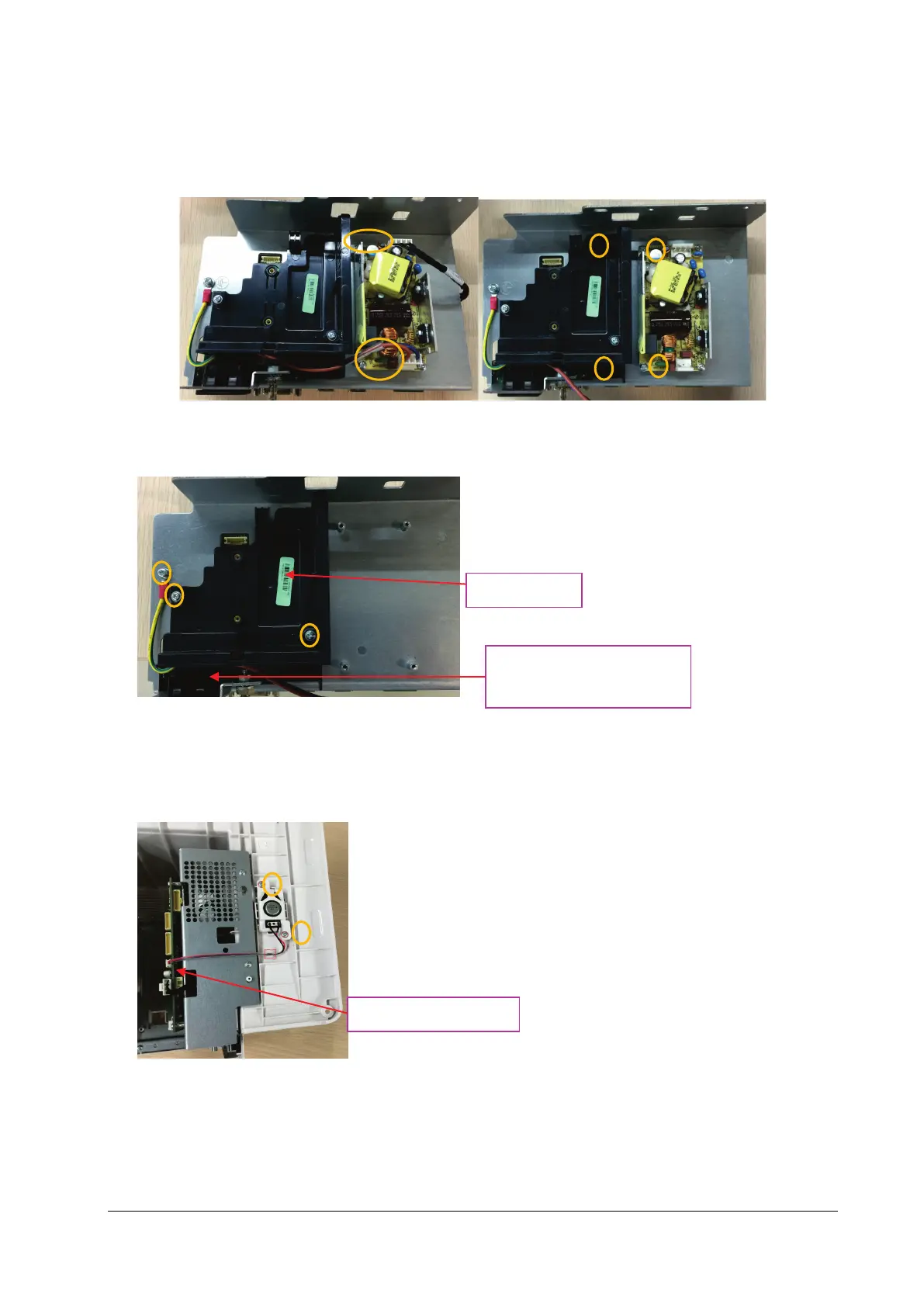

4. Turn over the main support with the main control board removed, and place its face up; remove the connection
line from the main control board to the ACDC, and insert it into the ACDC power supply end; remove the power
cord from the AC input to the ACDC, and insert it into the ACDC power supply end; unscrew four M3X6 screws, and
take down the power board.
5. Loosen and remove two M3X6 screws, and take out the recorder cover; unscrew one M3X6 screw, and take out the
power cord from the AC input to ACDC.
N15/M15/N17/M17
1. Pull out the speaker connection line, loosen and remove the two M3X6 screws, and take down the speaker
assembly.
2. As shown below, for the N15/M15 series machine, loosen and remove the five M3X6 screws, and vertically take out
the main support assembly.
Speaker connection line
Recorder cover
Power cord from the AC input
to ACDC
To Next Page
