7-5

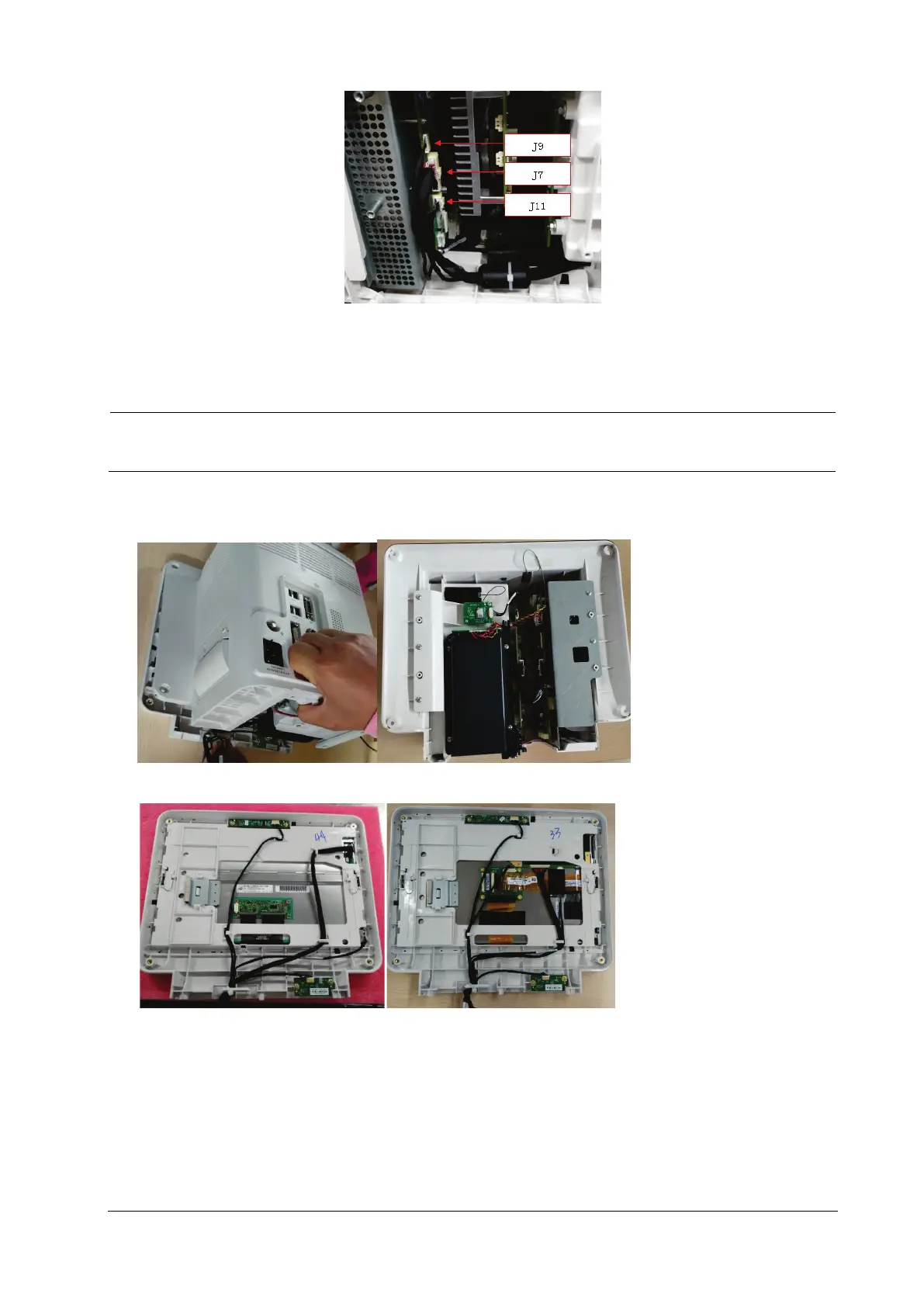

2. Lift the rear case assembly to separate it from the front case assembly.
As shown in the above figure, there are two types of front case assemblies (NLT and SHARP), which are
different in the cabling way.
N12/M12
(N12/M12 rear case assembly)
(N12/M12-NLT front case assembly) (N12/M12-SHARP front case assembly)
To Next Page
