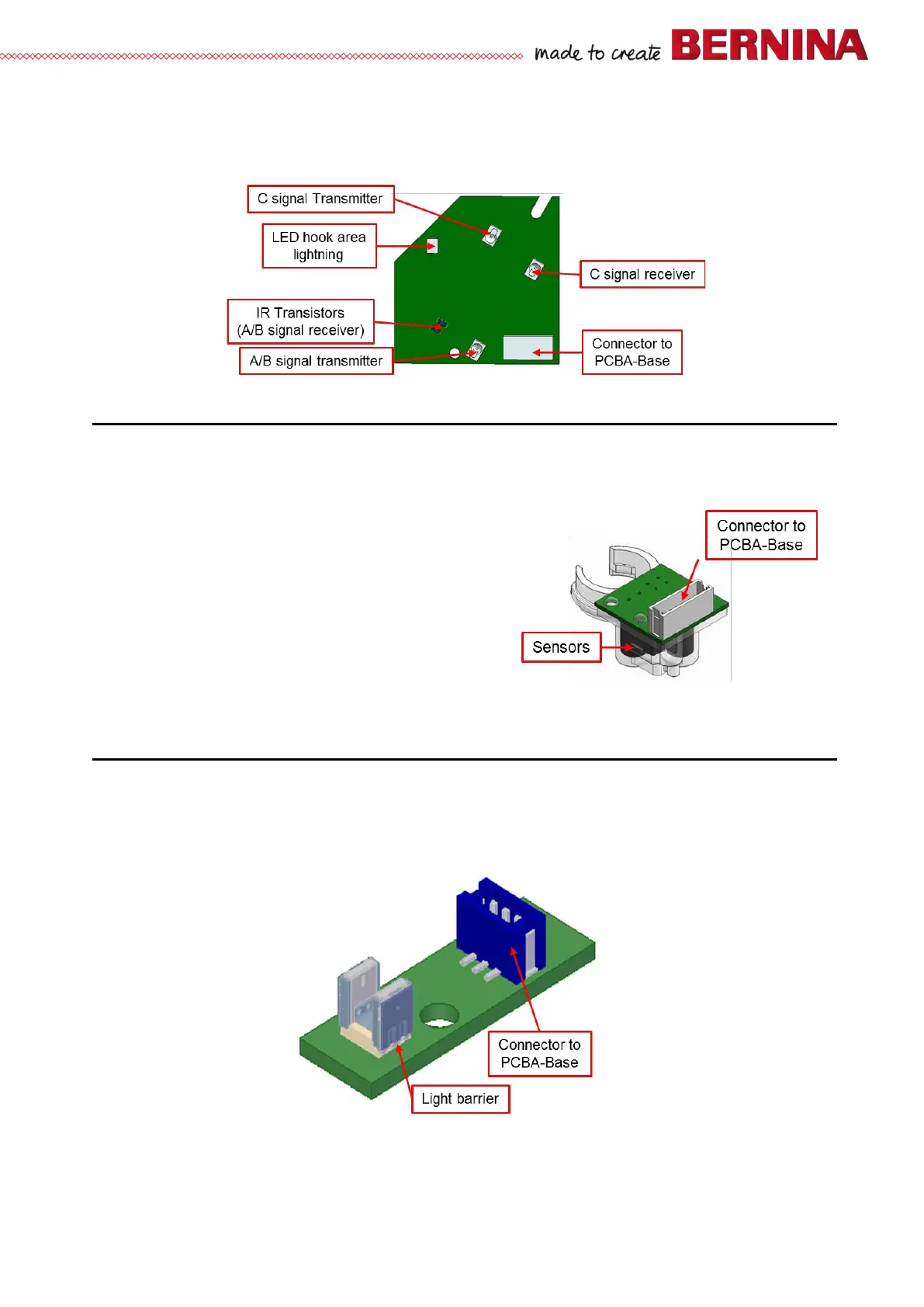

2.8 PCBA-Lower-Thread Observer (LTO)
2.9 ABC sensor support (presser-foot recognition)
The ABC sensors support contains:
• Infrared (IR) LEDs
• Phototransistors
Connecting
• According to picture
Task
• Recognition of presser feet and
buttonhole foot signal via sensors.
2.10 PCBA Embroidery module detection (B 590, B 570 B 540 B 535)
