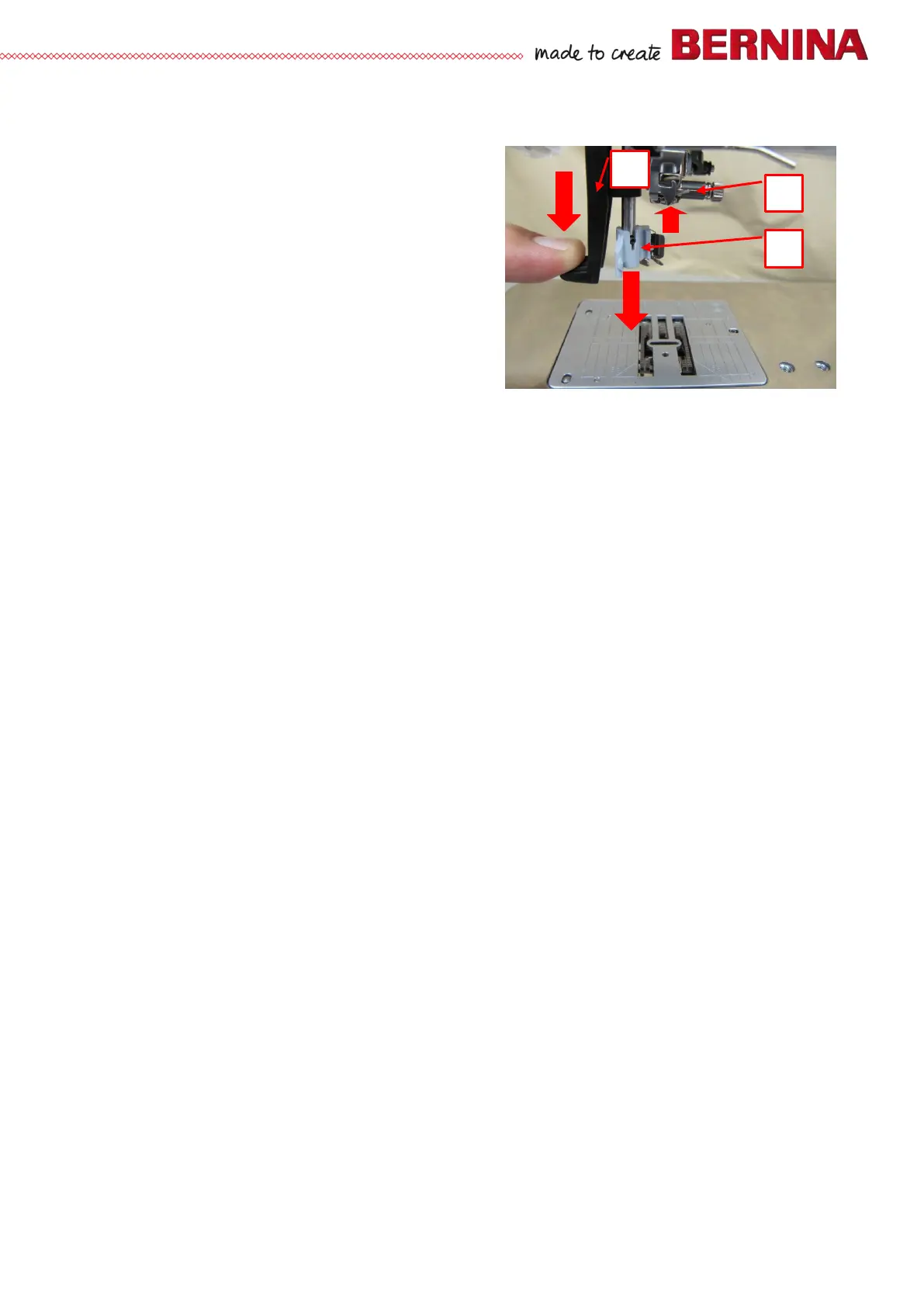

4.4.16.1 Threader head
Disassembly:
• Set needle bar a to its top position.
• Remove needle.
• Move needle threader holder b down a little.
• Slide threader head c off threader bar.
Assembly:
• Push threader head c onto threader bar in correct
position.
• Release needle threader holder b.
• Insert needle.
• Functional check.
• Adjust threader if necessary (see 5.9).
%
c
b
a
