BERNINA International AG Seestrasse 161 CH-8266 Steckborn Schweiz Seite 37 von 172
DRAFT – VERSION
Chapter 4 – Removal and Refitting of Components
4.1 Covers See ESD-related note
4.1.1 Service Cover
Disassembly:

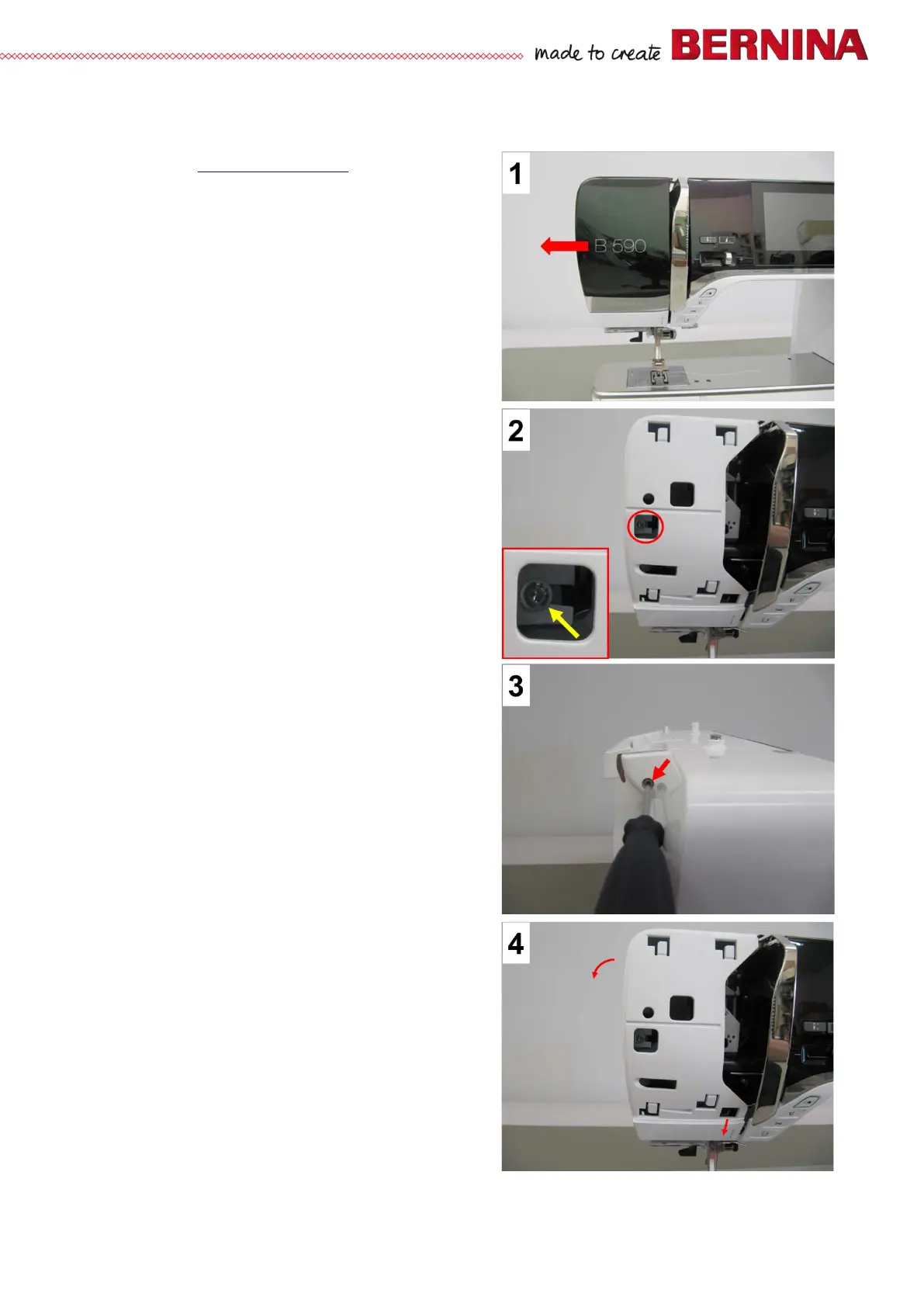

• Picture 1 - Slide service cover to left to remove.
• Picture 2 - Untighten fastening screw (T10) in
head area by 2 to 4 rotations.
• Picture 3 - Remove fastening screw in thread-
redirection/pre-tensioner area on head cover.
• Picture 4 - Carefully pull head cover to front and
out, spreading it a little at the bottom right area.
Assembly:
• Carefully pull head cover over machine head.
IMPORTANT: Doing this, take care of the spring
locks, especially the latch in the head frame (pict in
bottom left corner in pict 2).
• Firmly push head cover in place. Carefully
retighten screw in head area (pict 2).
• Refit fastening screw in thread-redirection/pre-
tensioner area and retighten carefully (pict 3).
• Insert service cover into respective openings, then
slide to right (pict 1)
