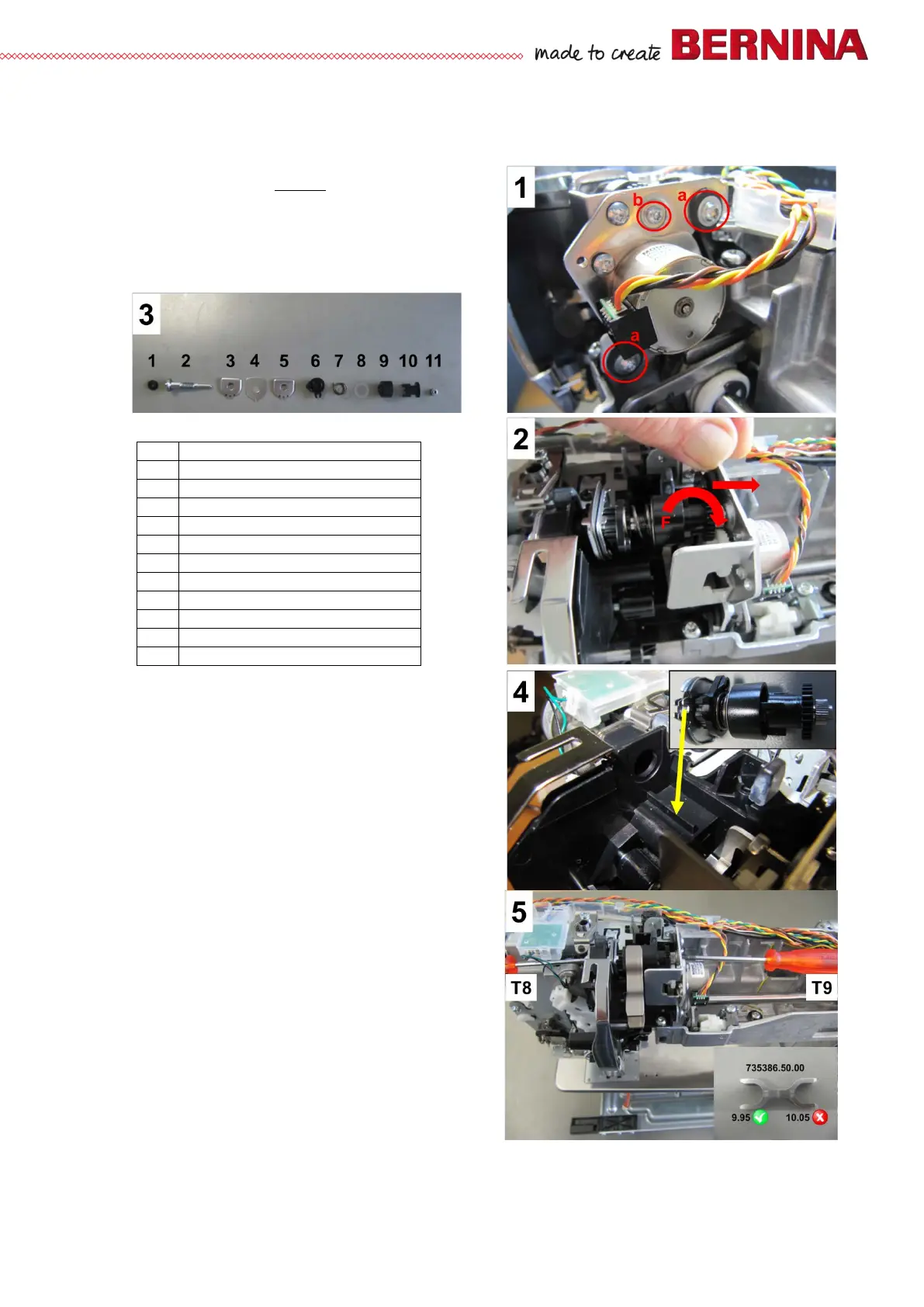

4.3.17 Thread tension
Disassembly:
• Remove the covers (see 4.1
).
• Picture 1 - Untighten screw a by 2 rotations.
Remove screw b.
• Picture 2 - Push stepping-motor carrier to right in
direction of arrow. Then lift thread tension out.
• Picture 3 -
Assembly:
• Picture 3 - Reassemble upper-thread tension in this
order.
• Picture 4 - Turn tension discs closed until guiding
slots match. This will make it easier to fit them onto
the guide rail.
• Picture 2 - Push stepping motor to right in direction
of arrow. Then refit thread tension.
• Picture 1 - Refit and retighten screw b.
• Picture 5 - Using distance gauge 735386.50.00,
reset to mechanical basic setting.
No.
Parts
1
Rubber mount
2
Thread tension axis
3
Left tension disc
4
Centre tension disc
5
Right tension disc
6
Buffer with position retainer
7
Tension spring
8
Washer
9
10
Drive wheel
11
Spacer
