4.1.5 Base-plate cover
Disassembly:

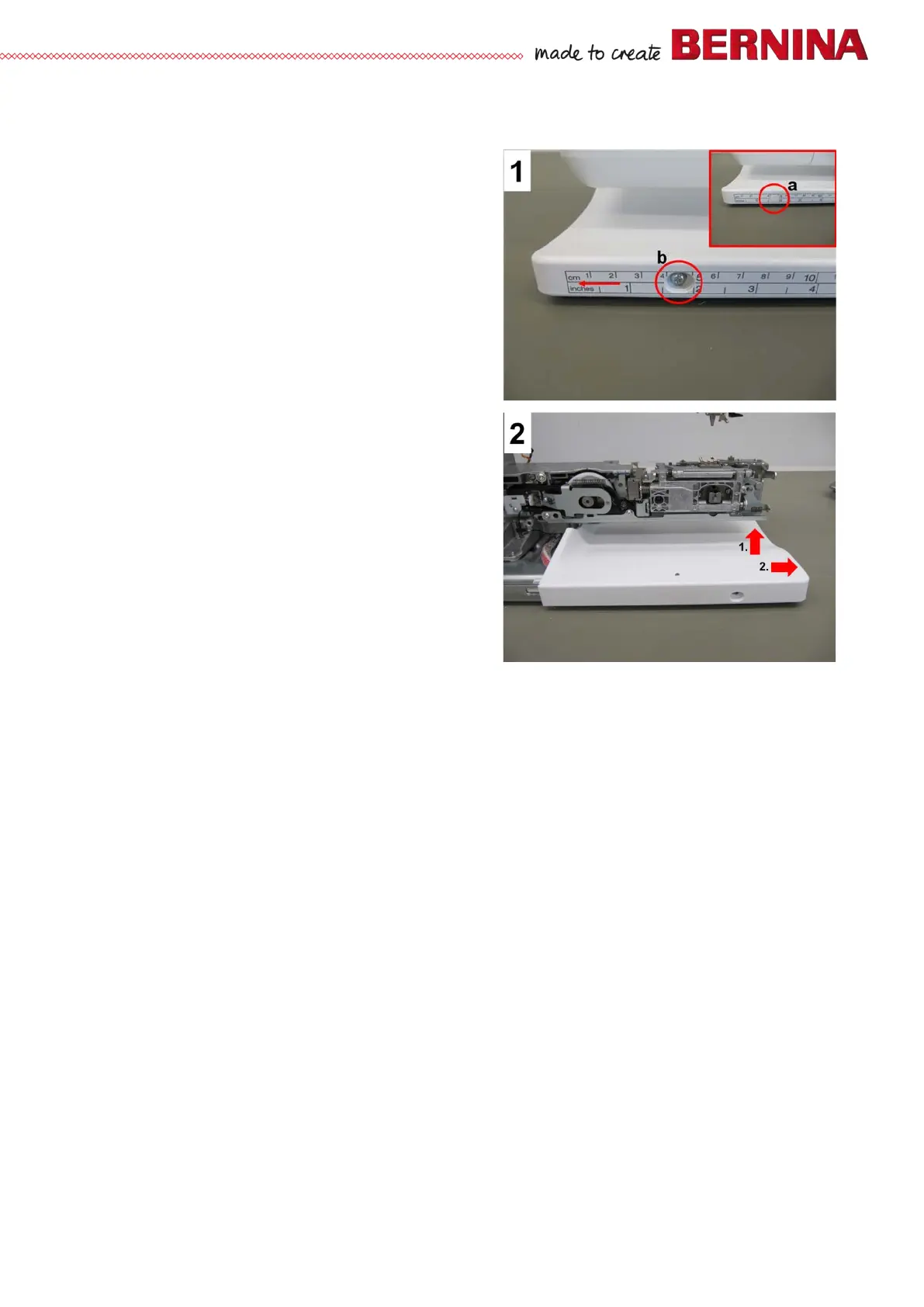

• Picture 1 - Remove left and right screw covers a
from the base plate cover. Remove fastening
screws b (T10M3 X 8).
• Picture 2 - Lift base plate cover (1.), then pull off
(2.).
Assembly:
• Carefully slide and position base-plate cover under
freearm.
• Refit (but don’t tighten them yet) fastening screws
b (T10) on left and right.
• Only after refitting the rear cover and front cover,
slide base-plate cover into final position and
retighten fastening screws b. Refit the screw
covers a into the left and right long hole.
