Bernina B 570 - Needle Clamp

BERNINA International AG Seestrasse 161 CH-8266 Steckborn Schweiz Seite 76 von 172
DRAFT – VERSION

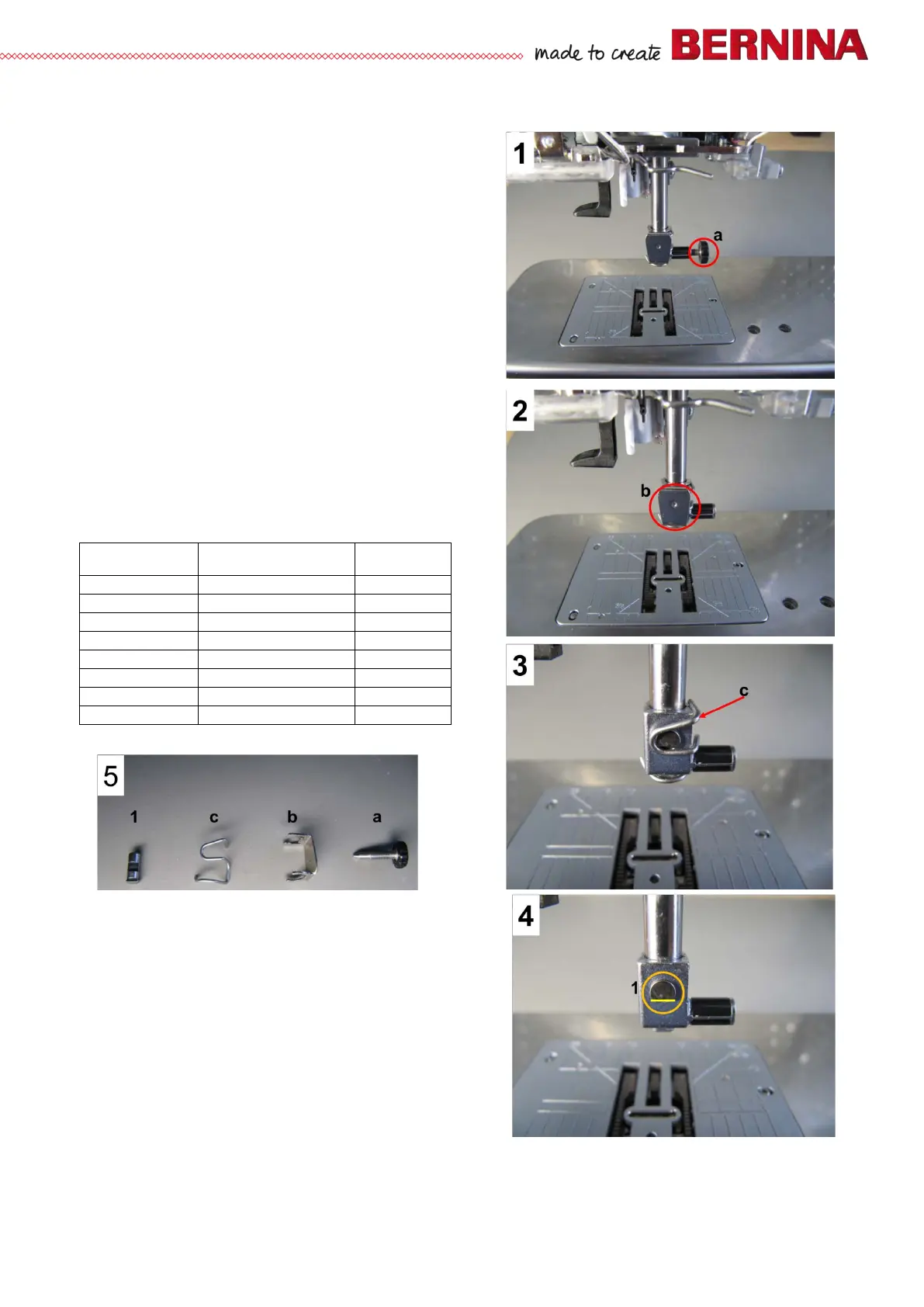

4.3.15 Needle clamp
Disassembly:
• Remove presser foot and needle.
• Remove needle clamp screw a.
• Remove thread guide clamp b.
• Remove thread guide wire c.
• From behind, push out needle stop pin 1 using a
small screwdriver.
Assembly:
• Properly refit respective needle stop pin 1 (flat side
down).
• Position thread guide wire c and hold.
• Add and engage thread guide clamp b.
• Refit needle clamp screw a.
• Refit needle and presser foot (if appropriate).
Needle stop pin table
Item no. Name
Dimension
in mm
036687.50.00
Needle stop pin
2.2
036687.50.01
Needle stop pin
2.4
036687.50.02
Needle stop pin
2.6
036687.50.03
Needle stop pin
2.8
036687.50.04
Needle stop pin
3.0
036687.50.05
Needle stop pin
3.2
036687.50.00
Needle stop pin
3.4
036687.50.07
Needle stop pin
3.6
