Bernina B 570 - Position of Head-Frame Plate;Stitch Plate in X-Direction

BERNINA International AG Seestrasse 161 CH-8266 Steckborn Schweiz Seite 89 von 172
DRAFT – VERSION
031563.50.00
e
e

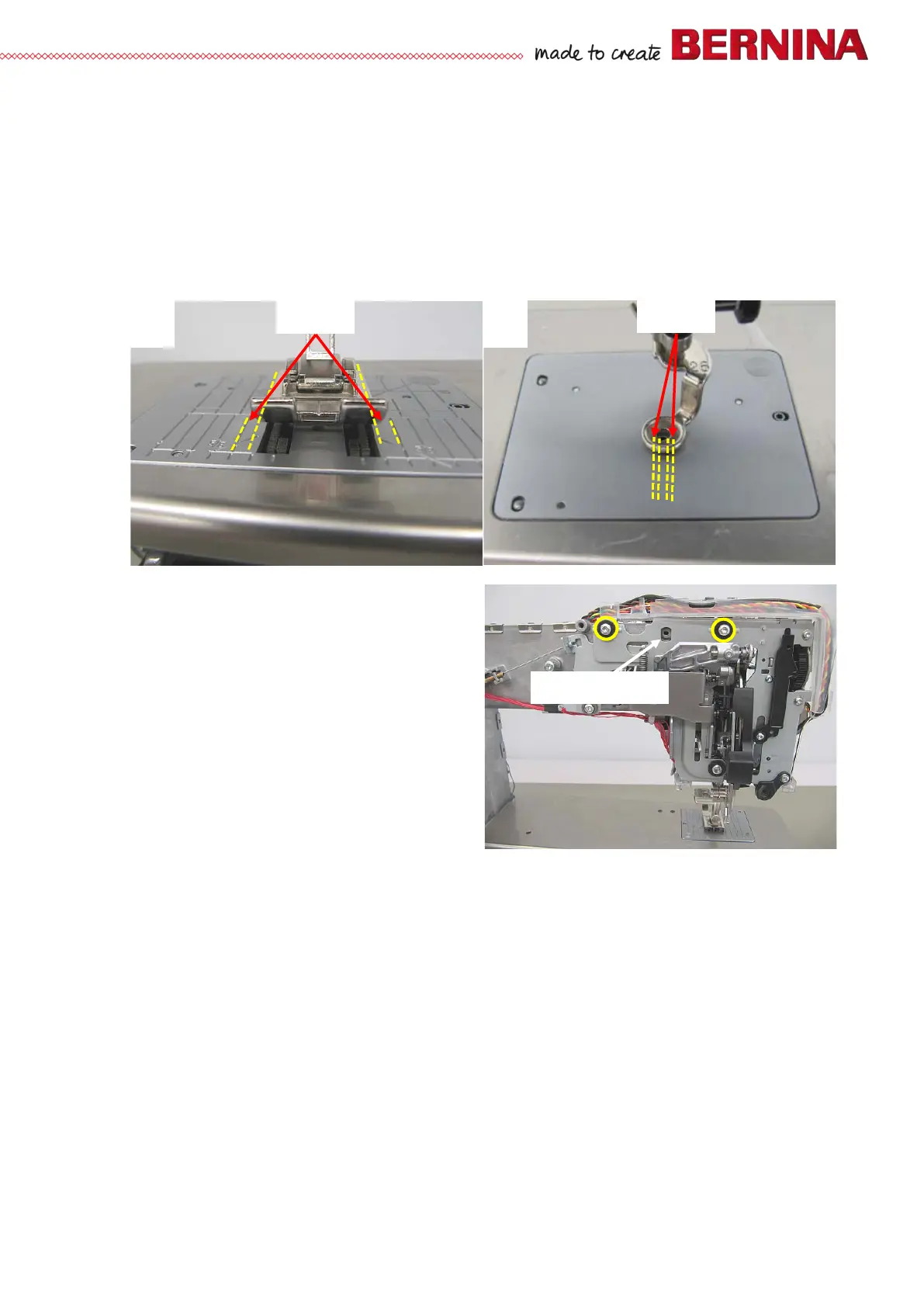

5.2.2 Position of head-frame plate/stitch plate in X-direction
Check embroidery machine (pict. C):
• Remove needle.
• Attach stitch plate.
• Attach presser foot 26.
• Lower presser foot.
• Set needle bar to BDC.
• The distance between sides of presser foot and stitch plate must be the same left and right.
Check sewing-/embroidery machine (pict. D):
• Remove needle.
• Attach stitch plate.
• Attach presser foot 1 or 1C.
• Lower presser foot.
• The distance between sides of presser foot and
stitch plate must be the same left and right.
Adjustment:
• Raise presser foot ca. 1mm from stitch plate.
• Slightly untighten two screws e (T20 M4x16).
• Use setting excenter 031563.50.00 to bring
head-frame plate into position.
• Retighten two screws e.
Dist. =
C
D
Dist. =
