21.7 Additional flexible Pt 100 temperature sensor (available via BINDER
INDIVIDUAL customized solutions)
An additional flexible temperature sensor Pt100 allows measuring the temperature of the charging materi-
al by means of an independent measuring system utilizing Pt 100 entry. The Pt 100 sensor’s top protective
tube can be immersed into liquid substances
Pt 100 Sensor
PIN 1: Pt 100
PIN 2: Pt 100
PIN 3: Pt 100
DIN socket (5)
DIN plug
A suitable DIN plug is enclosed.

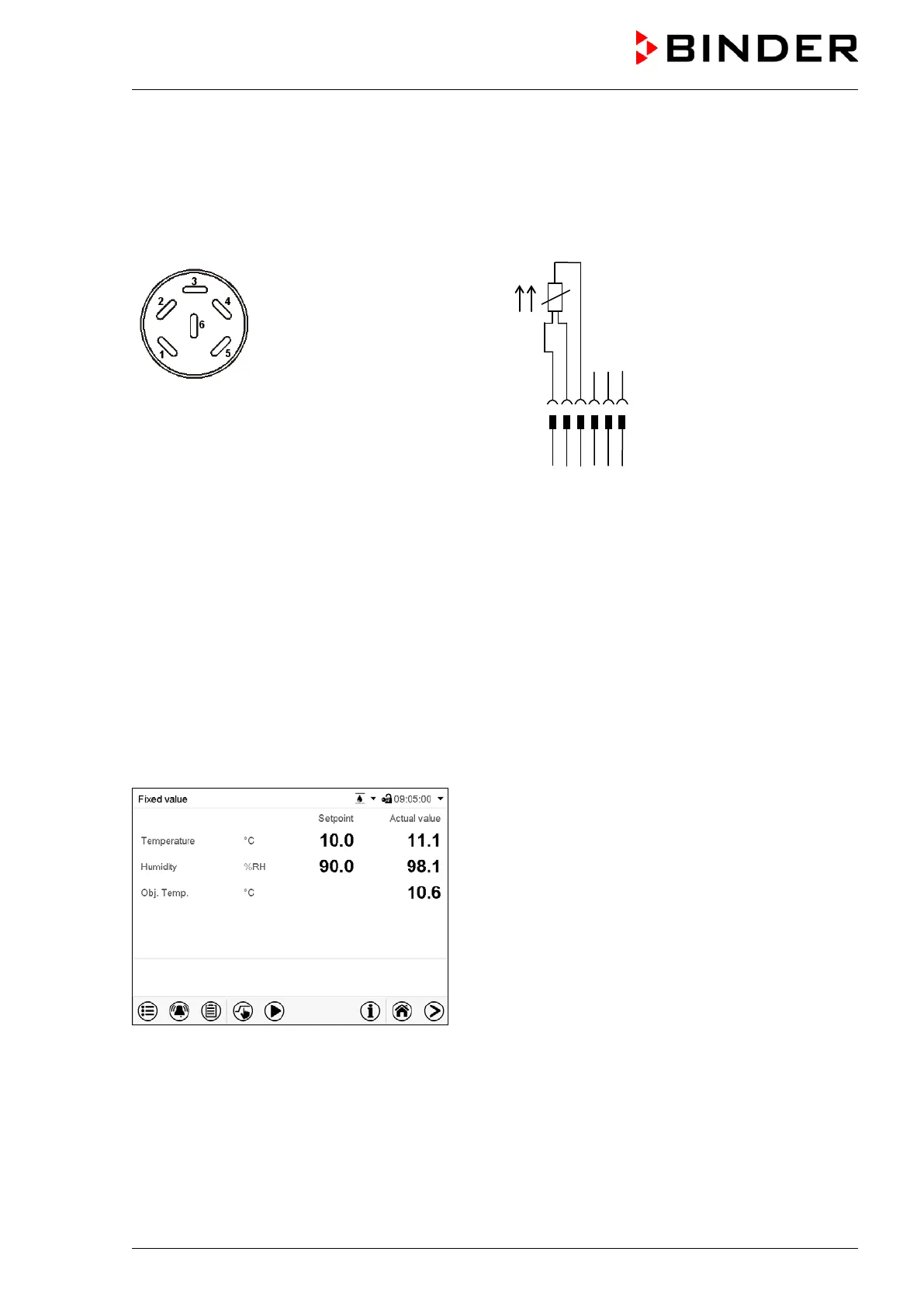

Figure 35: Pin configuration of the DIN socket (5) in the right lateral control panel
Technical data of the Pt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube with a length of 45 mm / 1.78 in, material no. 1.4501
21.8 Object temperature display with flexible Pt 100 temperature sensor (option)
The object temperature display enables the determination of the actual temperature of the charging mate-
rial during the whole process. The object temperature is measured via a flexible Pt100 temperature sen-
sor and can be viewed on the controller display. You can immerse the sensor top protective tube of the
flexible Pt 100 into liquid substances.
Normal display with object temperature display
(sample values)
The object temperature data are put out together with the data of the temperature controller and can be
documented by the communication software APT-COM™ (option, chap. 21.1) developed by BINDER.
Technical data of the Pt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608°F
• Stainless steel protective tube with a length of 45 mm / 1.78 in, material no. 1.4501
