KBF P + KBF LQC + KBWF (E6) 11/2016 page 39/189

5.2 Display views: Normal display, program display, chart-recorder display

Press the Change view icon to toggle between normal display, program display and chart-

recorder display.

Press the Normal display icon to return from program display and chart recorder display back to

Normal display.

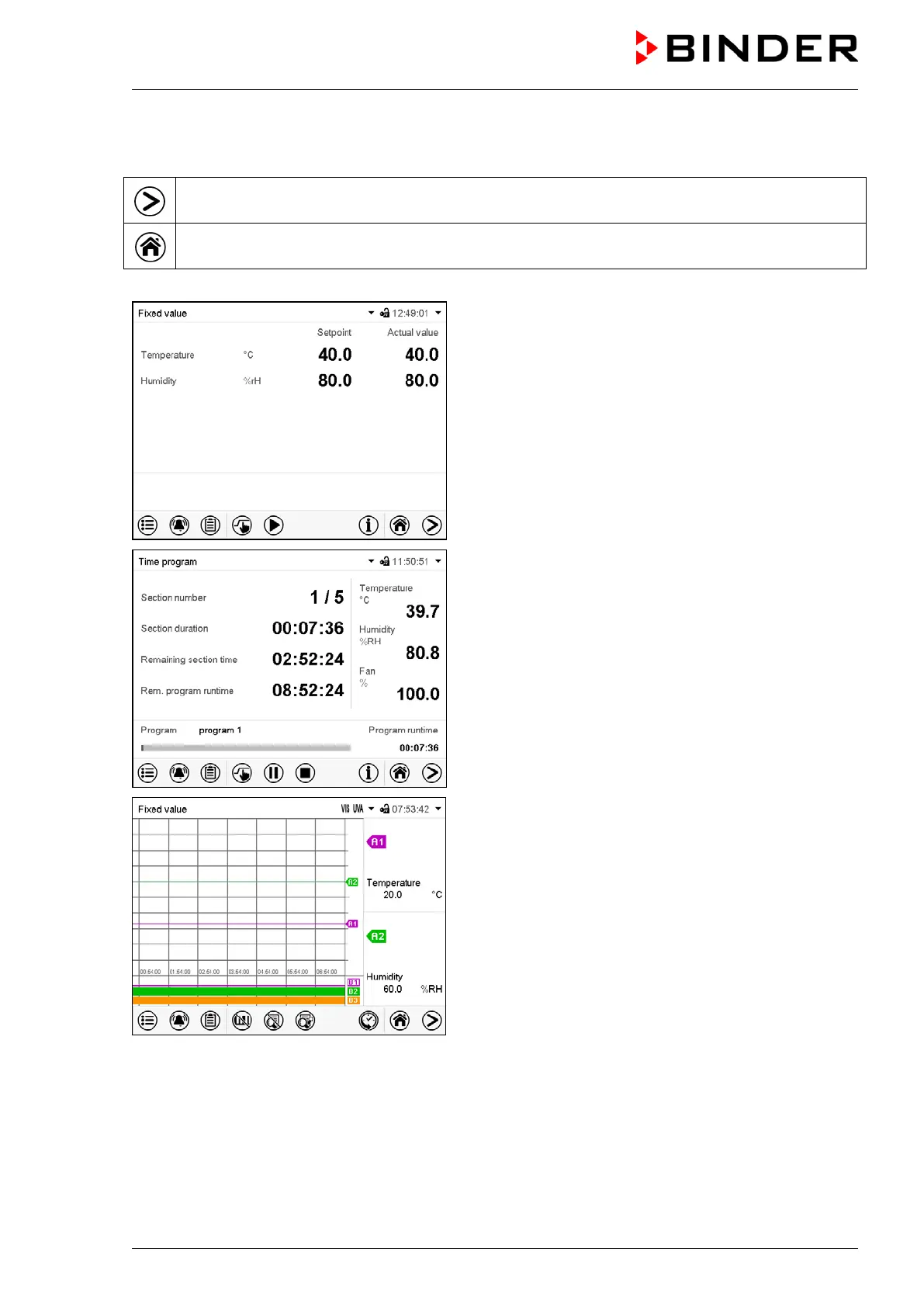

Normal display (actual values / setpoint values)

(example: KBF P / KBWF)

Program display (example: time program)

Chart recorder display
