21.9.3 Mounting with wastewater recycling
When the chamber interior is clean, you can reuse the wastewater from the chamber. Connect the
wastewater connection “OUT” (14) of the chamber with the freshwater hose connection (18) of the fresh-
water can. The wastewater can is not used in this case.
CAUTION
Soiling of the vapor humidification system.
Damage to the chamber.
Reuse wastewater ONLY with a clean chamber interior.
In case of soiling / contamination of the interior, conduct the wastewater to the
wastewater connection or use the wastewater can.
(1) Fixing of the freshwater can (if required)
Hang the can with its holding device on its 4 carriers. You can install it either at the left or the right
side.
(2) Cable connections of the freshwater can
Connect the plug of the cable to the socket (10) at the rear of the chamber as described in chap.
21.9.1.
(3) Hose connections
Plug the wastewater hose into the hose connection (18) of the freshwater can and secure it with a
hose clamp. You can use a part of the standard supplied water hose.
Plug the free hose edge to the wastewater connection “OUT” (14) at the rear of the chamber and
secure it with a hose clamp.
Hose connection of the freshwater can (18)

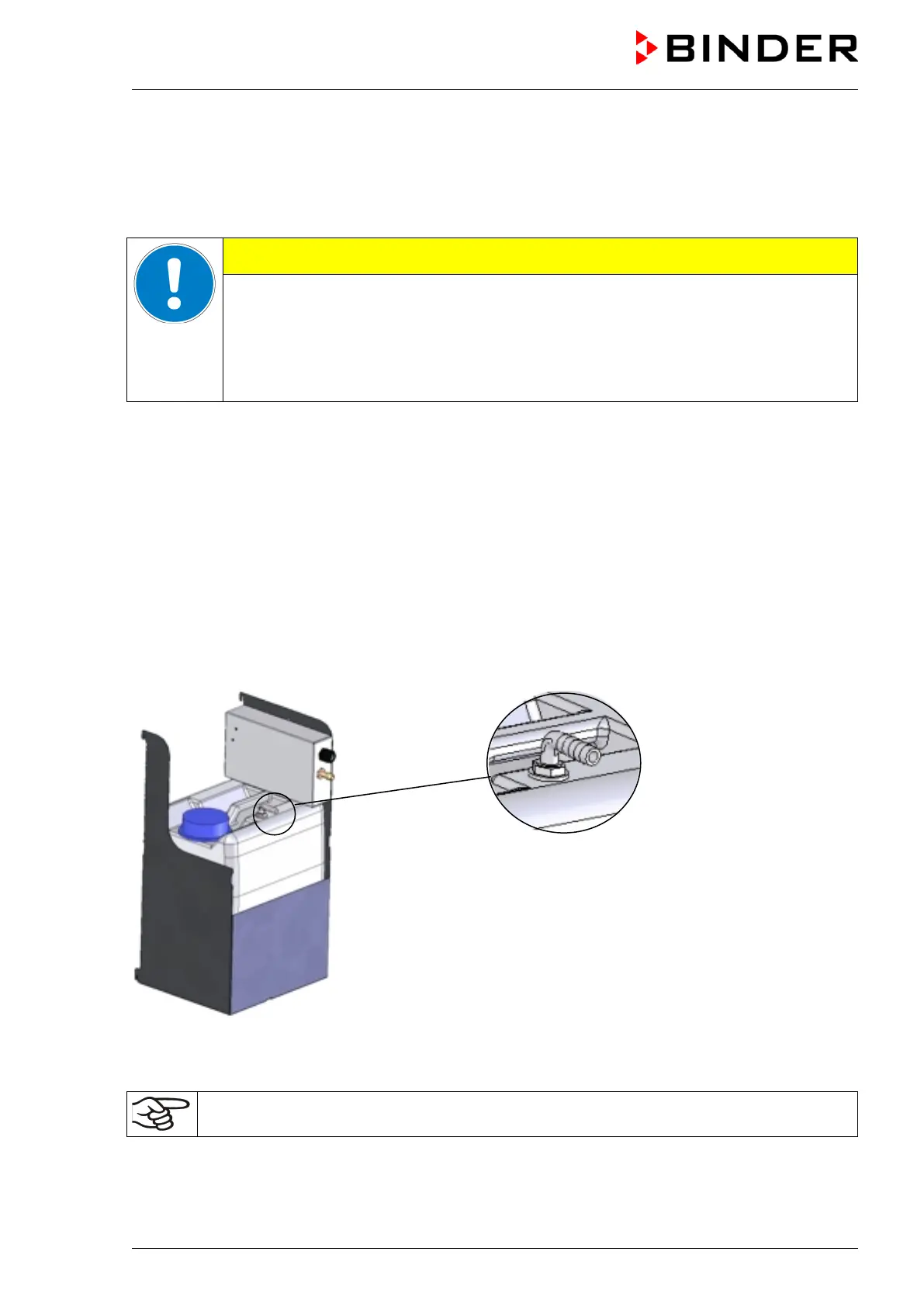

Figure 40: Freshwater can (option)
Bringing a source of humidity into the inner chamber may increase wastewater production.
Regularly check the filling level of the freshwater can.
