(2) Cable connections
Connect the plug of the cable to the socket (10) at the rear of the chamber.
The socket (10) is marked with a sticker:
Socket (10)
(14)
(13)

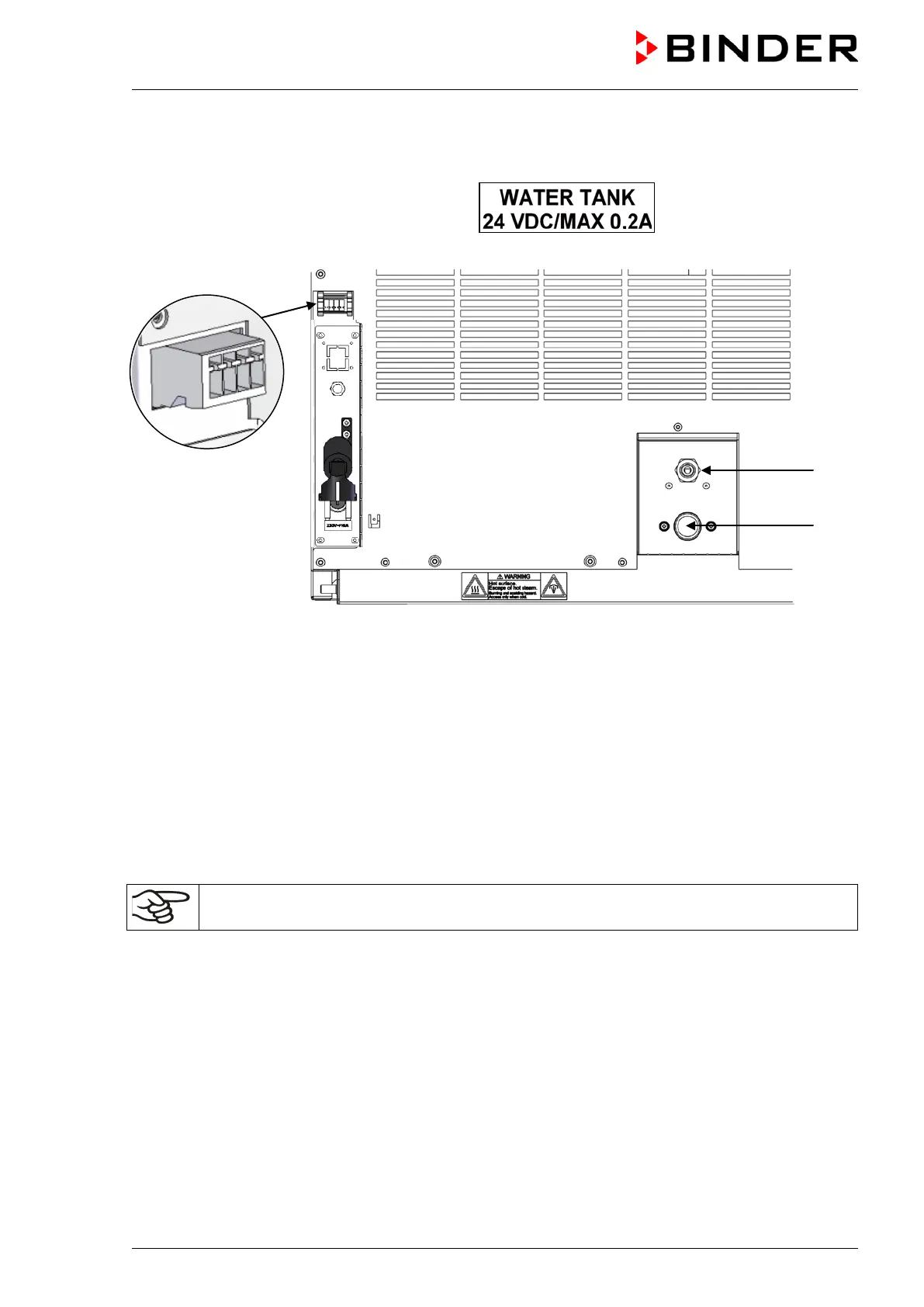

Figure 38: Connections at the chamber rear
(3) Hose connections
Plug the freshwater hose into the hose connection (16) above the freshwater can and secure it with
a hose clamp. You can use a part of the standard supplied water hose.
Screw the hose nozzle (brass) to the free edge of the hose and screw it directly onto the freshwater
connection “IN” (13) at the rear of the chamber.
When the freshwater can is empty, the message Freshwater supply will be displayed on the controller
(chap. 12.1.4), the buzzer sounds, and the humidification module turns off. After acknowledging the alarm,
the humidification module tries to fill up and start operating.
To guarantee humidification during 24 hours even at high humidity set-points with manual wa-
ter supply, we recommend filling the freshwater can (option) at the end of each day.
