2.2 Fuse Requirements
An AC input fuse is necessary when powering the instrument. The below table shows the fuse required
for all models.
Model Fuse Specication
9140 3.15 AT, 250 V
9141 3.15 AT, 250 V
2.3 Check or Replace Fuse
For safety, no power should be applied to the instrument while changing line voltage
operation. Disconnect all cables connected to the instrument before proceeding.
– Locate the fuse box next to the AC input connector in the rear panel. (See gure 1.5)
– Insert a small athead screwdriver into the fuse box slit to pull and slide out the fuse box as indicated
below.
– Check and replace fuse if necessary. (See gure 2.1)

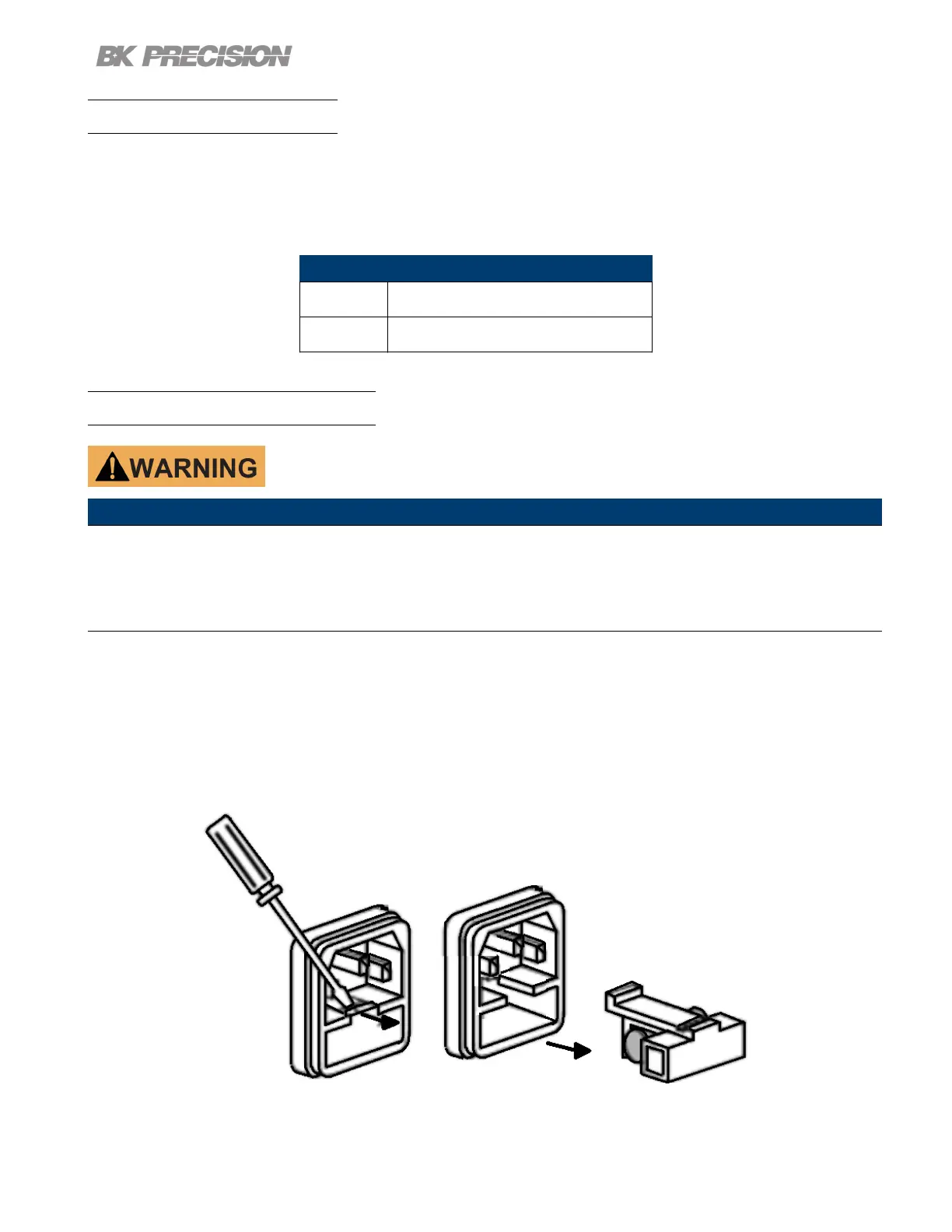

Figure 2.1 Fuse Removal
