BK Precision 9140 Series User Manual

Output Conguration 36
4.3.2 Series Mode
Set operation mode to Series.
Series mode changes the UI to accurately represent the possible outputs congurations.
Series mode does not internally wire the outputs. The outputs must be connected externally to increase
the available voltage range.
Press the button then use the soft key to select Output Cong > Op. Mode/Coupling > Operation
Mode > Series.

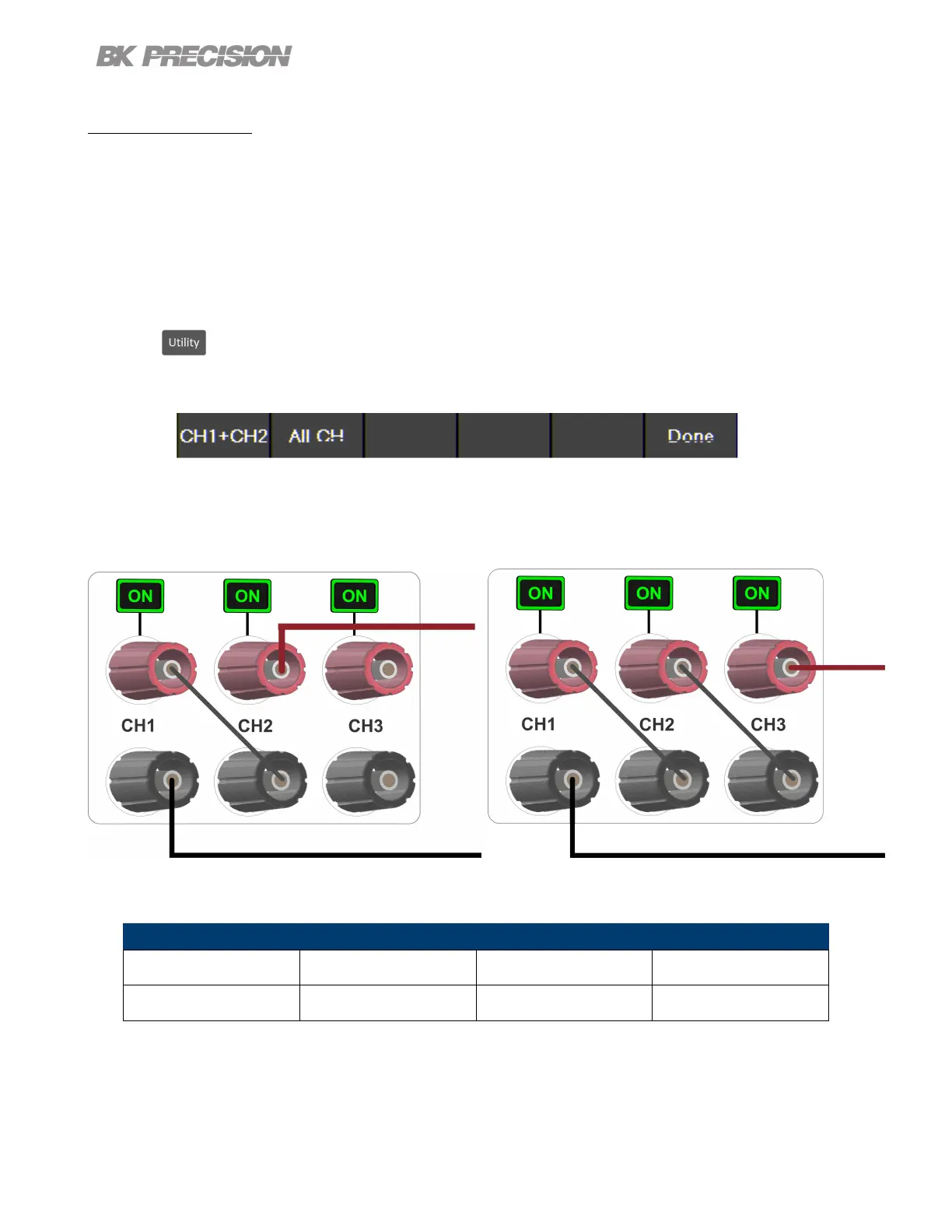

The image below illustrates the external wiring required to connect all channels in series. If CH1+ CH2
is chosen CH2’s positive terminal does not connect to CH3’s negative terminal.
Series CH1+2 Series All
9140 9141
CH1 + CH2 All CHs CH1 + CH2 All CHs
64 V 96 V 120 V 180 V
