Output Conguration 43
Parallel All
Operation mode will be updated based on selected mode. Coupling is not available.

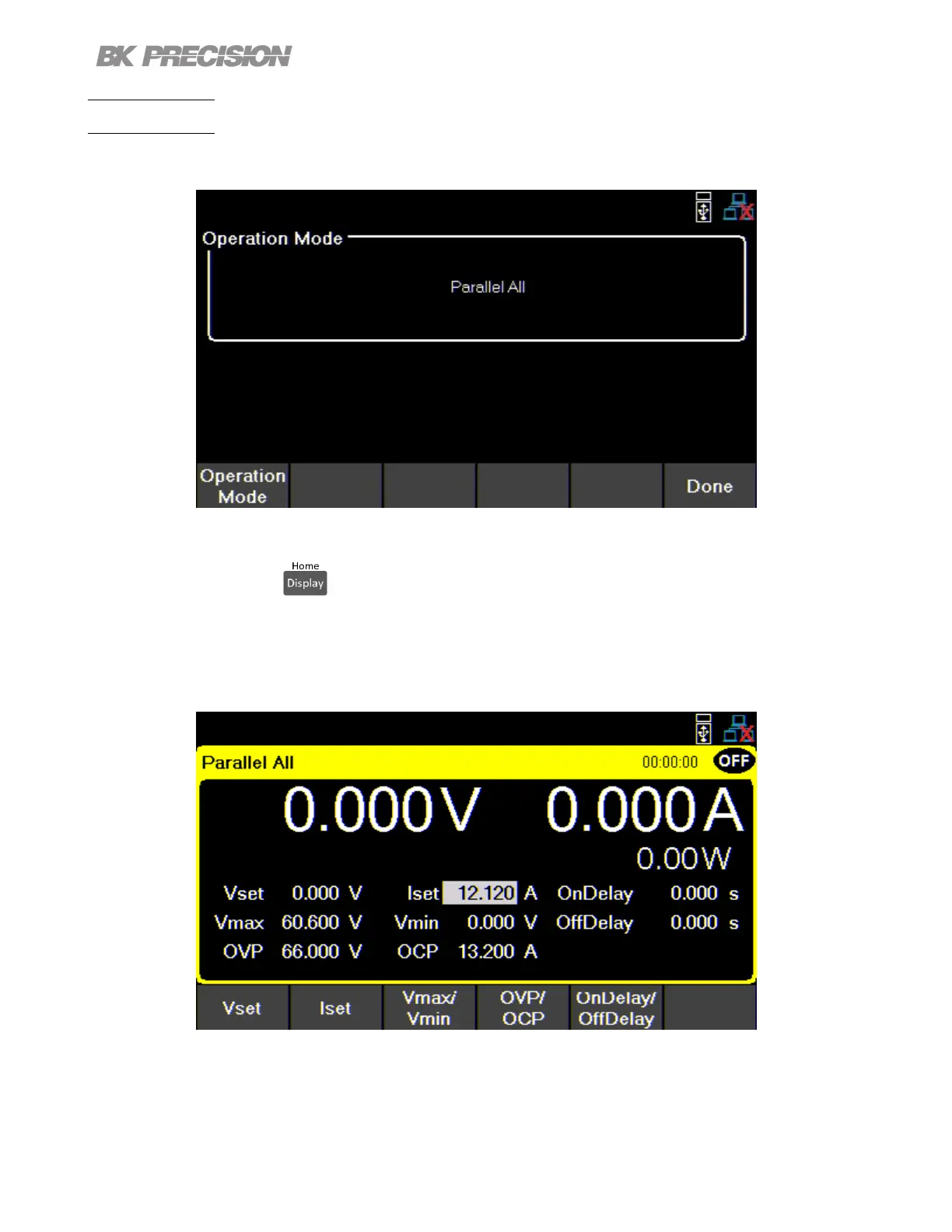

Figure 4.15 Parallel All Operation Mode
In Parallel All Mode the button will only toggle between the Parallel All display and live output
monitoring.
Parallel All CH display will adjust to allow value conguration of .045 to 24 A for model 9140 and .045 A
to 12 A for model 9141.
Figure 4.16 Parallel All Main Page
Protection Setting menu will also adjust the congurable values.
