Basic Front Panel Operation 24

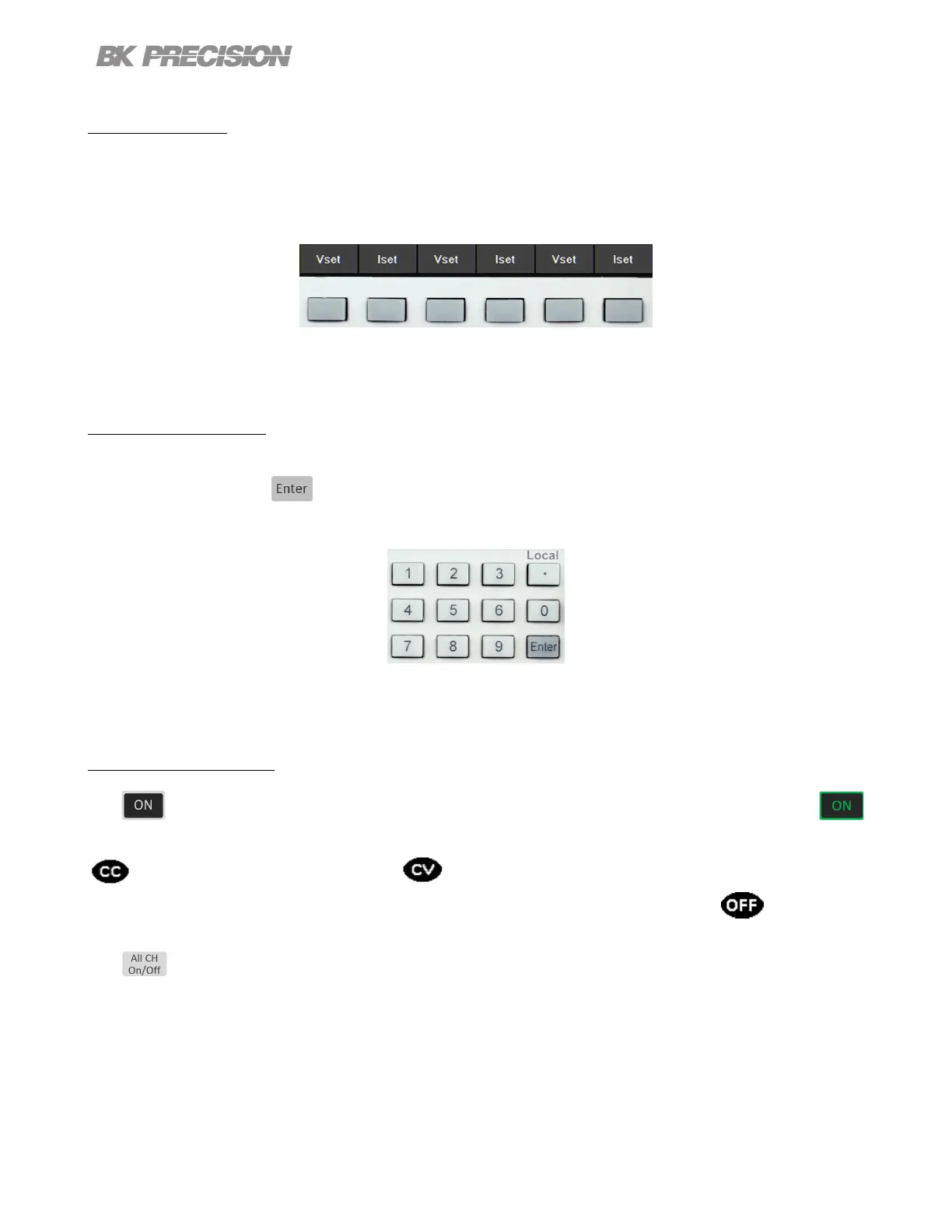

3.1.2 Soft Keys
The unit has six soft keys, which are located beneath the screen. Each key selects the corresponding
function. Functions will vary depending on the current menu or display.
Figure 3.1 Soft Keys
3.1.3 Numeric Keys
The numeric keys allow the conguration of various parameters. Using the numeric keys provides a fast
and precise input. The key can be found with the numeric keys. Pressing enter will assign the
selected value to the desired parameter.
Figure 3.2 Numeric Keys
3.1.4 Output Control
The button toggles the output On/O. When output is enabled, the ON button will turn green
and the supply will display the state of the channel.
represents constant current mode. represents constant voltage mode. This is indicated for
each channel independently. When output is disabled, the channel state will display .
The key toggles all the channels On/O simultaneously. Its function may vary depending on the
coupling state of the channels. For more information go to Coupling.
